Actuator line URANS-to-LES comparison of single and tandem floating offshore wind turbines

The motion of floating offshore wind turbine platforms strongly affects wake development, influencing energy production, farm layout, and turbine loads. Unlike fixed-bottom turbines, floating turbine wake interactions are less understood and require high-fidelity modelling. This study investigates the wake dynamics of a single floating wind turbine subjected to surge and pitch motions using an actuator line model. Moreover, the impact on the loads of a downstream turbine operating in the wake of an upstream floating turbine is assessed. A methodological comparison between unsteady Reynolds-averaged Navier–Stokes (URANS) and large-eddy simulation (LES) with laminar and turbulent inflow is performed to isolate the effects of platform motion and inflow turbulence on wake dynamics and to assess URANS' capability in capturing floating turbine wakes. Single floating turbine results are validated against experimental load and wake data. Wake validation shows that LES with turbulent inflow best captures turbulence intensity distribution, while URANS reproduces mean velocity profiles accurately, especially in the near wake. Platform motion enhances wake recovery under laminar inflow, whereas under turbulent inflow, the wake recovers faster and the effect of motion is reduced; URANS shows slower far-wake recovery compared to turbulent LES. Analysis of platform-motion-induced wake oscillations indicates that turbulent LES accurately reproduces amplitudes, while the standard URANS setup adopted in this study underestimates them, and laminar inflow LES is inadequate. No significant differences are observed between surge and pitch cases. Wake meandering is found to be primarily driven by turbulent inflow rather than platform motion: turbulent LES captures wake displacement at a characteristic frequency, whereas URANS fails to reproduce it. The impact on a downstream turbine 5 D away is finally assessed and reveals that URANS underestimates both the mean and the amplitudes of the loads. Blade distributed load analysis shows that URANS captures platform-motion-induced variability but misses turbulence-driven effects downstream. In conclusion, this study provides a detailed characterization of floating turbine wake dynamics; highlights differences in LES and URANS accuracy; and demonstrates that LES yields more reliable predictions of downstream turbine loads, essential for structural assessment within wind farms.

1 Introduction

The rapid expansion of offshore wind energy has driven the industry to explore locations farther from shore, aiming to harness the great potential of stronger and more uniform winds. Therefore, deeper waters require the use of the most suitable floating offshore wind turbines (FOWTs). Unlike fixed-bottom turbines, however, FOWTs are free to move according to 6 degrees of freedom; namely, they are influenced by the combined effects of wind, waves, and currents. The motion of floating platforms influences the development of wake structures, suggesting that wake interactions within floating wind farms may differ significantly from those in conventional fixed-bottom installations. Consequently, investigating these interactions is crucial, as they have a direct impact on overall energy production, optimal farm layout, and turbine longevity due to structural fatigue. While wake interactions among traditional fixed-bottom turbines have been widely studied, those involving floating wind turbines remain less explored and not yet fully understood, partly due to their greater complexity.

The dynamic behaviour of floating wind turbines is particularly complex due to phenomena such as unsteady aerodynamics, which can influence turbine loading at specific reduced frequencies of platform motion (Schulz et al., 2024; Sanvito et al., 2024b). An additional layer of complexity in wake dynamics is introduced by modern active dynamic control strategies, such as dynamic induction control (DIC) and dynamic individual pitch control (DIPC). In the case of floating turbines, ongoing research is examining how these time-varying control strategies affect platform motion and, consequently, wake evolution (Berg et al., 2022; van den Berg et al., 2023).

In parallel, several aspects of wake dynamics remain open research questions. A key example is the potential influence of platform motion on wake-meandering mechanisms. Li et al. (2022) showed that side-to-side platform motion can induce wake meandering under low-inflow-turbulence conditions. Messmer et al. (2024a) experimentally demonstrated that a platform movement aligned with the wind direction (surge motion) can affect wake meandering in laminar inflow. Varying the reduced frequency of platform motion can generate different coherent structures in the wake, with some regimes dominated by surge-induced effects and others by meandering behaviour. These wake mechanisms, however, remain strongly influenced by the turbulent characteristics of the inflow. Inflow turbulence can affect wake evolution by limiting oscillations induced by platform motion and by altering wake recovery, making the study of the interplay between inflow turbulence and motion-induced coherent structures fundamentally important. Notable contributions on this topic include the experimental campaigns of Messmer et al. (2024b, 2025) and the high-fidelity numerical studies by Pagamonci et al. (2025), Li et al. (2024), and Mian et al. (2025). Beyond these aspects, it is also crucial to assess the combined impact of inflow turbulence and platform motion on wake behaviour under more realistic atmospheric conditions, specifically in the presence of an atmospheric boundary layer, as investigated experimentally by Hubert et al. (2025) and numerically by Liu et al. (2025).

Altogether, these findings highlight how platform motion can influence wake dynamics and contribute to wake re-energization, ultimately affecting the power production of downstream turbines. Capturing these complex phenomena requires the use of high-fidelity modelling techniques, particularly when analysing interactions between floating wind turbines.

Only in recent years have wake interactions in floating wind turbines become the focus of dedicated research. Within the field of unsteady Reynolds-averaged Navier–Stokes (URANS) computational fluid dynamics (CFD) simulations, Rezaeiha and Micallef (2021) employed an actuator disc model to study the effect of upstream turbine surge motion on its interaction with a downstream turbine. While this approach provides a computationally efficient tool to explore motion-induced wake behaviour, the simplification of the rotor as a disc significantly limits the ability to capture detailed wake dynamics, including wake recovery and the dominant flow frequencies in the mid- and far-wake regions.

To address these limitations, the use of an actuator line model (ALM) is essential, as it enables the resolution of the vortex structures generated by the turbine discrete blades. In this context, Arabgolarcheh et al. (2023b) and Arabgolarcheh et al. (2023a) adopted an ALM coupled with URANS simulations to investigate wake interactions between two floating turbines in a tandem configuration. However, for a more accurate representation of inflow turbulence, motion-induced wake features, and their impact on downstream turbine loading, higher-fidelity approaches such as large-eddy simulations (LESs) are crucial. Research on the interaction between floating turbines using LES remains limited in the literature. A notable contribution is the work of Li et al. (2025), where LES–ALM simulations were used to explore wake dynamics in tandem turbines subjected to various combinations of surge motion.

The present study contributes to the existing literature by employing a high-fidelity LES–ALM approach to investigate the wake behaviour of a single floating wind turbine and the interaction between two turbines when the upstream one undergoes platform motion. As a novel aspect of this work, the upstream turbine is subjected not only to surge motion but also to pitch motion, allowing a comparative assessment of the effects of different platform motions on wake structures and, consequently, on the aerodynamic loading of a downstream turbine. The paper pursues two main objectives:

• First, a methodological comparison across numerical approaches with different levels of fidelity is conducted. Specifically, URANS and LESs with turbulent inflow are compared. The objective is to assess whether a standard URANS approach, relying on a turbulence model widely used in engineering applications, is capable of capturing complex wake dynamics and the resulting loads on the downstream turbine. A second level of comparison involves LESs with laminar inflow and LESs with turbulent inflow, with the aim of isolating and characterizing the influence of inflow turbulence intensity (TI) on wake development and evolution.

• Second, the numerical results are validated against wind tunnel experimental data. The numerical simulations are specifically designed to replicate selected experimental cases, enabling the validation of both aerodynamic loads and wake characteristics of a single floating wind turbine. The reference experiments were conducted in the wind tunnel at Politecnico di Milano within the framework of the NETTUNO research project (NETTUNO Research Project, 2023; Fontanella et al., 2025).

Part of the current research effort is focused on assessing whether the numerical models traditionally adopted for fixed-bottom applications are sufficiently accurate to capture the dynamic behaviour of floating wind turbines as well. For instance, in the work by Cioni et al. (2025), several multi-fidelity approaches were compared to evaluate their ability to reproduce the wake dynamics of floating turbines subjected to imposed motions. Within this framework, the present paper contributes to assessing the capabilities and limitations of different numerical approaches, while the overall set of simulations provides insight into the physical mechanisms governing wake dynamics. The comparison with experimental measurements ensures the credibility of the numerical results and significantly enhances the value of the methodological analysis. Although only a limited number of platform motion cases are considered, the comprehensive set of numerical simulations provides valuable insight into the effects of platform motion and inflow turbulence on key wake phenomena, such as wake recovery, dynamic structures, and wake meandering, within the operating conditions investigated in this study.

The paper is divided into two main parts. The first part aims at a detailed characterization of the wake generated by a single floating upstream turbine, focusing on mean wake deficit, turbulence intensity, wake fluctuations induced by platform motion, wake recovery, and wake meandering. Throughout all the analyses, a methodological comparison among the different multi-fidelity numerical approaches is systematically performed, and, where possible, validation against experimental data is carried out in order to further strengthen the contribution of the analysis. Once the single-wake behaviour has been characterized, a second turbine is introduced downstream. The aerodynamic loading acting on the downstream turbine is then analysed in terms of both mean values and fluctuations, again providing a comparison among the different multi-fidelity modelling approaches.

More specifically, the paper is structured as follows. Section 2 outlines the case study, providing key information about the turbine geometry as well as the tested and simulated cases. Section 3 introduces the numerical model with subsections covering the ALM code structure, the CFD setup, and the numerical approach. Section 4 presents the validation of single floating turbine loads against experimental measurements. Section 5 delivers a comprehensive analysis of the wake shed by the single floating turbine, addressing mean velocity profiles, turbulence intensity, wake recovery, the propagation of wake-induced oscillations, and wake meandering. Section 6 discusses the results of the double-turbine configuration, with emphasis on the loads acting on both turbines, considering mean values, platform-motion-induced oscillations, and overall variations. Concluding considerations are presented in the final section, focusing on the methodological comparison of the different numerical models in estimating both the single-wake behaviour and the aerodynamic loads on the downstream turbine under the analysed operating conditions.

2 Case study

2.1 Turbine and test facility

Numerical simulations were set up to replicate an experimental campaign to validate the loads and wake characteristics of the single floating wind turbine. Specifically, the experimental data were obtained within the framework of the NETTUNO project, carried out in the large-scale wind tunnel at Politecnico di Milano (NETTUNO Research Project, 2023; Fontanella et al., 2025). The experimental wind turbine is a 1:75 downscaled model of the DTU 10 MW reference turbine (Bak et al., 2013), with its relevant geometric features listed in Table 1.

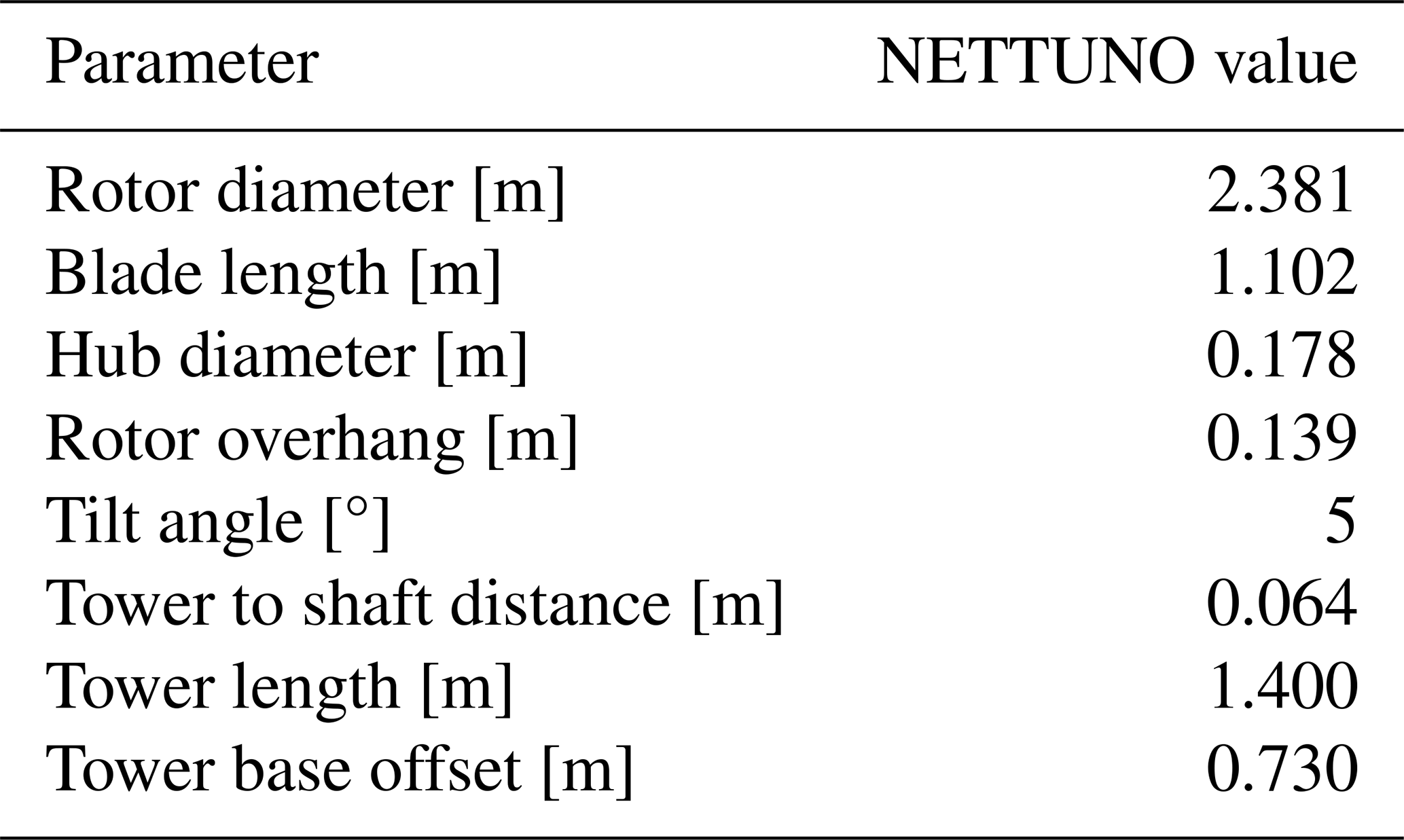

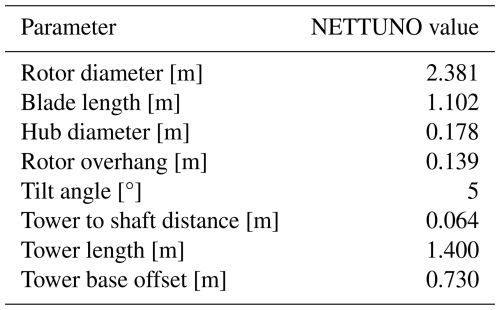

Table 1 Geometry of the wind turbine used in the experiment (Fontanella et al., 2025).

The rotor blades were specifically designed to achieve a similar thrust coefficient of the full-scale DTU 10 MW turbine. The blades employ the low-Reynolds-number airfoil SD7032, with modifications to chord length and twist profile to reach the targeted thrust coefficient (Bayati et al., 2017). Wind speed was scaled by a factor of 1:3 while preserving the original tip-speed ratio of the full-size machine. During the tests the tower was tilted by 5°, ensuring that the rotor plane was perpendicular to the incoming flow. The test turbine was mounted on a 6-degree-of-freedom robotic platform capable of replicating the rigid-body motions typical of floating wind turbine foundations.

The wind tunnel features a test section measuring 13.84 m in width and 3.84 m in height with an overall length of 35 m, resulting in a geometric blockage of about 8 %. The experiments were conducted under a uniform free-stream velocity of 4 m s⁻¹, with an inflow turbulence intensity of approximately 1.5 % and an air density of ρ=1.18 kg m⁻³.

2.2 Load cases

This study presents a series of simulations in different operational scenarios, including both fixed-bottom and floating wind turbine configurations, to validate the numerical results. Three primary cases are considered: a fixed-bottom reference, a platform undergoing surge motion, and a platform undergoing pitch motion. All experiments and simulations were carried out with a constant rotor angular speed of Ω=240 rpm, representative of rated operating conditions, corresponding to a tip-speed ratio $\text{TSR}=\frac{\mathrm{\Omega }R}{U_{\mathrm{0}}}=\mathrm{7.5}$, with a wind speed U₀=4 m s⁻¹.

The time-varying surge displacement x and pitch angle θ_p are defined in Eqs. (1) and (2):

$$\begin{array}{}\text{(1)}& {\displaystyle }x\left(t\right)=A_{\mathrm{s}}\sin (\mathrm{2}\mathit{\pi }{f}_{\mathrm{s}}t+{\mathit{\varphi }}_{\mathrm{s}}),\text{(2)}& {\displaystyle }{\mathit{\theta }}_{\mathrm{p}}\left(t\right)=A_{\mathrm{p}}\sin (\mathrm{2}\mathit{\pi }{f}_{\mathrm{p}}t+{\mathit{\varphi }}_{\mathrm{p}}),\end{array}$$

where $A_{\mathrm{s}/\mathrm{p}}$ represent the amplitudes and $f_{\mathrm{s}/\mathrm{p}}$ the frequencies of the surge and pitch motions, respectively. The phase shift ϕ accounts for the motion lag and, in the cases considered, is set to zero to initiate the platform motion in the leeward direction. The instantaneous velocity of the platform due to these prescribed motions is obtained by differentiating the displacement expressions. A key aspect of floating turbine dynamics is the apparent wind, which refers to the relative wind speed experienced by the rotor due to platform movement. The resulting variations in apparent wind speed at hub height reach a maximum excursion of $\pm \mathrm{0.2}\mathrm{m}{\mathrm{s}}^{-\mathrm{1}}$ in both the surge and the pitch cases, namely ±5 % of the mean wind speed. The platform displacement and the corresponding apparent wind velocity are shown in Fig. 1 as a function of one platform motion. Details of the amplitudes and frequencies used for the imposed platform motions are summarized in Table 2.

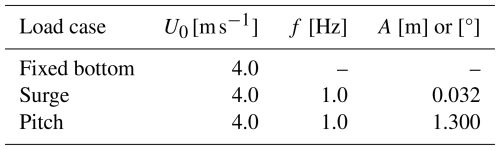

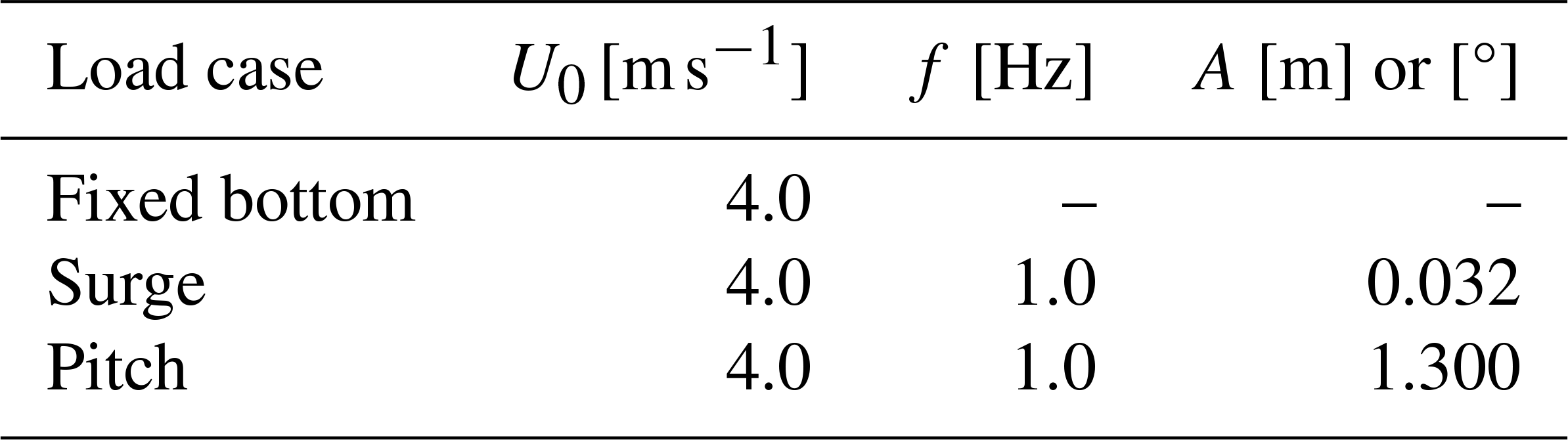

Table 2 Load cases.

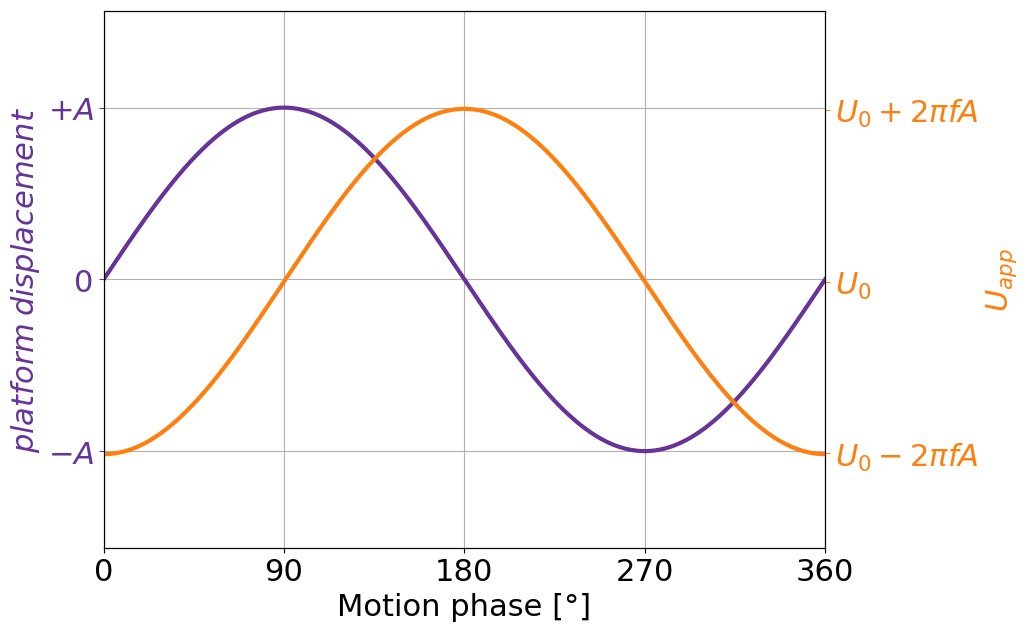

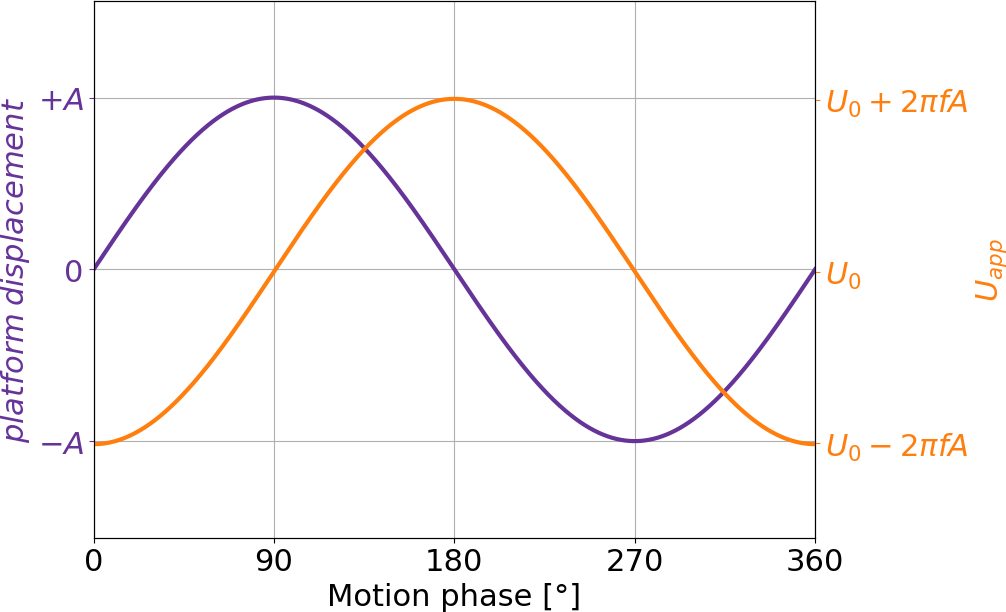

Figure 1 Platform displacement and apparent wind speed.

3 Computational approach

3.1 Actuator line model

All numerical simulations are carried out using an in-house actuator line model algorithm, developed and implemented within the OpenFOAM CFD framework and previously validated in the URANS formulation in Sanvito et al. (2024a). The simulation focuses exclusively on the three rotor blades, which are modelled as actuator lines comprising 75 actuator points where aerodynamic forces are applied. Figure 2 illustrates the flowchart of the methodology employed by the coupled CFD–ALM solver.

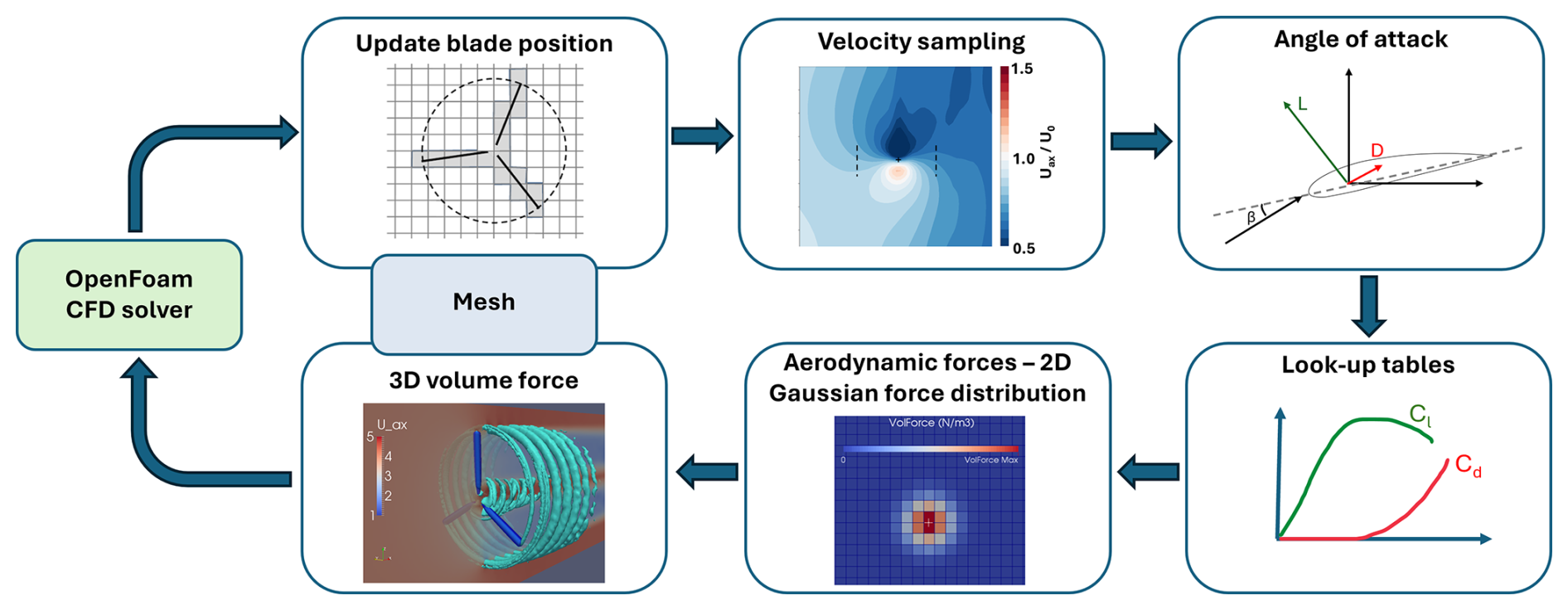

Figure 2 CFD–ALM algorithm flowchart.

The CFD module resolves the flow field, while rotor aerodynamics is modelled using blade element momentum (BEM) theory. To accurately determine the axial and tangential components of the absolute velocity at each actuator point, this work adopts a custom velocity sampling method, called a vortex-based sampling strategy, which was developed by the same authors (Sanvito et al., 2024a). Simple velocity extraction from the flow field is insufficient due to the influence of induction velocities caused by the vorticity generated by the applied forces. To overcome this, the adopted methodology analytically calculates the induced velocity resulting from the bound vorticity associated with lift forces, using the Biot–Savart law. These induced components are subtracted from the sampled velocity to obtain a corrected velocity, which is then used to compute the angle of attack (AoA). The AoA is then used to compute the force coefficients from pre-tabulated aerodynamic polars, available for different Reynolds numbers and provided as input to the model. To ensure numerical stability, the point forces calculated at each actuator point are distributed over the surrounding mesh cells using a 2 D axisymmetric Gaussian smearing function. In this study, the regularization kernel has a width equal to twice the local rotor cell size. Given that the CFD–ALM approach resolves the blade tip vortices directly, no empirical correction models (such as Prandtl's tip loss correction) are required to account for tip-vortex-induced drag. However, the model does not inherently capture the reduction in aerodynamic forces due to pressure equalization near the blade tip. While such secondary effects can be addressed through ad hoc corrections, as suggested in Meyer Forsting et al. (2019), this aspect is not considered in the present work. Dynamic corrections of the aerodynamic polars are also excluded from this study. A prior analysis by Bergua et al. (2023) showed that under the examined operating conditions, hysteresis effects are negligible since the AoA remains within the linear region of the polar curves.

Although the in-house ALM algorithm supports time-dependent control inputs (such as variable blade pitch and rotor speed) to simulate wind turbine control systems, these capabilities are disabled in this work, as all simulations are performed without control and at a fixed rotational speed. The model configuration used here is consistent with that validated for similar load cases in Sanvito et al. (2024a).

To simulate the unsteady aerodynamics of floating offshore wind turbines, prescribed platform motions, as detailed in Table 2, are integrated into the CFD–ALM framework. The positions of actuator points are updated at each time step to reflect the instantaneous blade position, and their velocities are corrected accordingly using rigid-body kinematics.

3.2 Computational setup

The numerical domain is configured to replicate the geometry of the wind tunnel used in the experimental campaign. To account for the blockage caused by the boundary layer, the domain height is reduced by the boundary layer displacement thickness, ensuring the same mass flow rate and slip boundary conditions are applied to the wind tunnel walls, as done in Mancini et al. (2020). No alterations are made to the side walls, as their contribution to blockage is negligible; slip conditions are likewise applied. At the outlet, atmospheric pressure is imposed, while the inlet is prescribed with a Dirichlet boundary condition corresponding to a uniform free-stream velocity for the URANS and laminar LES calculations. For the turbulent LES case, inflow turbulence is introduced using a synthetic turbulence generator to better reproduce experimental conditions. Specifically, the SynInflow tool (SynInflow, 2022) is employed, as it offers fine control over turbulence intensity and integral length scales, enabling accurate replication of experimental inflow characteristics while minimizing spurious pressure fluctuations. To counteract the numerical decay of turbulence along the domain, the input parameters for SynInflow are carefully tuned to ensure that both the turbulence intensity and the energy spectrum match experimental turbulence statistics immediately upstream of the turbine location. A comparison between the simulated and experimental inflow turbulence is provided in Appendix A.

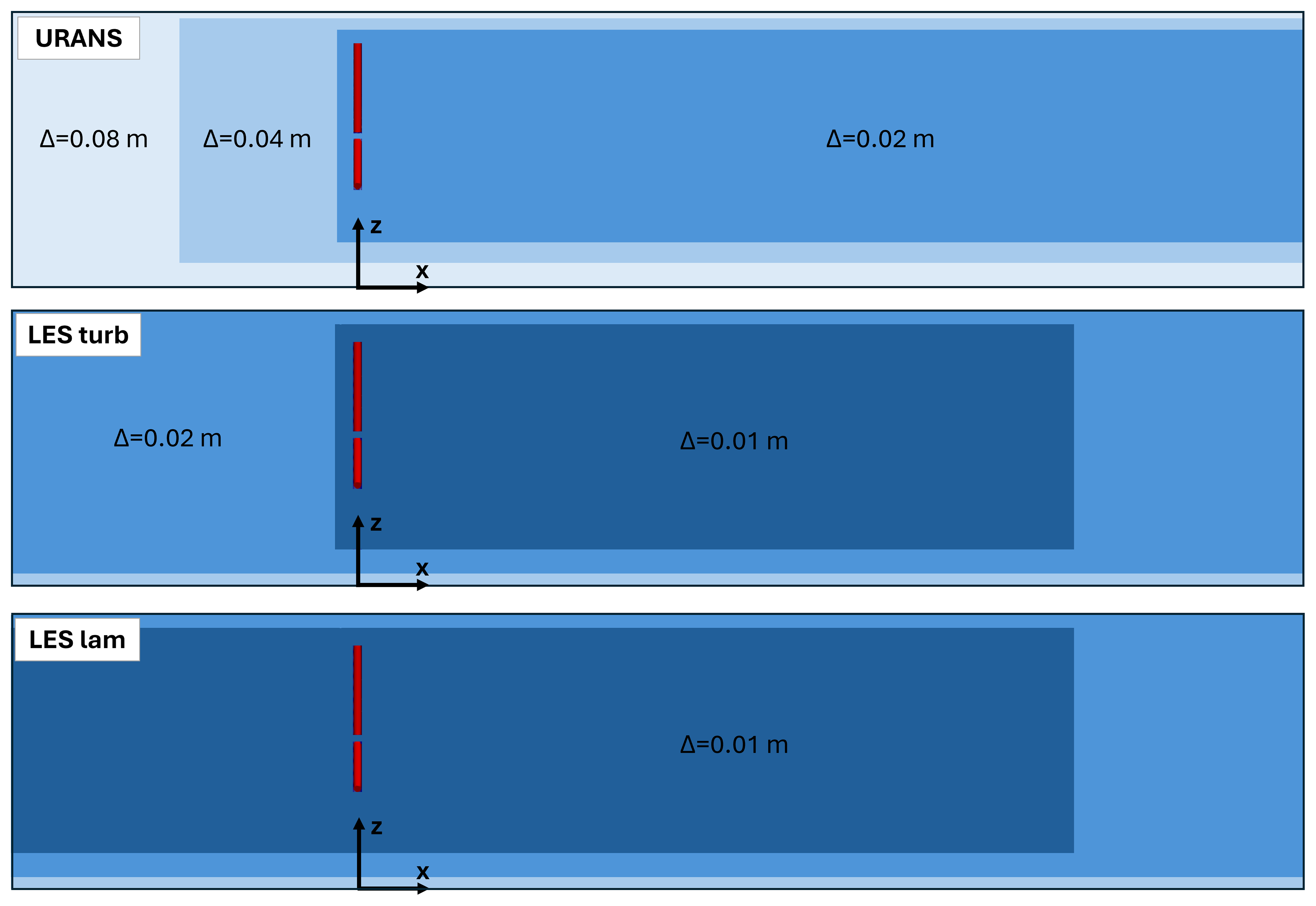

Figure 3 Zoomed-in view of the refinement around the rotor region for URANS and turbulent and laminar LES.

Due to the different characteristics of the turbulent approaches considered, different mesh resolutions are employed, namely a coarser mesh for the URANS simulation and a refined mesh for the LES cases. For the URANS simulation, a structured Cartesian mesh is adopted, consisting of approximately 20 million hexahedral cells. A grid sensitivity analysis, documented in Sanvito et al. (2024a), was performed to assess mesh independence. In the rotor region, a characteristic cell size of Δ=0.02 m was imposed through the superposition of two cylindrical refinement zones. An additional verification of the wake resolution was carried out by considering a mesh with a characteristic cell size reduced by 25 %, confirming that the results are grid independent. Therefore, the mesh with Δ=0.02 m was selected. A zoomed-in view of the rotor region on the vertical plane passing through the rotor hub, together with the corresponding cell size, is shown in Fig. 3. The turbulent LES requires a higher resolution to ensure that at least 80 % of the total turbulent kinetic energy (TKE) is resolved. To meet this criterion, a finer background mesh is used, along with two cylindrical refinement zones. The second refinement zone, with Δ=0.02 m, extends up to the domain inlet to mitigate numerical turbulence decay. The final mesh comprises approximately 113.2 million cells, with the most refined region having a characteristic cell size of Δ=0.01 m, corresponding to a non-dimensional resolution of $\frac{R}{\mathrm{\Delta }}=\mathrm{120}$. This level of refinement is consistent with values reported in the literature, such as Nilsson et al. (2015) ($\frac{R}{\mathrm{\Delta }}=\mathrm{122}$) and Churchfield et al. (2017) and Blaylock et al. (2022), who employ $\frac{R}{\mathrm{\Delta }}>\mathrm{100}$. For the laminar LES, the same mesh as the turbulent LES case is used, with the extension of the third refinement region (Δ=0.01 m) to the inlet. This adjustment is introduced to suppress artificial numerical fluctuations at the inflow. As a result, the total cell count increases to approximately 150.9 million cells.

The URANS simulation uses the realizable k–ε turbulence model, while the LES employs the Smagorinsky subgrid-scale model with a constant coefficient C_s=0.168, suitable for the absence of no-slip walls. Both URANS and LES calculations use the PIMPLE algorithm for coupling pressure and velocity fields, as implemented in OpenFOAM. The algorithm is configured with two inner corrector loops to enhance convergence within each time step and two outer loops. Regarding the numerical schemes, second-order Crank–Nicolson time integration is used, with second-order schemes for gradient, divergence, and Laplacian discretization.

The time step is chosen to limit the actuator line tip displacement to about one cell per step, ensuring numerical stability and accurate force application. Consequently, a time step of $\mathrm{\Delta }t=\mathrm{5}\times {\mathrm{10}}^{-\mathrm{4}}\mathrm{s}$ is employed throughout the simulations. Considering the definition of the Courant number $\mathit{Co}=\frac{\left|U\right|\mathrm{\Delta }t}{{\mathrm{\Delta }}_{\mathrm{eff}}}$, where $\left|U\right|$ is the magnitude of the flow velocity in the cell, Δt is the time step, and Δ_eff is the characteristic cell size, the chosen time step results in a maximum Courant number of 0.54.

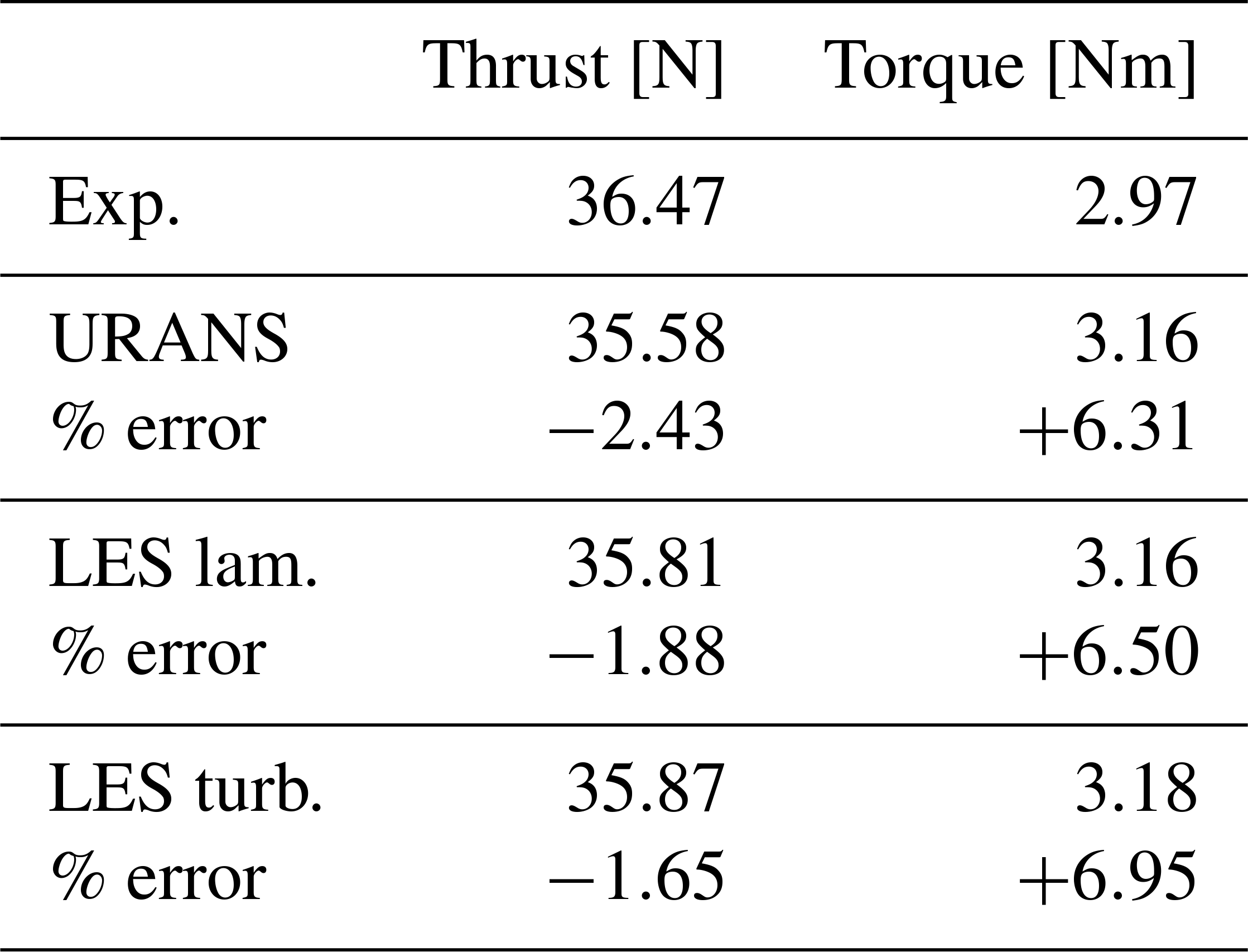

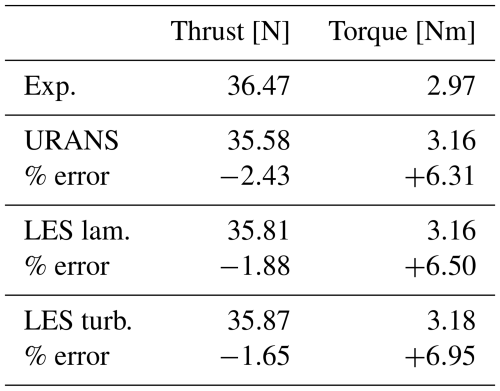

Table 3 Fixed-bottom loads: comparison with experimental data.

4 Single-turbine rotor loads

First, the loads exerted by the machine in the single-turbine configuration across all simulated scenarios are analysed. Table 3 provides a comparison between the three numerical simulations and the experimental data for the fixed-bottom case. In particular, it shows the average values along with the corresponding percentage error relative to the experimental data, according to the definition given in Eq. (3).

$$\begin{array}{}\text{(3)}& \text{err}={\displaystyle \frac{\text{mean(ALM)}-\text{mean(Exp)}}{\text{mean(Exp)}}}\end{array}$$

Overall, the numerical results show good agreement with the experimental data, with a slight underestimation of thrust and an overestimation of torque. In any case, the numerical results are consistent with numerical counterparts, indicating good numerical robustness of the ALM when combined with the different computational approaches.

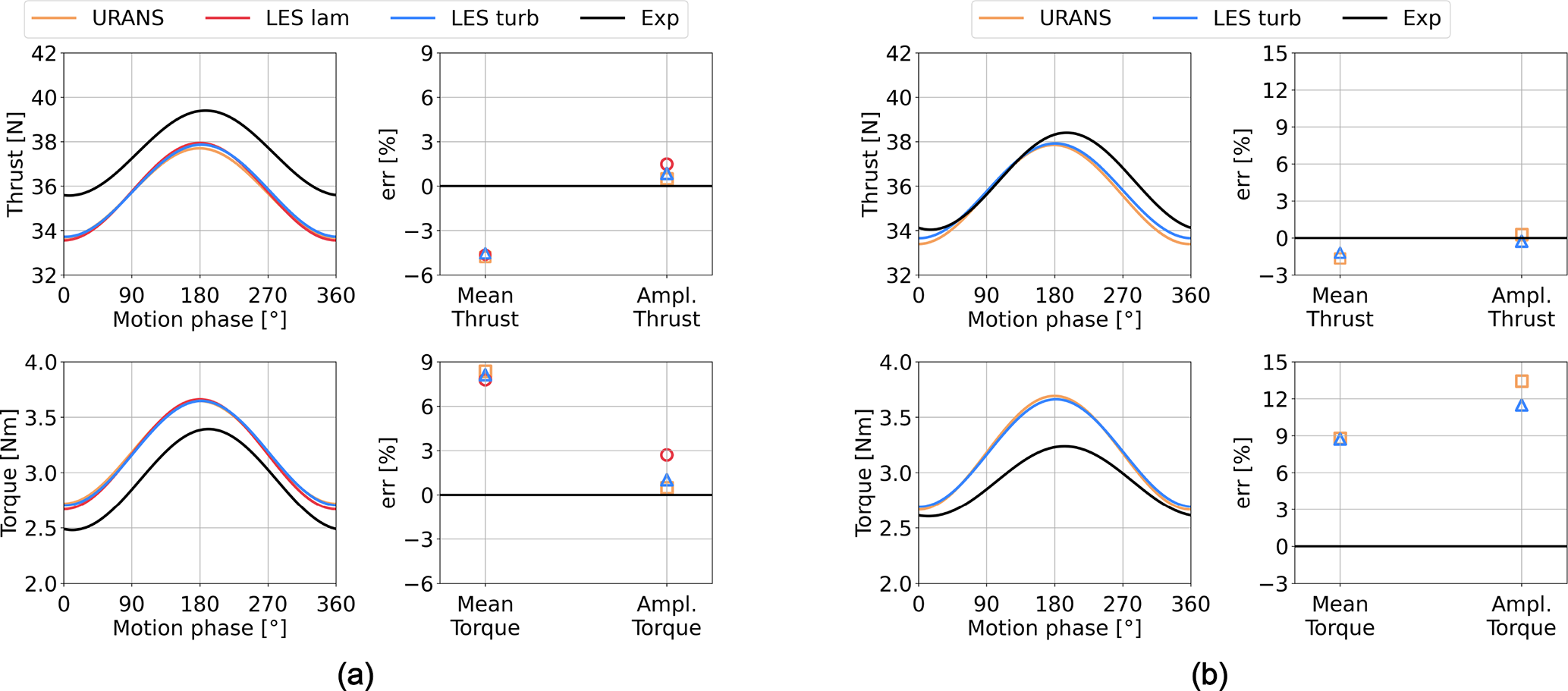

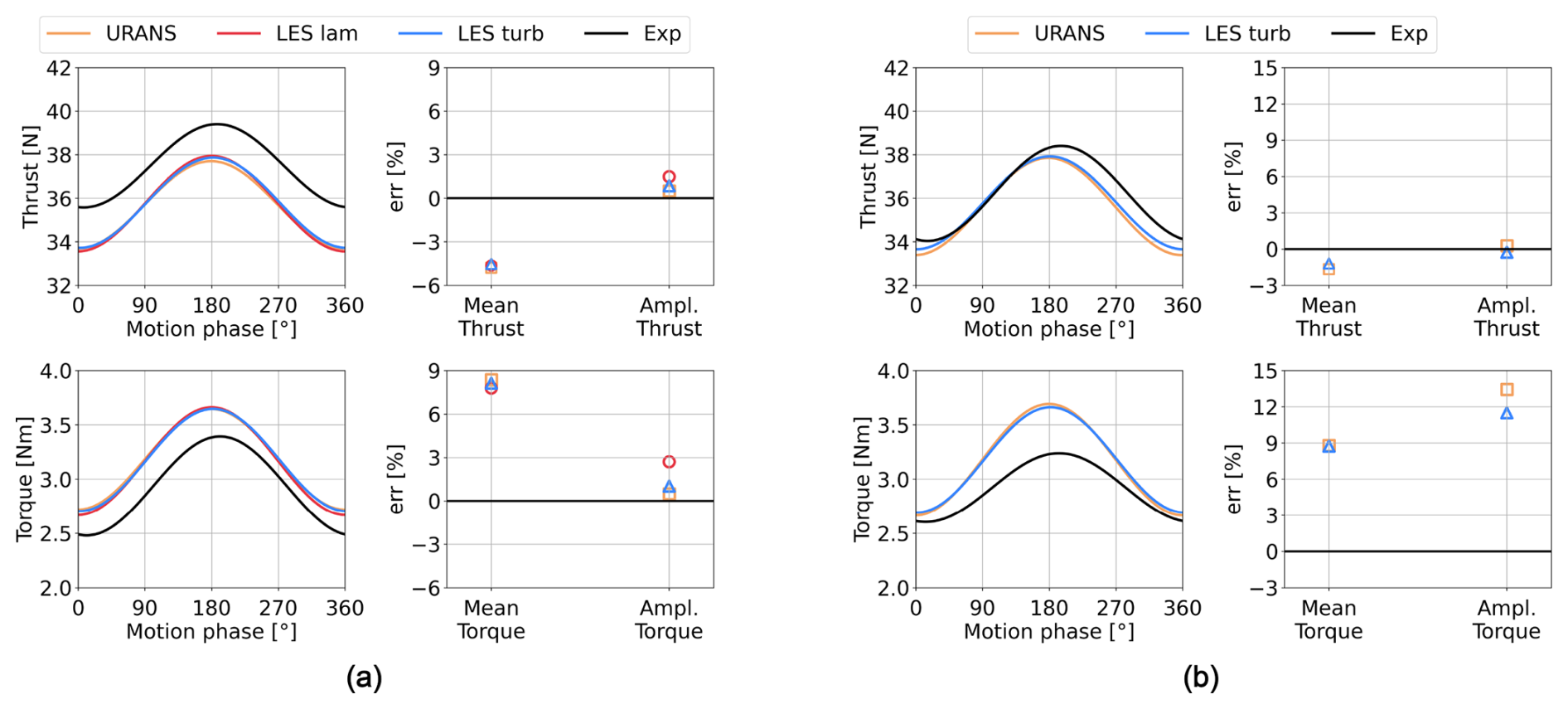

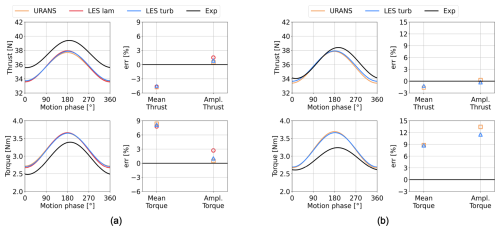

Figure 4 Thrust and torque experimental validation in floating cases. (a) Surge case. (b) Pitch case.

Regarding the floating cases, Fig. 4 shows the loads for the surge case (Fig. 4a) and the pitch case (Fig. 4b). Specifically, for each case the time evolution of the filtered thrust and torque over one platform oscillation period is presented, along with the percentage error on the mean value as defined in Eq. (3) and the percentage error on the oscillation amplitude, defined as in Eq. (4).

$$\begin{array}{}\text{(4)}& \text{err}={\displaystyle \frac{\text{ampl(ALM)}-\text{ampl(Exp)}}{\text{mean(Exp)}}}\end{array}$$

To complete the analysis, Table 4 reports the mean thrust and torque values for surge and pitch.

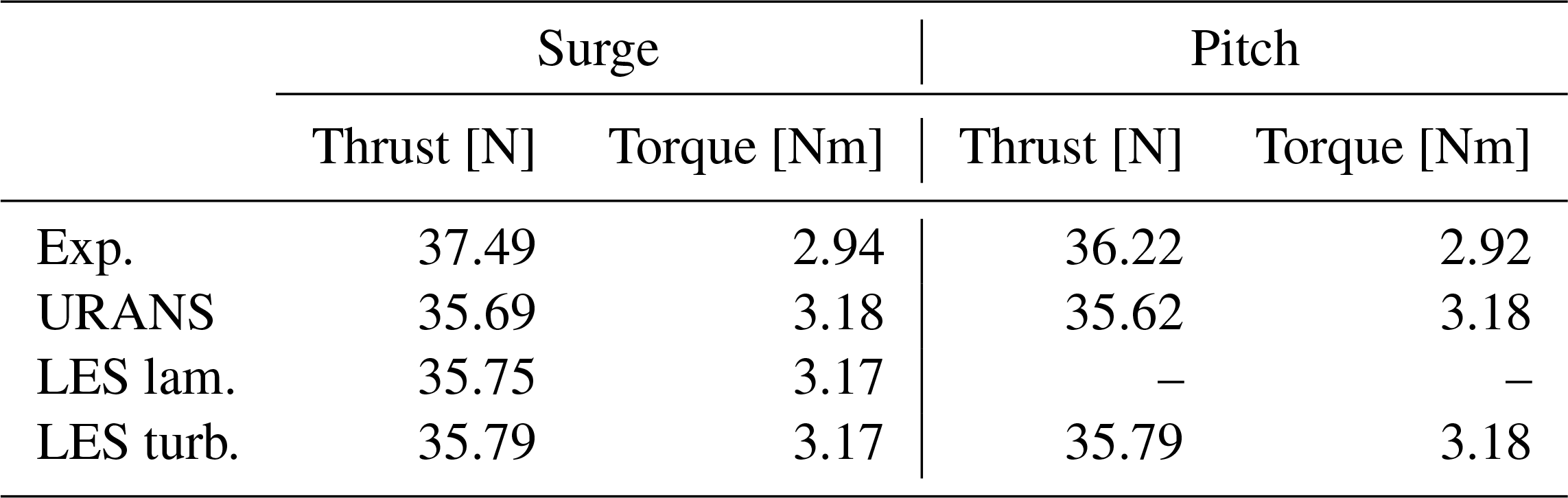

Table 4 Surge and pitch mean loads.

As in the fixed-bottom case, the numerical simulations tend to slightly underestimate the thrust and overestimate the torque. However, the mean thrust and torque values obtained in the pitch case are in very good agreement with the ALM simulations reported in Pagamonci et al. (2025), employing the same motion parameters. Additionally, a variation in the mean values of the experimental data is observed between surge and pitch. In general, differences in the mean values can be attributed to the zero blade-pitch recalibration performed during testing, as noted by Fontanella et al. (2025). Once again, the numerical simulations show excellent consistency with each other in terms of average thrust and torque. As for the amplitude, good agreement with experimental data is achieved, with errors lower than 3 % for the surge thrust and torque and for the pitch thrust. The largest discrepancies are found in the torque amplitude for the pitch case; however, the numerical results appear consistent with the corresponding surge case, where the turbine experiences the same variation in apparent velocity at the hub.

5 Single-turbine wake analysis

This section presents a detailed analysis of the turbine wake in the single-turbine configuration across all case studies. The objective is to provide an in-depth characterization of the wake that impinges on the downstream turbine, in order to better interpret the resulting loads. The simulation dataset, including URANS, laminar LES, and turbulent LES for the fixed-bottom, surge, and pitch cases, serves primarily to distinguish the effects of platform motion from those of the inflow turbulence on wake behaviour and secondarily to assess the accuracy of the numerical modelling approaches employed. The wake is first validated with experimental data in terms of mean velocity profiles, turbulence intensity, and wake recovery. Subsequently, the evolution of wake velocity fluctuations induced by platform motion is analysed to evaluate their impact on the downstream turbine loading. Finally, wake meandering is investigated to determine whether its origin lies primarily in turbulent inflow instabilities or is also significantly influenced by platform dynamics.

To this end, the following sections analyse various flow quantities sampled along selected lines positioned in the wake. Specifically, horizontal lines located at hub height and placed at downstream distances of 2 D, 3 D, 4 D, and 5 D are used, as well as vertical lines aligned with the rotor axis at 3 D and 5 D. The computational domain, actuator lines, and wake sampling lines are illustrated in Fig. 5.

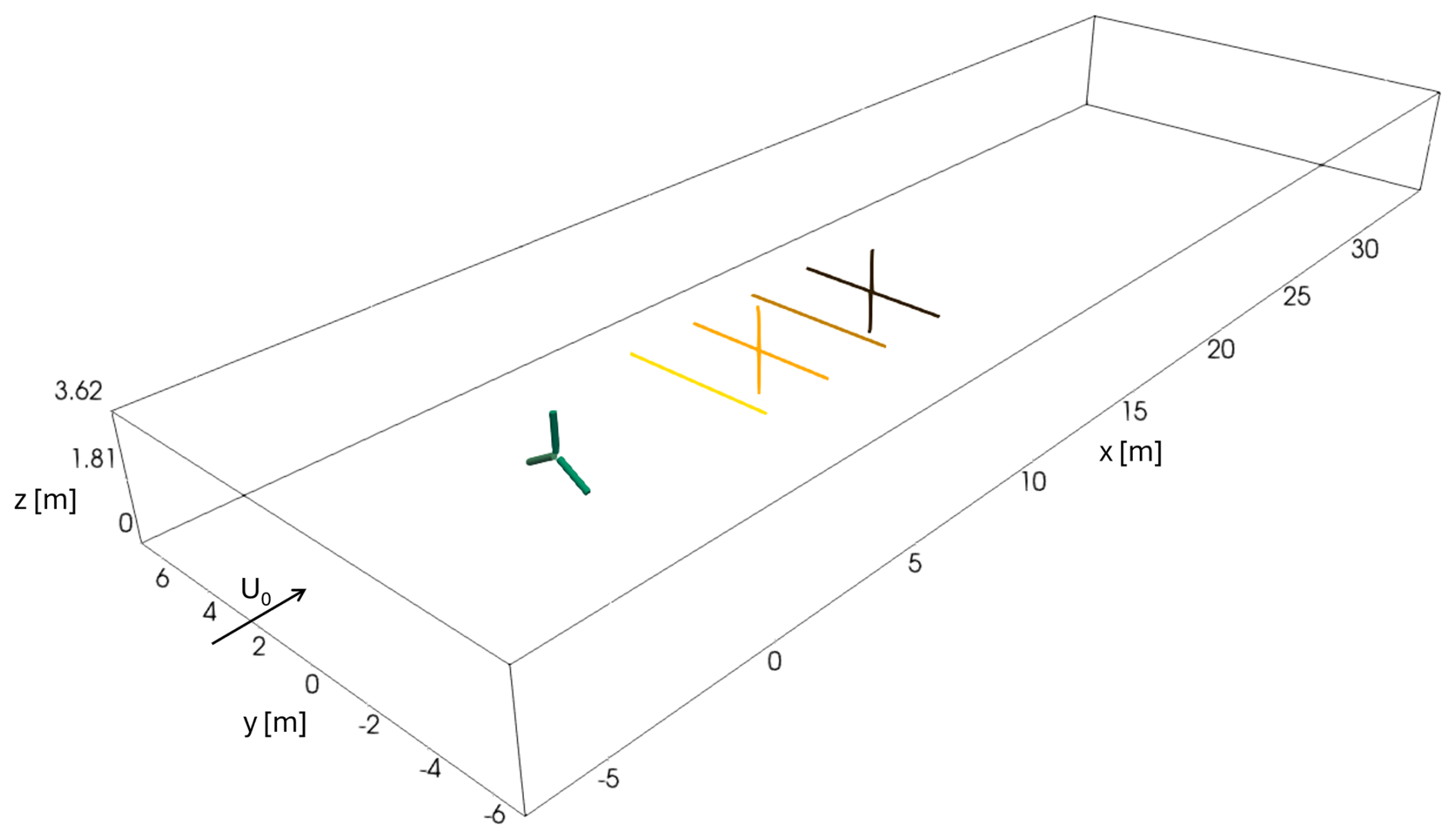

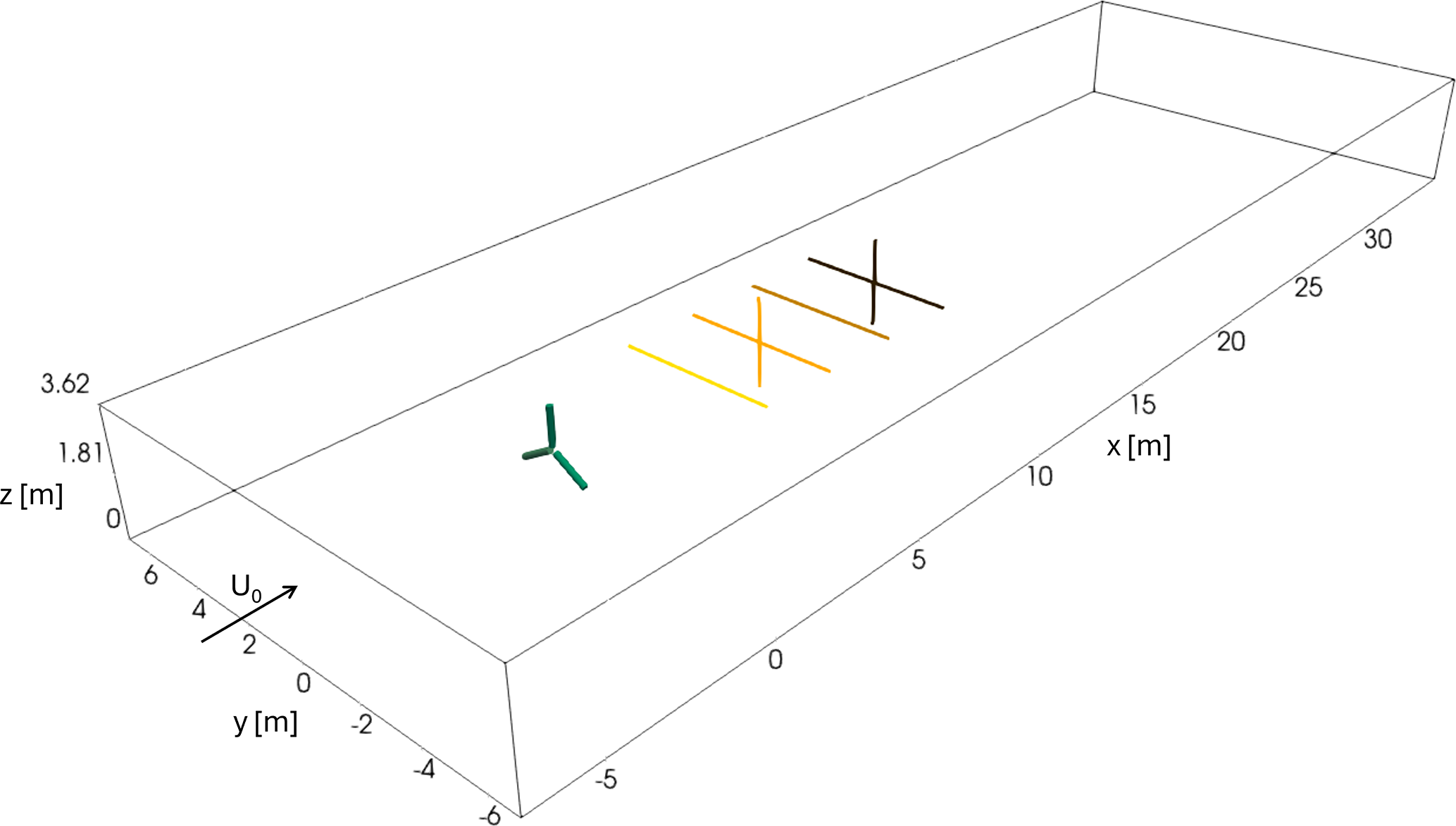

Figure 5 Numerical domain, actuator lines, and sampling lines in the single-turbine configuration.

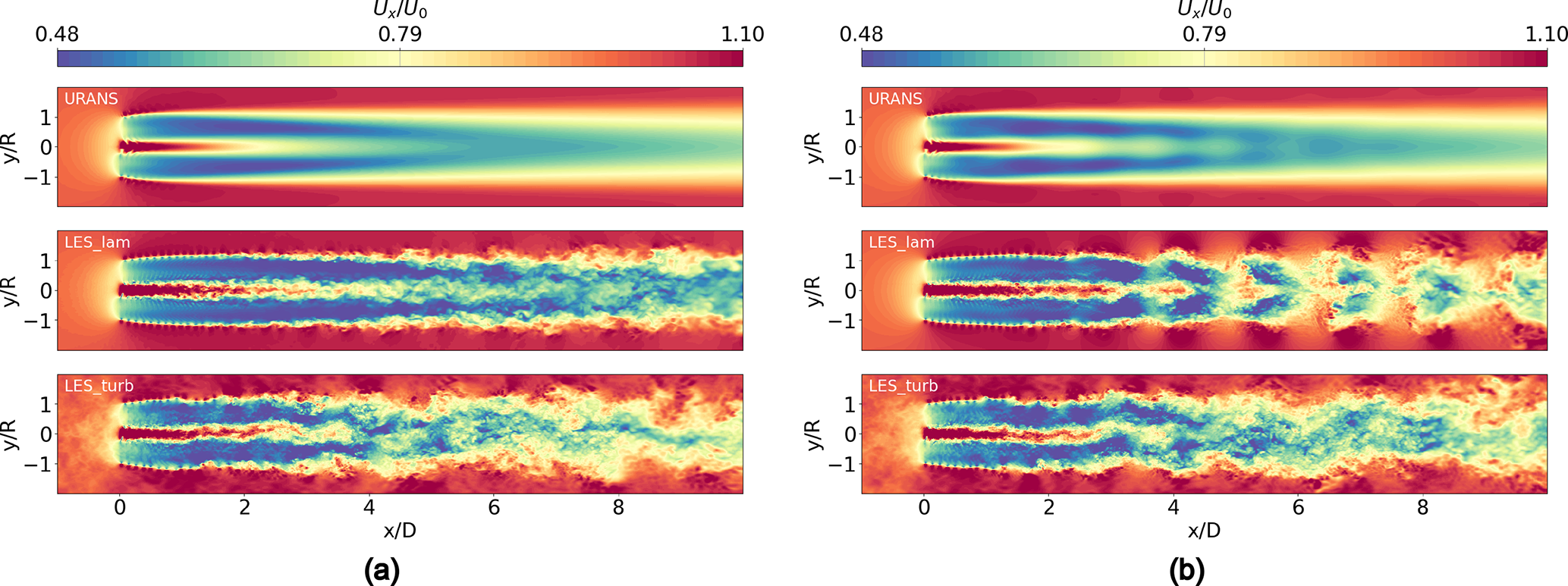

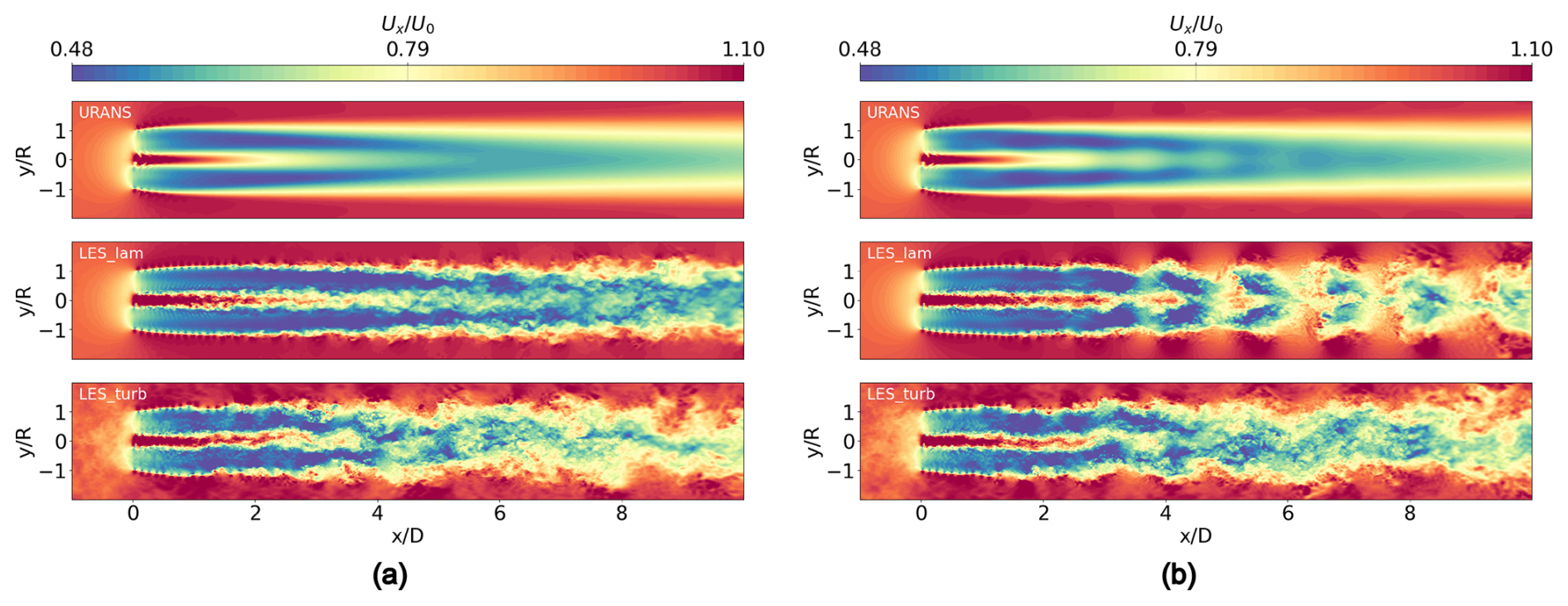

Figure 6 Instantaneous axial velocity field on a horizontal plane. (a) Fixed-bottom case. (b) Surge case.

5.1 Axial velocity and turbulence intensity: numerical vs. experimental comparison

Figure 6 shows the instantaneous axial velocity field, made dimensionless with respect to the free-stream velocity, on a horizontal plane at hub height for the fixed-bottom and surge cases. In the fixed-bottom case (Fig. 6a), beyond the expected differences in wake structure resolution between URANS and LES, the comparison between the laminar LES and turbulent LES reveals that, despite the relatively low inflow turbulence intensity (around 1.5 %), its impact on the wake is clearly visible. The wake in the turbulent LES case appears more chaotic, and the tip vortices are less stable and mix out more rapidly.

In the surge case (Fig. 6b), coherent wake structures generated by the platform motion, corresponding to oscillations in axial velocity, can be identified. These structures are visible in the URANS simulation up to 6 D downstream, before dissipating in the far wake. In the laminar LES, the same structures appear more pronounced, well defined, and persistent, as the absence of inflow turbulence leads to a more stable and organized wake. Conversely, these structures are no longer distinguishable in the turbulent LES, where wake turbulence fluctuations dominate the instantaneous velocity field.

A more quantitative comparison of these aspects is presented in the following sections.

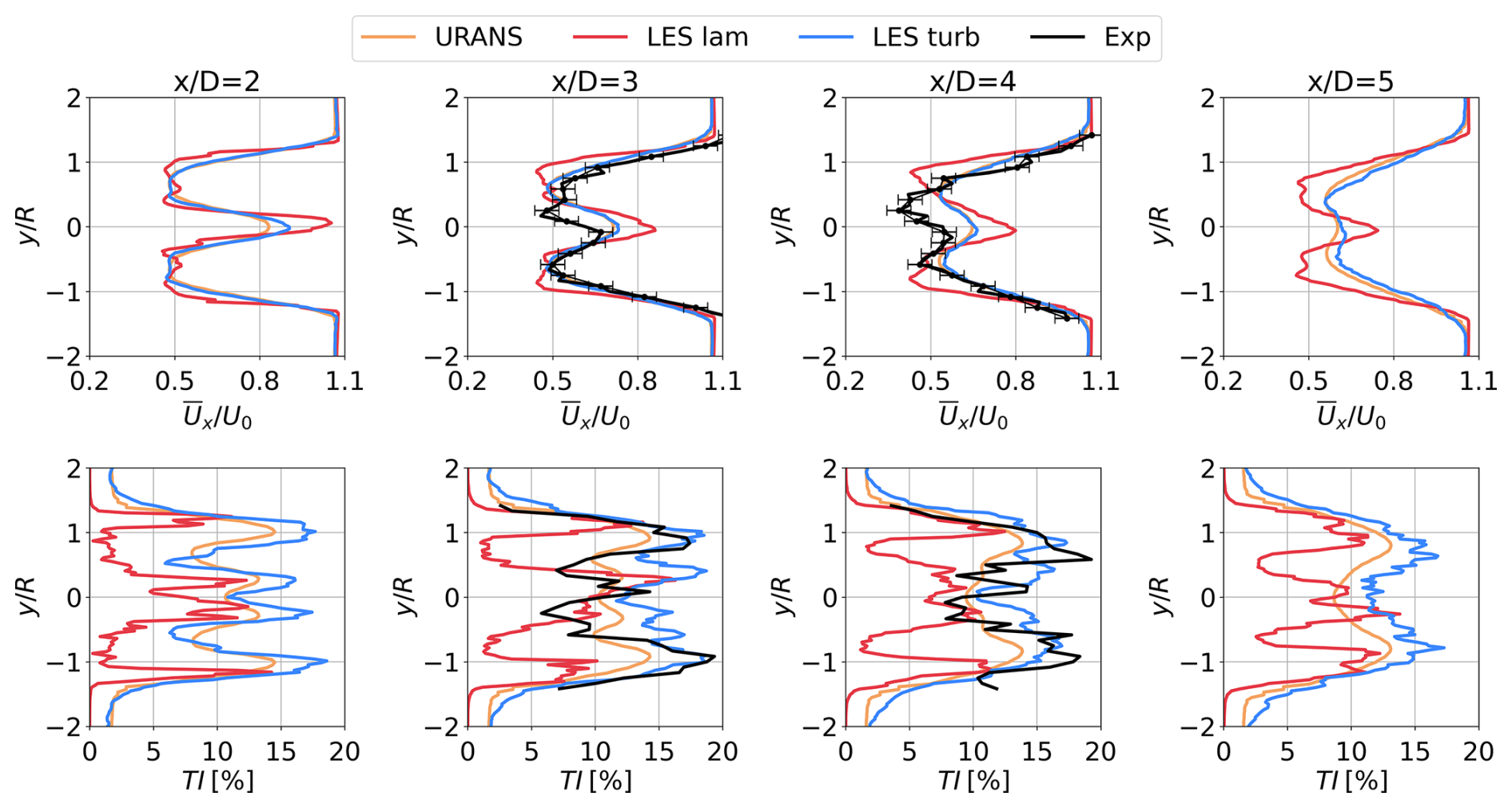

Figure 7 Mean axial velocity and turbulence intensity over four horizontal lines – fixed-bottom case.

During the experimental campaign, wake measurements were carried out along downstream horizontal and vertical lines using a hot-wire anemometer with average uncertainties of 0.17 m s⁻¹ for flow speed and 0.4 % for turbulence intensity (Fontanella et al., 2025). These measurements are used here to validate the numerical results. Figure 7 presents the comparison between numerical and experimental data along four horizontal lines at hub height, in terms of mean axial velocity and turbulence intensity. In the plots of the experimental mean velocity, the error bars indicating the measurement uncertainty are also included.

The figure shows that the laminar LES underestimates the turbulence intensity in the wake, which limits wake recovery and results in greater discrepancies in the mean velocity profile. In contrast, both the URANS and the turbulent LES calculations show better agreement with each other and with the experimental data in terms of mean velocity profiles. Regarding the turbulence intensity, although URANS provides reasonably accurate averaged values, the turbulent LES more accurately captures the local distribution, especially further downstream from the turbine.

Experimental validation was also performed for the surge and pitch cases. However, since the resulting observations do not differ substantially from those already discussed, the validation for these cases is provided in Appendix B for the sake of brevity.

To assess the consistency of the different numerical approaches, this analysis is extended by comparing the wake recovery process across the various cases. To better understand the impact of platform motion on wake recovery, the wake turbulence intensity trend is examined as a key indicator of the phenomenon.

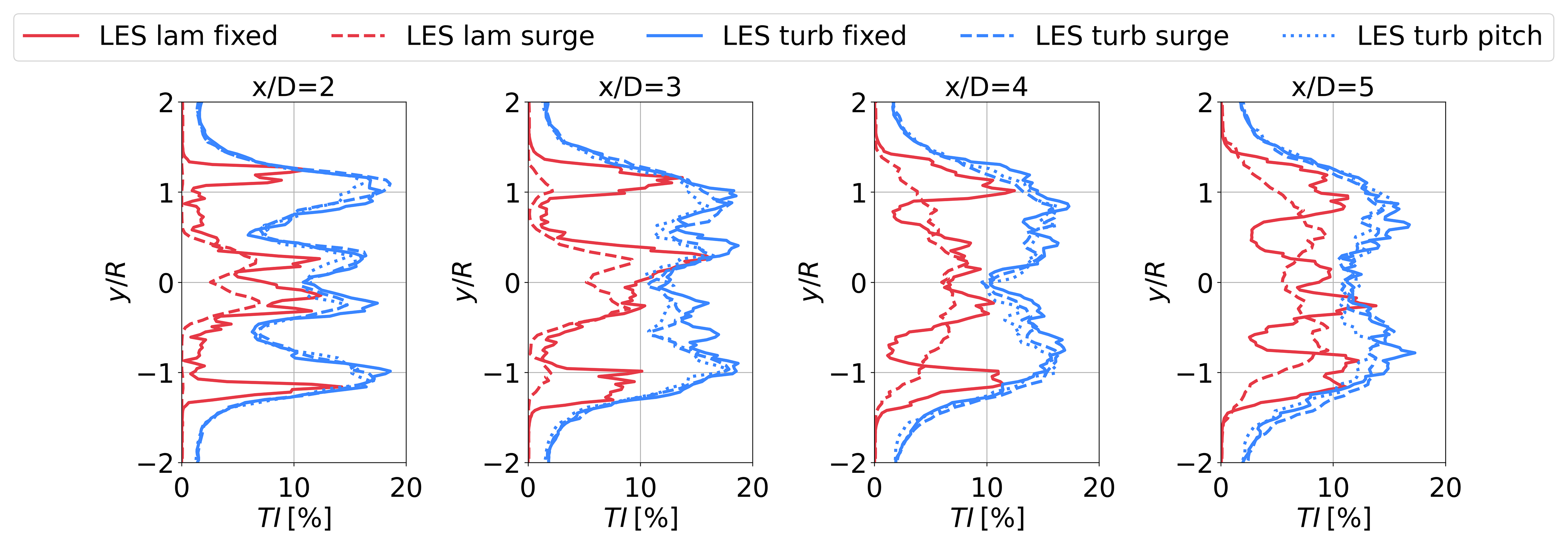

Figure 8 Turbulence intensity over four horizontal lines – LES calculations.

In particular, Fig. 8 presents TI profiles along several horizontal lines, comparing laminar and turbulent LES cases to highlight their capability to resolve the largest turbulent structures. In addition to the laminar and turbulent fixed-bottom cases (solid lines), the laminar and turbulent surge cases (dashed lines) and the turbulent pitch case (dotted lines) are included. The comparison of the laminar cases is especially useful to isolate the contribution of added turbulence generated by rotor platform motion. The figure indicates that, from 4 D downstream onward, surge motion promotes a more uniform TI distribution, thereby enhancing turbulence intensity within the wake core. When turbulent inflow is introduced, however, the differences between the fixed-bottom and floating cases become less pronounced. This indicates that the increase in turbulence caused by platform motion, which is clearly non-negligible in laminar cases, almost vanishes even with a modest level of inflow turbulence. For the cases analysed, no significant difference is observed between the effects of pitch and surge motion under turbulent inflow conditions.

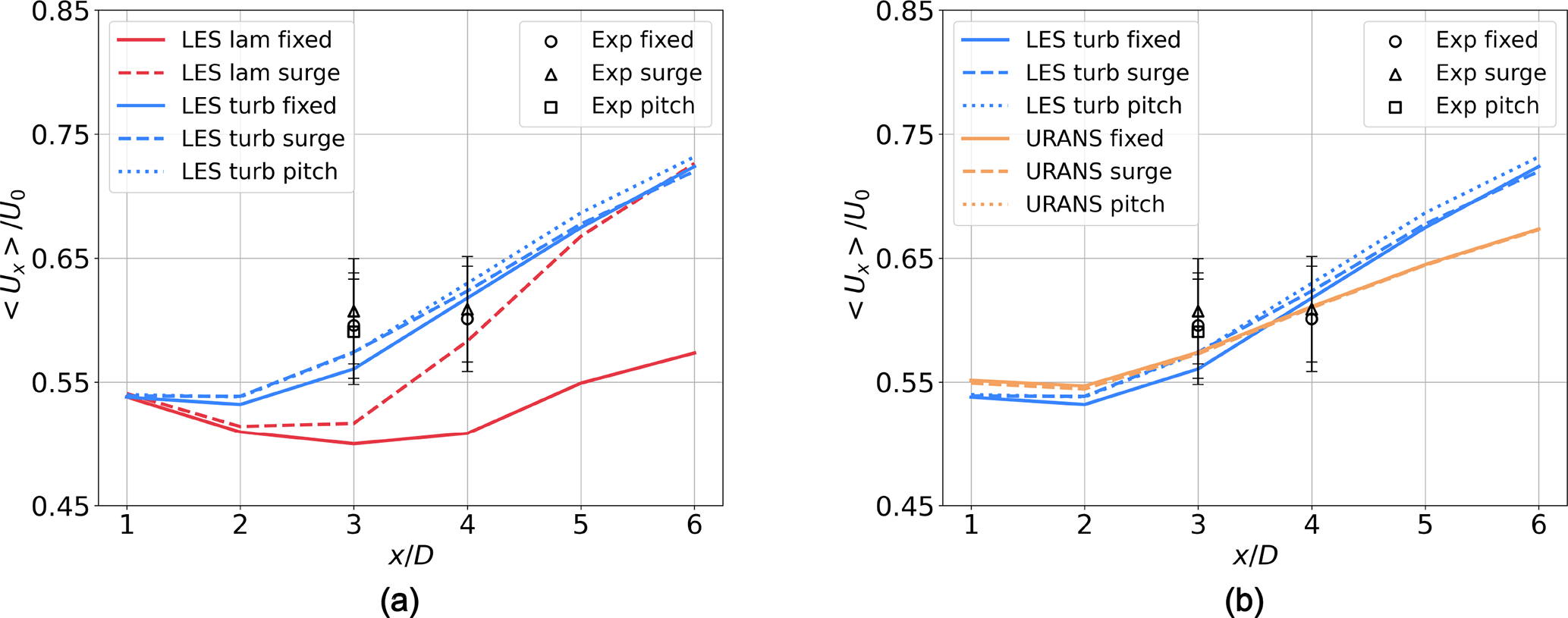

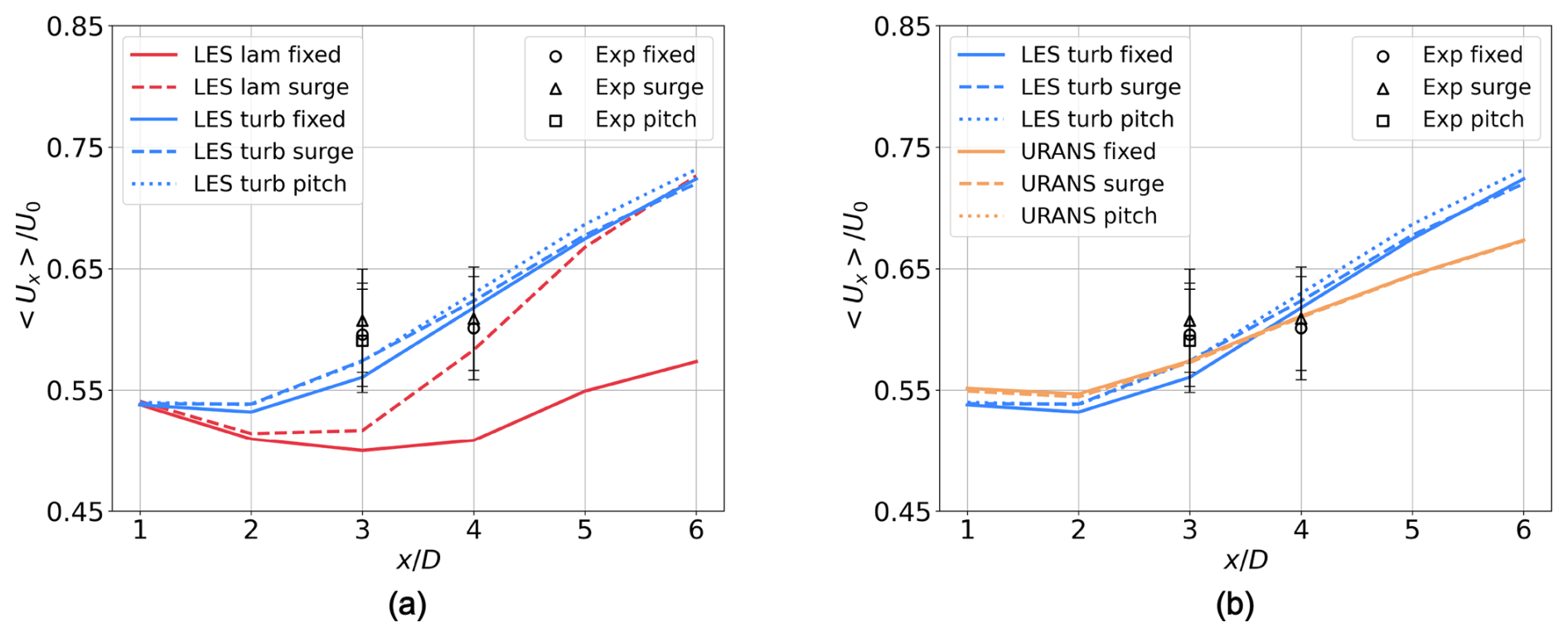

Figure 9 Wake recovery analysis. (a) Comparison between laminar and turbulent LES. (b) Comparison between turbulent LES and URANS.

To further support these observations, Fig. 9a shows the mean axial velocity for laminar and turbulent LES cases, computed using Eq. (5) over each horizontal line, as a measure of wake recovery.

$$\begin{array}{}\text{(5)}& {\displaystyle \frac{\langle \stackrel{\mathrm{‾}}{U_x}\rangle }{U_{\mathrm{0}}}}={\displaystyle \frac{{\sum }_{i=\mathrm{1}}^n\stackrel{\mathrm{‾}}{U_x}\left|r_i\right|}{U_{\mathrm{0}}{\sum }_{i=\mathrm{1}}^n\left|r_i\right|}}\end{array}$$

The velocity is first time averaged at each point along the horizontal line and subsequently subjected to a weighted average based on the distance of each point from the rotor centre (Eq. 5). To complete the analysis, the available experimental data are presented together with the corresponding measurement uncertainties. The resulting numerical trend aligns well with the turbulence intensity behaviour discussed above. In laminar inflow cases, surge motion leads to a noticeable increase in turbulence intensity, which enhances wake mixing and thus accelerates wake recovery. Under turbulent LES, the wake recovery is already promoted by inflow turbulence so that the gain in the wake recovery capability in the presence of surge motion is mitigated with respect to the laminar cases. Again, the wake recovery observed in the pitch case is consistent with that of the surge case. The turbulent LESs lie within the experimental measurement uncertainty, and the experimental data further confirm that only minor differences are observed between the fixed-bottom, surge, and pitch cases. These findings are in line with previous results reported by Pagamonci et al. (2025) and Li et al. (2024), further supporting the physical reliability of the numerical simulations carried out in this study. Figure 9b shows the wake recovery comparison between turbulent LESs and URANS simulations for the fixed-bottom, surge, and pitch cases. In the URANS results, a slower wake recovery is observed starting from 3 D downstream, leading to differences in the estimated inflow velocity at a downstream turbine. Among the various URANS cases, the differences are negligible.

5.2 Platform-motion-induced wake velocity fluctuations

As qualitatively illustrated in Fig. 6b, the platform motion induces velocity oscillations in the wake that propagate downstream and may influence subsequent turbines. The objective of this section is to quantify these oscillations in terms of phase shift relative to the platform motion and amplitude. To this end, only the results from the surge and pitch simulations are presented and compared.

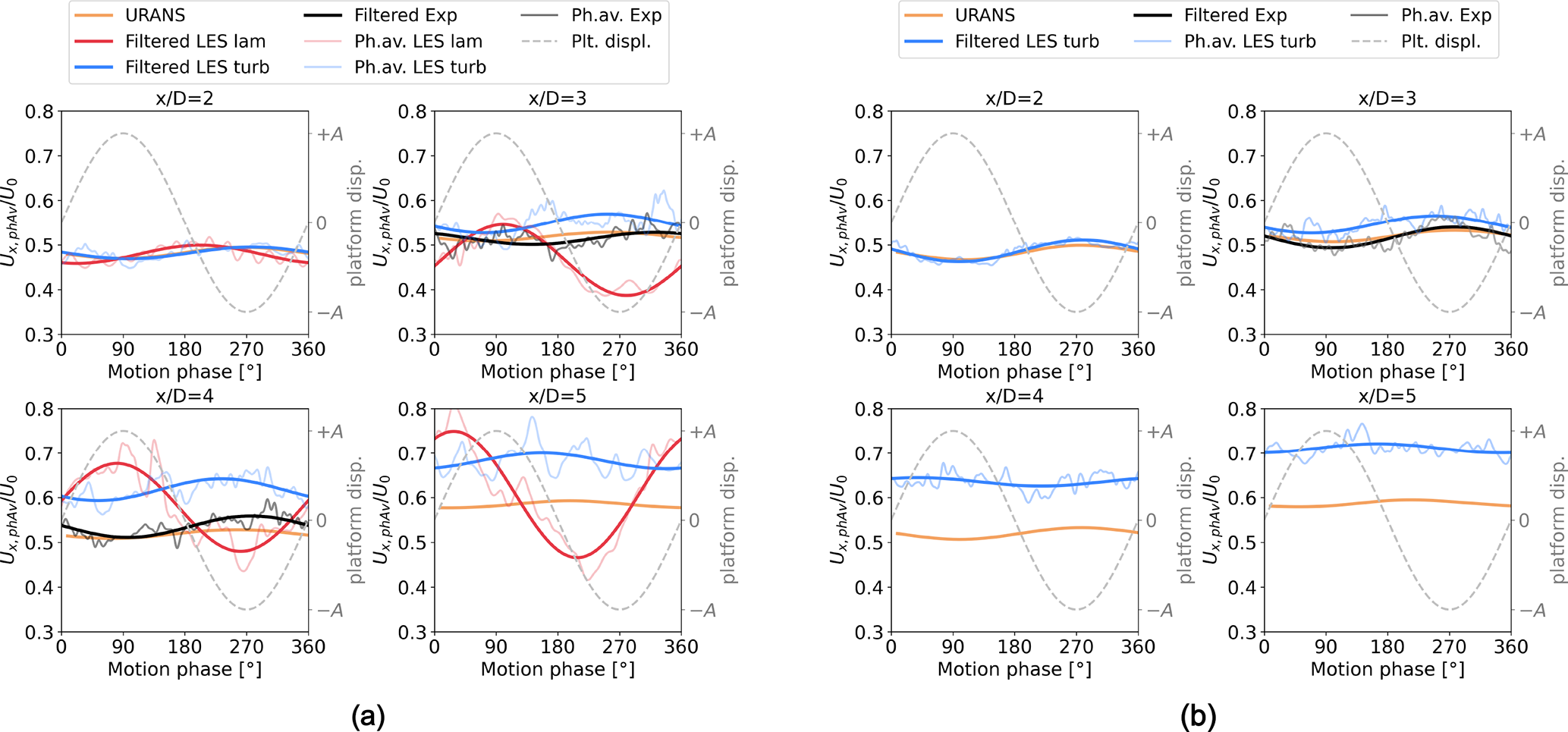

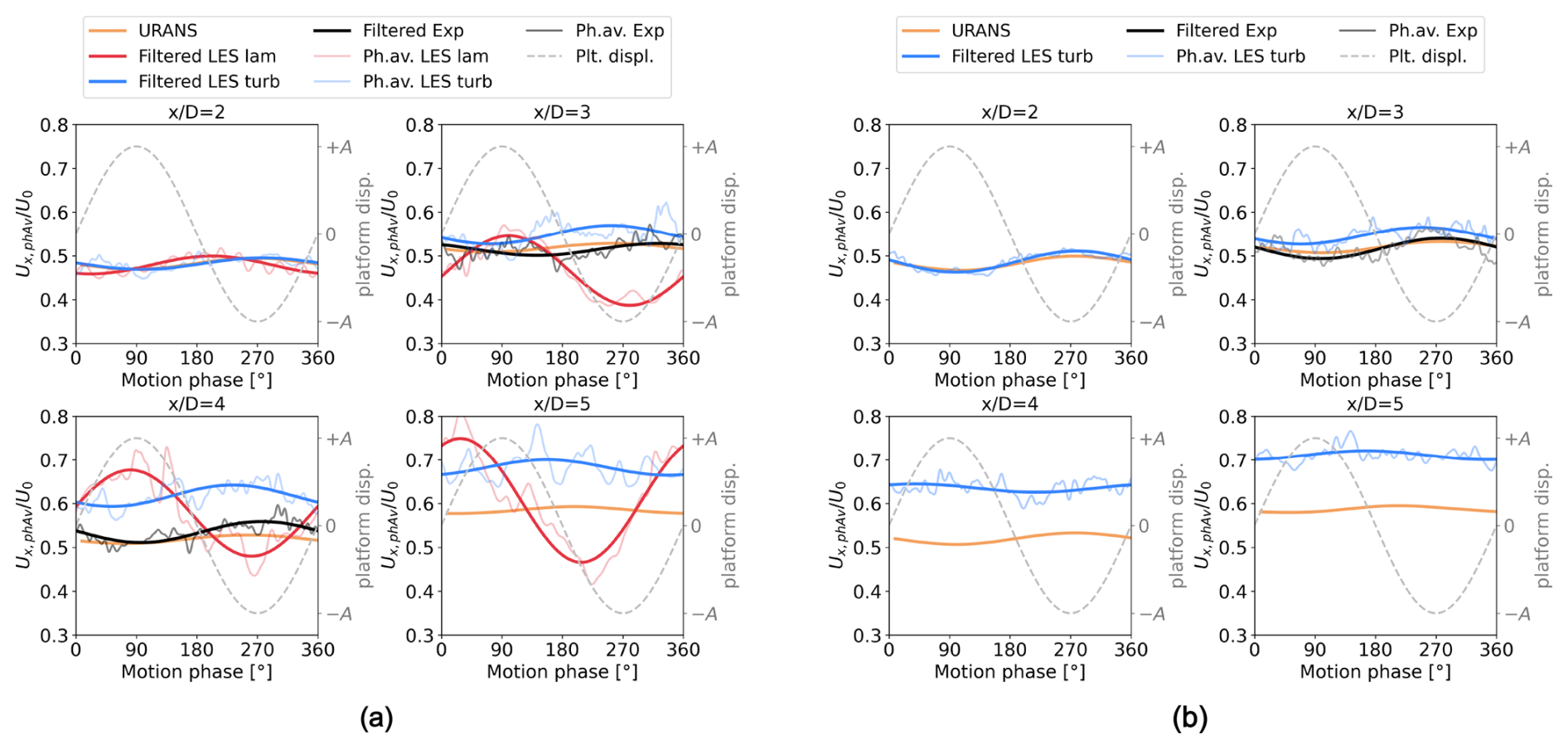

Figure 10 Phase-averaged streamwise velocity over one platform period for a point at $y/R=-\mathrm{0.75}$. The solid lines represent the filtered velocity signal, the semi-transparent solid lines represent the phase-averaged signals, and the dashed line represents the platform displacement. (a) Surge case. (b) Pitch case.

Figure 10 analyses the velocity fluctuations at a representative point in the wake, located at $y/R=-\mathrm{0.75}$. Specifically, the analysis is conducted at this same $y/R$ coordinate across various streamwise positions ($x/D$) downstream of the rotor. For each ($x/D$) location, the streamwise velocity signal was first examined to identify a time window in which the wake statistics (mean and standard deviation) had reached convergence. Within this window, the phase-averaged velocity was then computed using an increasing number of platform motion cycles, and the number of cycles was selected once the phase-averaged trend showed convergence. Figure 10 shows the phase-averaged streamwise velocity as a function of the platform motion phase, together with the corresponding platform motion of the turbine (dashed grey line) as a reference. For both the LES and the experimental data, the original phase-averaged trends (semi-transparent solid lines) are shown together with the filtered trends (solid lines) to highlight the sinusoidal pattern at the same frequency as the platform motion. Figure 10a shows the results for the surge case. Focusing on a fixed numerical model (e.g. the turbulent LES), a noticeable phase shift emerges with increasing distance from the rotor due to wake-propagation effects. At 2 D, a phase shift appears in both the URANS simulation and the turbulent LESs relative to the laminar LES case: the URANS and turbulent LES results exhibit a phase shift of approximately 180° with respect to the platform displacement, whereas the laminar LES shows a shift of about 90°. This behaviour indicates that the absence of inflow turbulence alters the development and advection of the motion-induced coherent wake structures starting from the near wake; indeed, a phase-shift difference for the laminar LES remains visible across all downstream positions.

Consistently, the turbulent LESs and URANS simulations display similar phase-shift behaviour at 2 D, 3 D, and 4 D, with only a slight divergence observed at 5 D. This discrepancy may stem from different turbulence modelling approaches. Compared with the experimental data, a small phase difference is observed at 3 D and 4 D.

Regarding the difference in the mean value, it should be noted that the 75 % blade span lies in a region of the wake characterized by high gradients, where estimates of mean velocity values are highly sensitive; nevertheless, the mean values remain consistent with those described in the previous section. It should be emphasized that this analysis involves a high level of detail; thus, the experimental data may be subject to sources of variability, such as minor non-uniformities in inflow turbulence and imperfect control of platform motion or rotational speed. Nevertheless, the results are considered sufficiently reliable and demonstrate good agreement between turbulent LES and URANS in terms of phase shift. Regarding amplitude, it can be qualitatively observed that URANS tends to underpredict the amplitude of the oscillations compared to turbulent LES and experimental data. A quantitative comparison of signal amplitudes is presented later in the text. In contrast, the laminar LES exhibits clear differences in both phase shift and amplitude. This highlights how the absence of inflow turbulence leads to excessively coherent and amplified wake structures that do not align with experimental observations. Figure 10b presents the same analysis for the pitch case, where only the turbulent LESs and URANS simulations are shown. Observations analogous to those previously discussed can be made here as well, indicating that, within the frequency and amplitude ranges considered in this study, the impact of pitch motion does not significantly differ from that of surge.

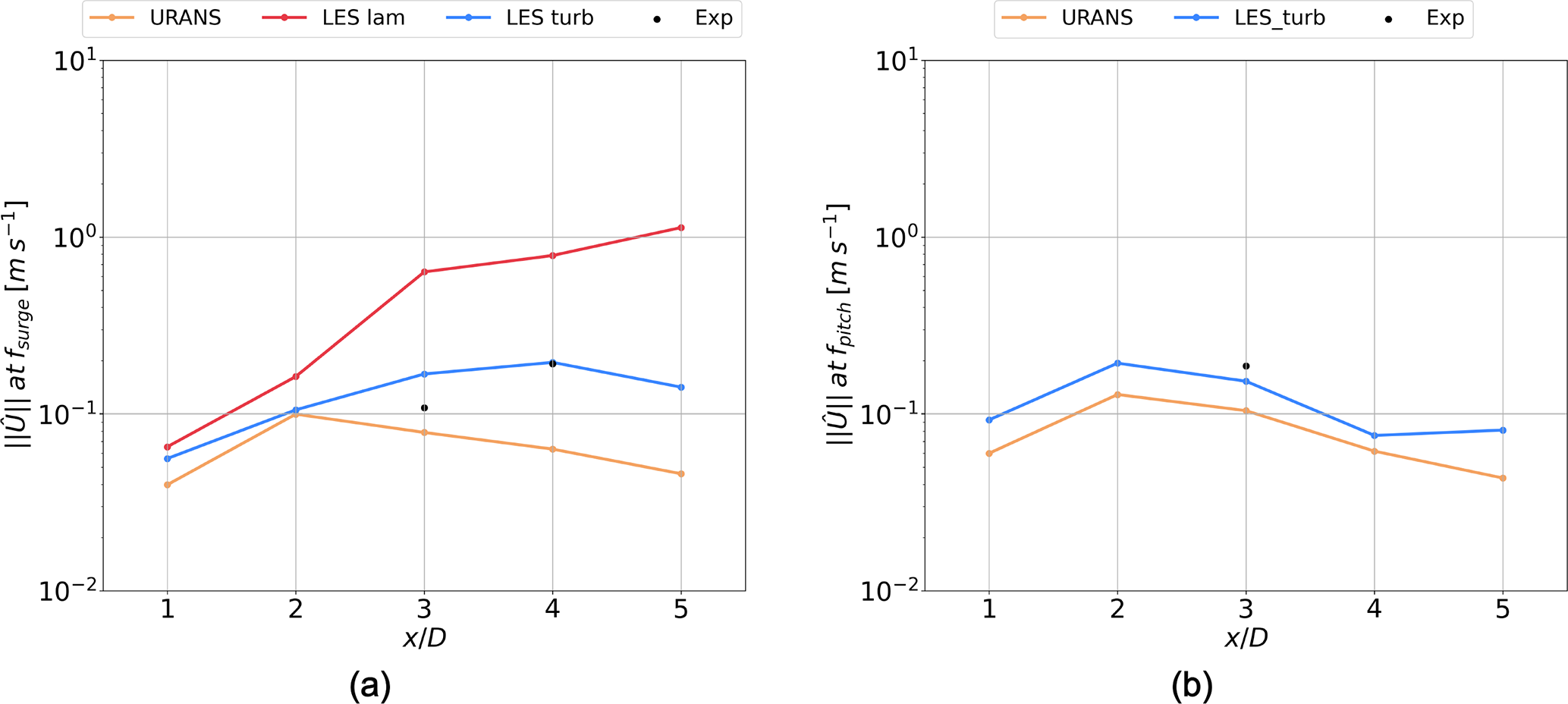

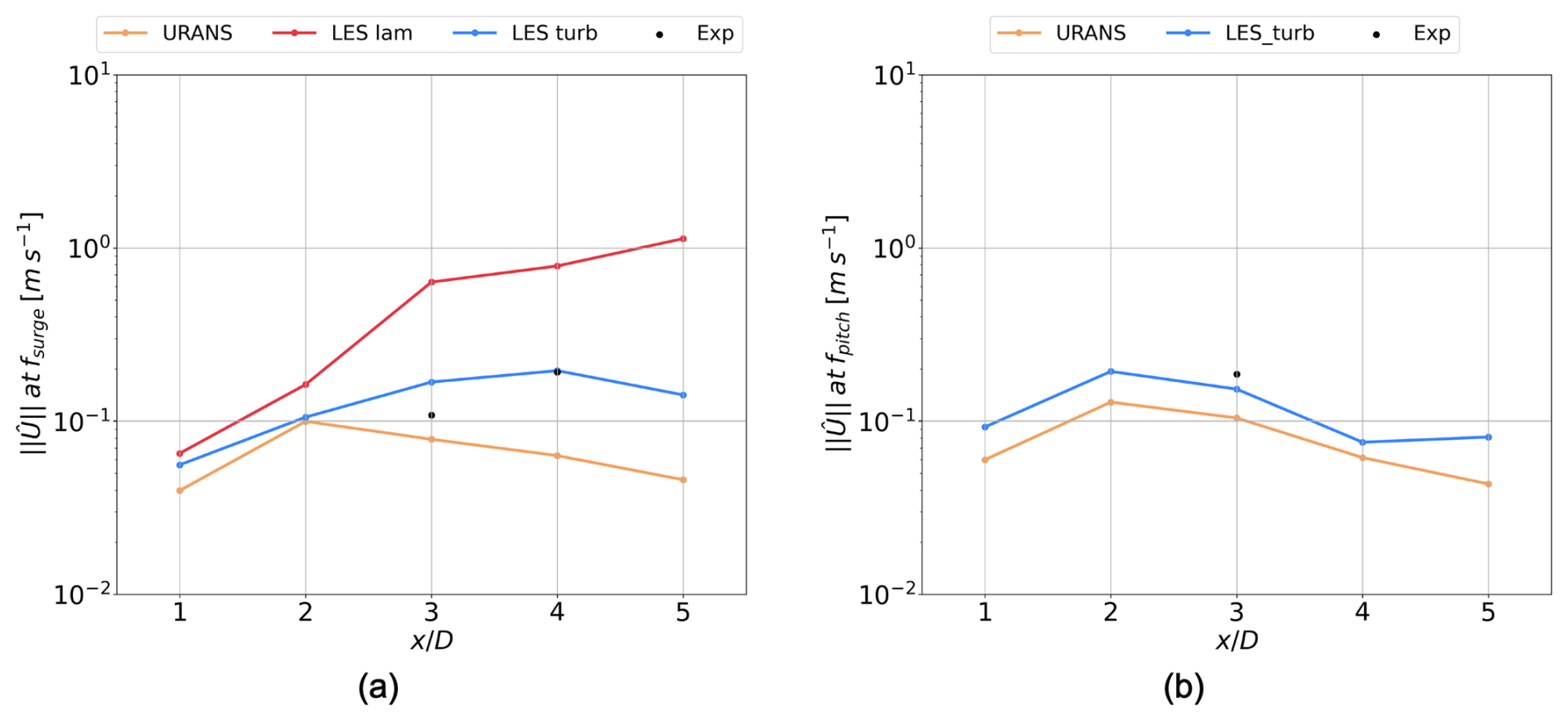

Figure 11 Amplitude at the motion frequency for a point at $y/R=-\mathrm{0.75}$. (a) Surge case. (b) Pitch case.

Figure 11 presents a quantitative analysis of the amplitude, at the point $y/R=-\mathrm{0.75}$, of the filtered phase-averaged streamwise velocity signal previously discussed. In the surge case (Fig. 11a), the laminar LES demonstrates that the absence of inflow turbulence leads to an amplification of wake oscillation amplitude, which remains rather large even at 5 D downstream of the rotor. After the downstream position at 2 D, where wake fluctuations become more prominent, the URANS simulation increasingly underestimates the oscillation amplitude compared to the turbulent LES, likely due to the different turbulence model. The turbulent LES, on the other hand, shows good agreement with the experimental data. For the pitch case (Fig. 11b), a slightly more pronounced reduction in amplitude is observed from 4 D downstream; however, once again, the URANS simulation is found to underestimate the amplitude.

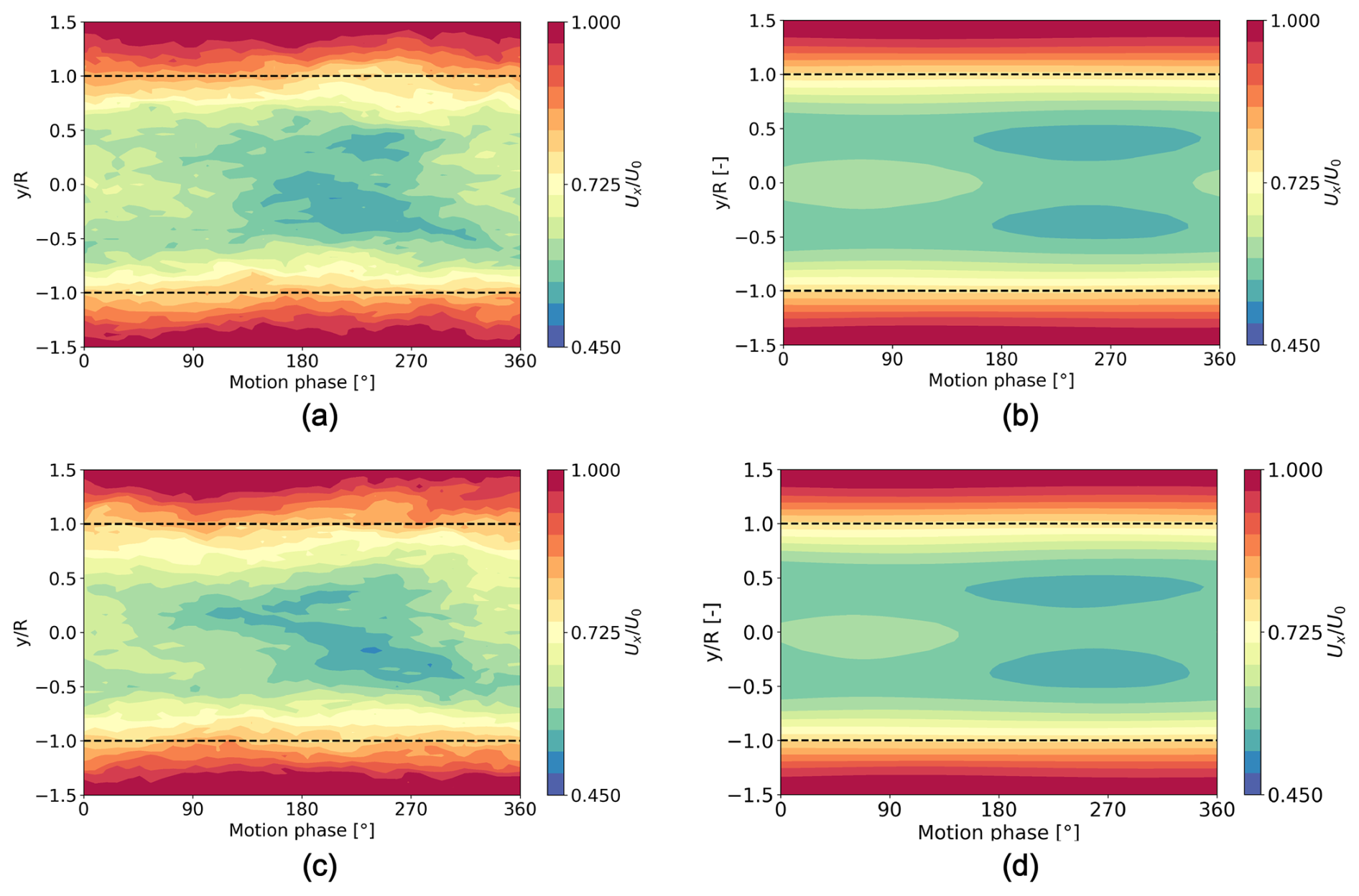

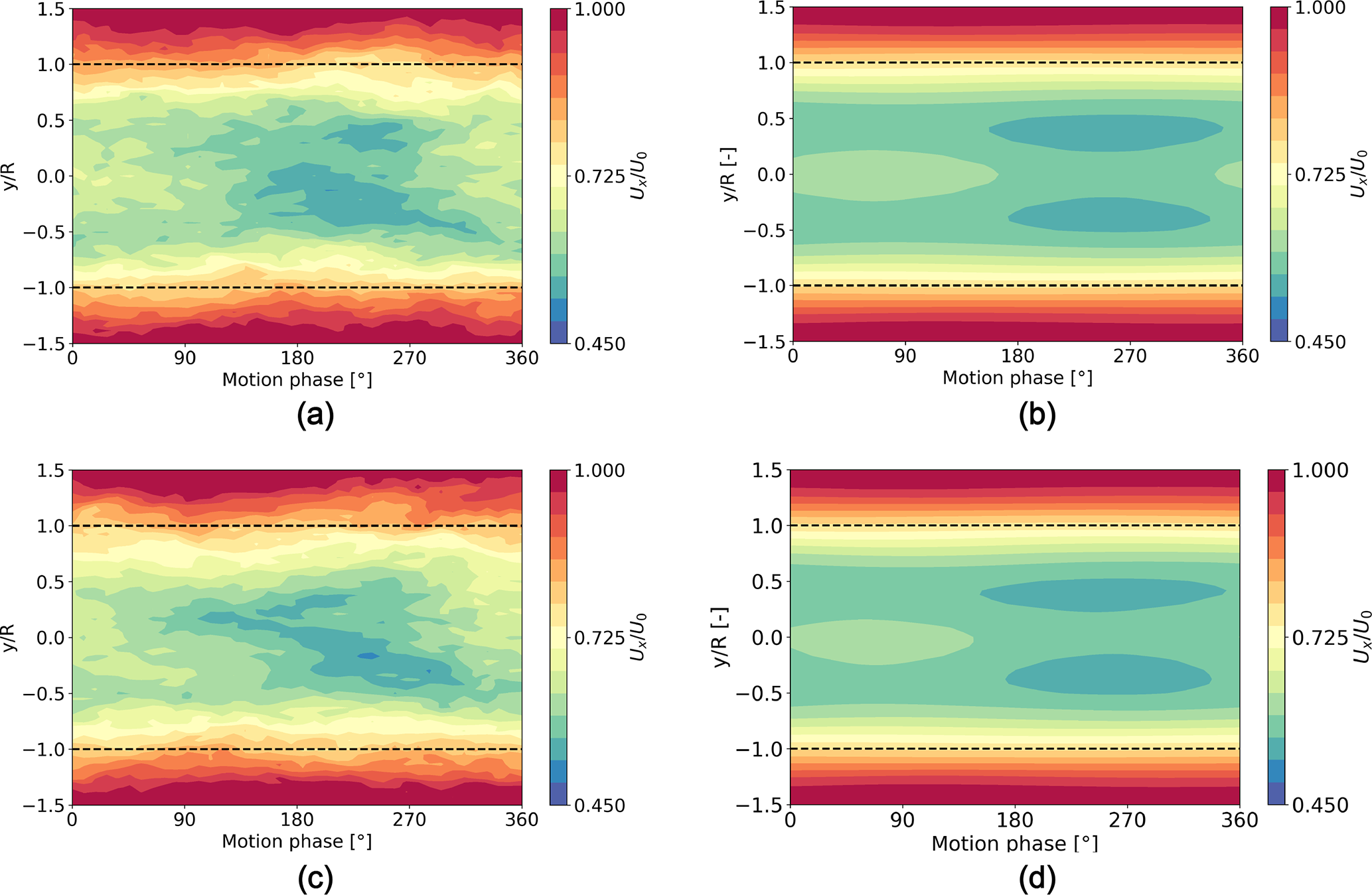

Figure 12 Phase-averaged streamwise velocity contours along a horizontal line at $x/D=\mathrm{5}$. (a) Surge case – LES turbulent. (b) Surge case – URANS. (c) Pitch case – LES turbulent. (d) Pitch case – URANS.

The amplitude of wake oscillations is a key parameter for assessing whether a downstream turbine will experience unsteady inflow and how such fluctuations are spatially distributed across the rotor plane. To provide insight into the spatial distribution of wake oscillations at the position where the second turbine will be located (5 D), Fig. 12 displays the phase-averaged streamwise velocity over one platform motion cycle along a horizontal line at hub height. The figure includes both surge and pitch cases for the URANS and turbulent LES.

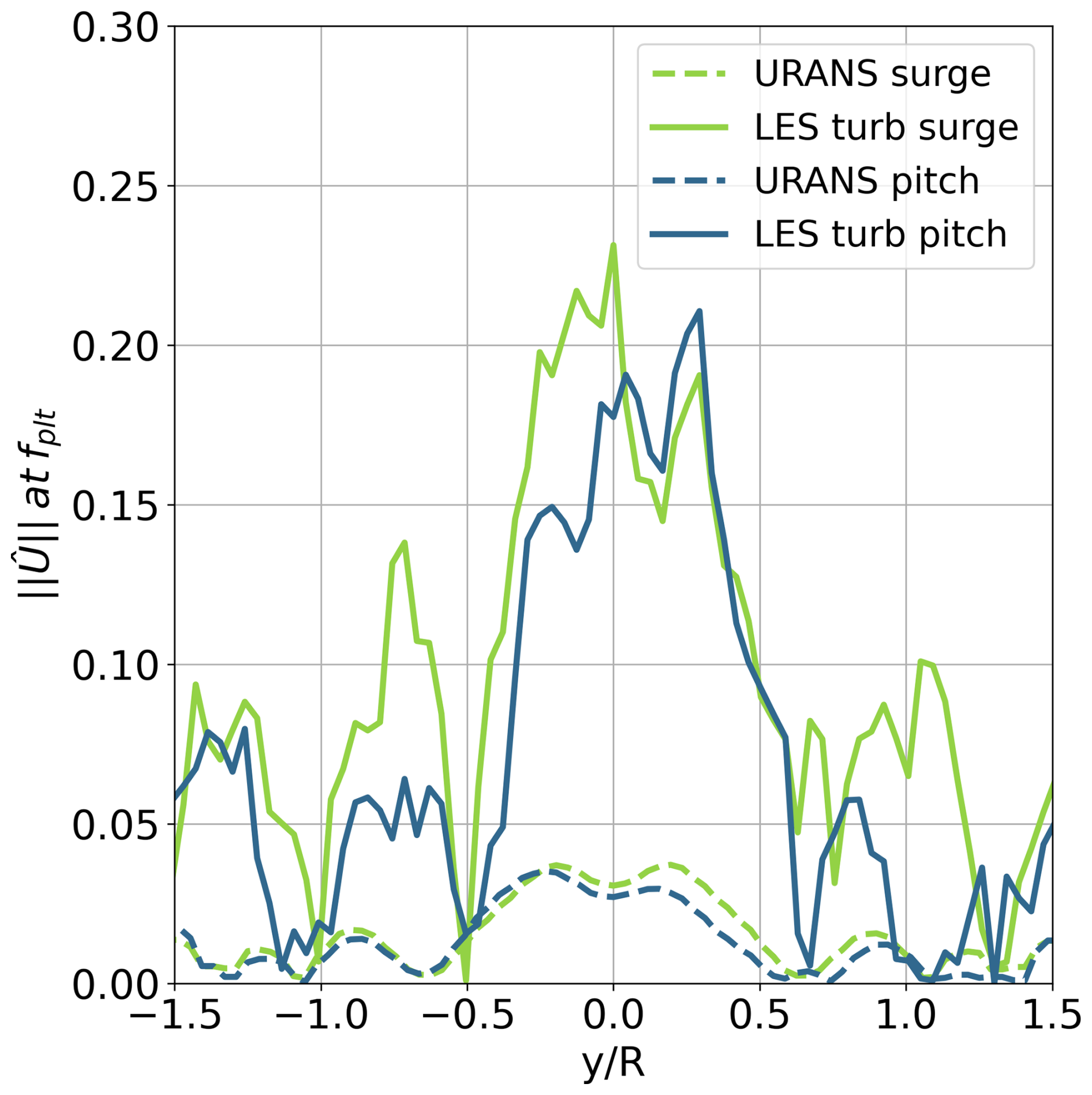

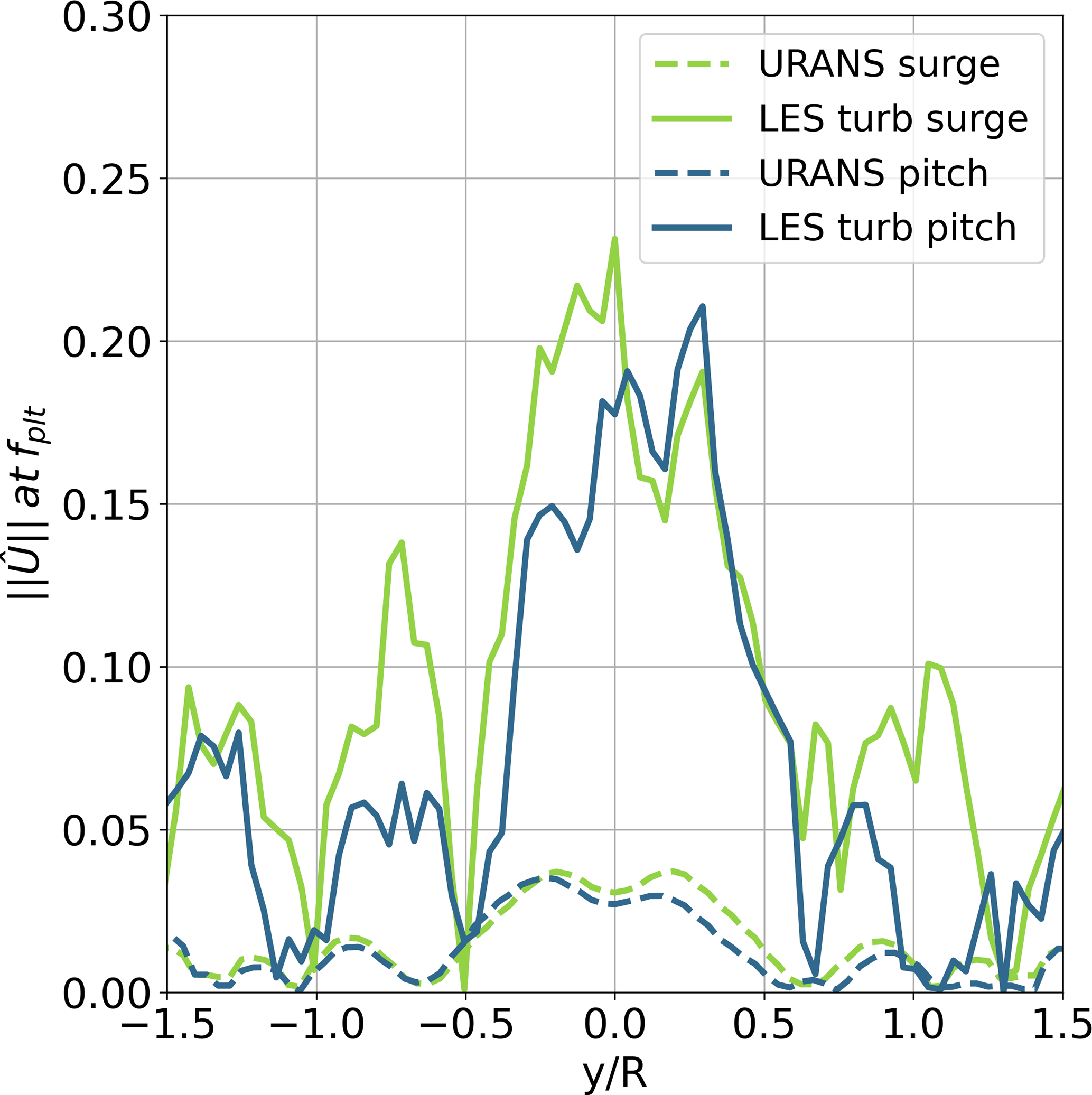

Figure 13 Amplitude at the motion frequency over a transverse horizontal line at $x/D=\mathrm{5}$.

For both pitch and surge motions, the highest oscillation amplitude is clearly concentrated in the central wake region, where oscillatory structures tend to persist longer compared to the outer shear layer. Turbulent LES calculations show a uniformly oscillating central region roughly between $y/R=-\mathrm{0.5}$ and $y/R=\mathrm{0.5}$, while URANS simulations exhibit symmetry between the two sides at $y/R=-\mathrm{0.5}$ and $y/R=\mathrm{0.5}$. To quantify the amplitude of these oscillations, Fig. 13 presents, for all four simulations, the amplitude of the harmonic component at the platform motion frequency for each point along the horizontal line computed using Fourier transform. As anticipated qualitatively in the Fig. 12, both LESs and URANS simulations confirm that the maximum oscillation amplitude occurs in the region between $y/R=-\mathrm{0.5}$ and $y/R=\mathrm{0.5}$. Therefore, it is expected that the blade loads on the downstream turbine will be influenced by the platform motion primarily close to the hub region.

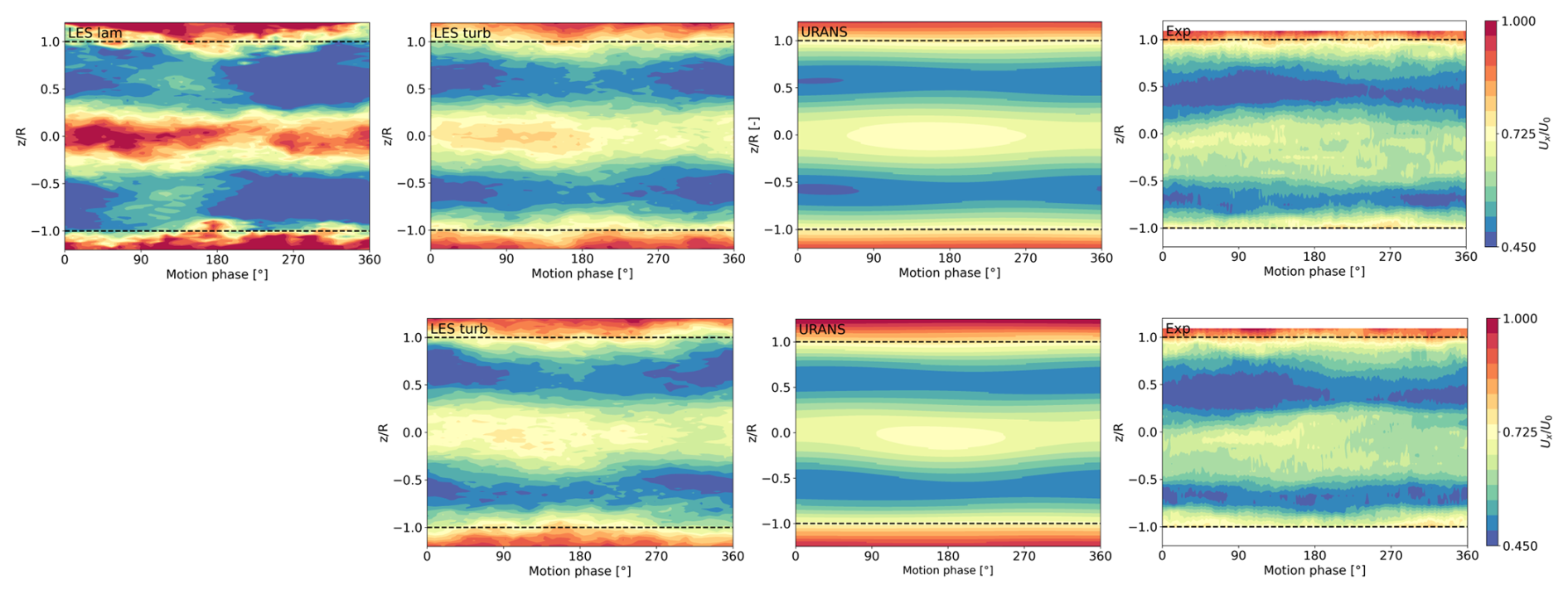

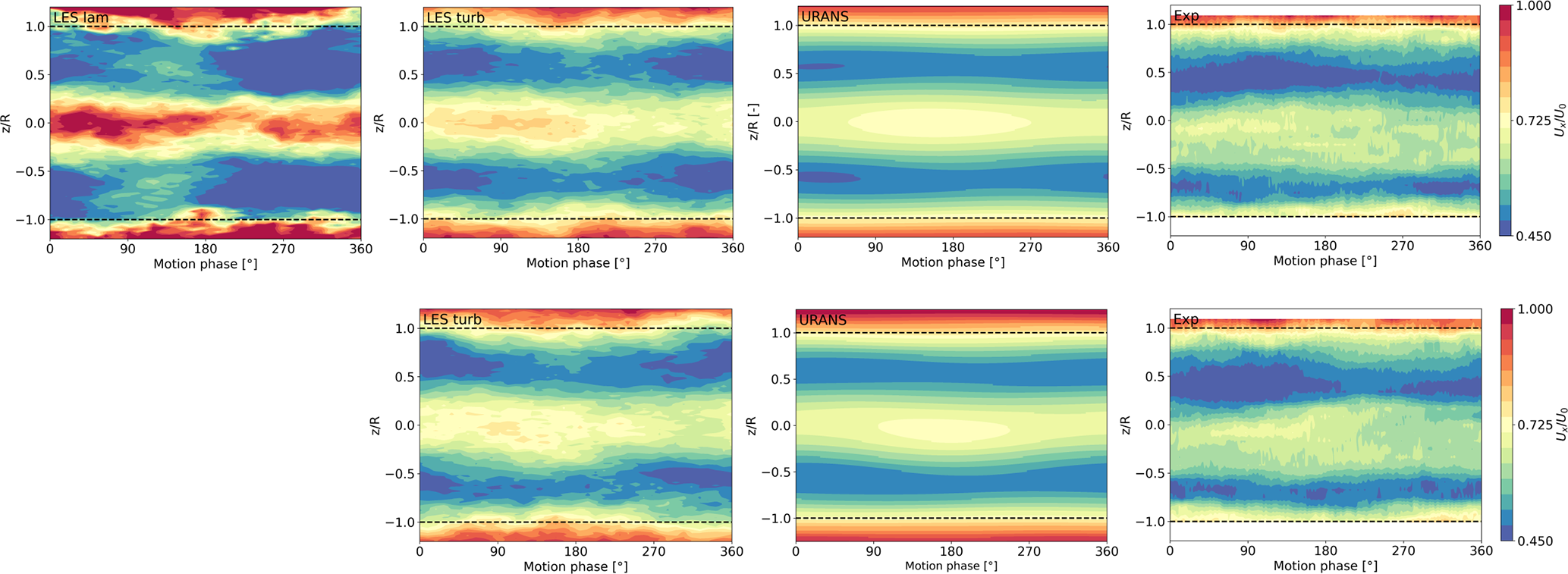

Figure 14 Phase-averaged streamwise velocity contours on a vertical line at $x/D=\mathrm{3}$. First row: surge case. Second row: pitch case.

To conclude the analysis of wake oscillation propagation, the vertical plane aligned with the turbine hub is also examined to highlight any differences between the symmetric surge motion and the pitch motion, which introduces a vertical velocity gradient in the wake. Figure 14 shows once again the phase-averaged streamwise velocity, along a vertical line at $x/D=\mathrm{3}$. A comparison is made between all available numerical simulations, with the addition of experimental data. The figure refers to the surge case in the top row and the pitch case in the bottom row. In the surge case, the LES with laminar inflow visibly overestimates the oscillation amplitude, while the URANS simulation underestimates it. The numerical simulations generally display a symmetric behaviour between the upper and lower parts of the rotor, whereas the experimental data reveal a slight asymmetry. This asymmetry in the experiment is likely due to physical effects not included in the numerical simulations, such as the presence of the nacelle and tower. For the pitch case, no significant differences are observed compared to the surge case, either among the numerical simulations or in the experimental data. The pitch platform motion does not have a noticeable impact on the wake, at least at a downstream distance of 3 D. As in the surge case, the numerical simulations do not capture the asymmetry observed in the experiment. This experimental asymmetry is not attributed to a direct effect of the pitch motion, as it also appears in the surge configuration, suggesting it may arise from other experimental factors.

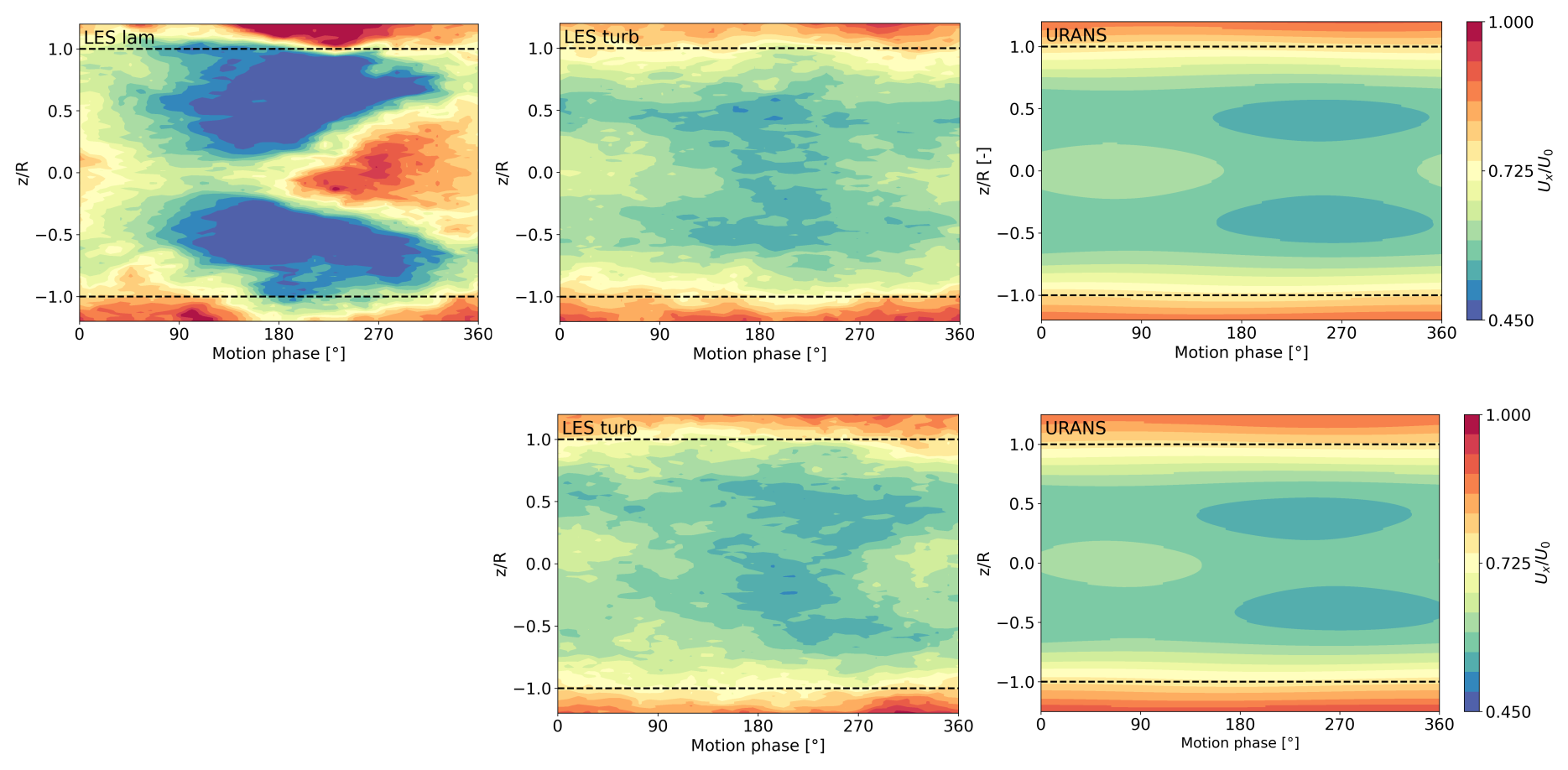

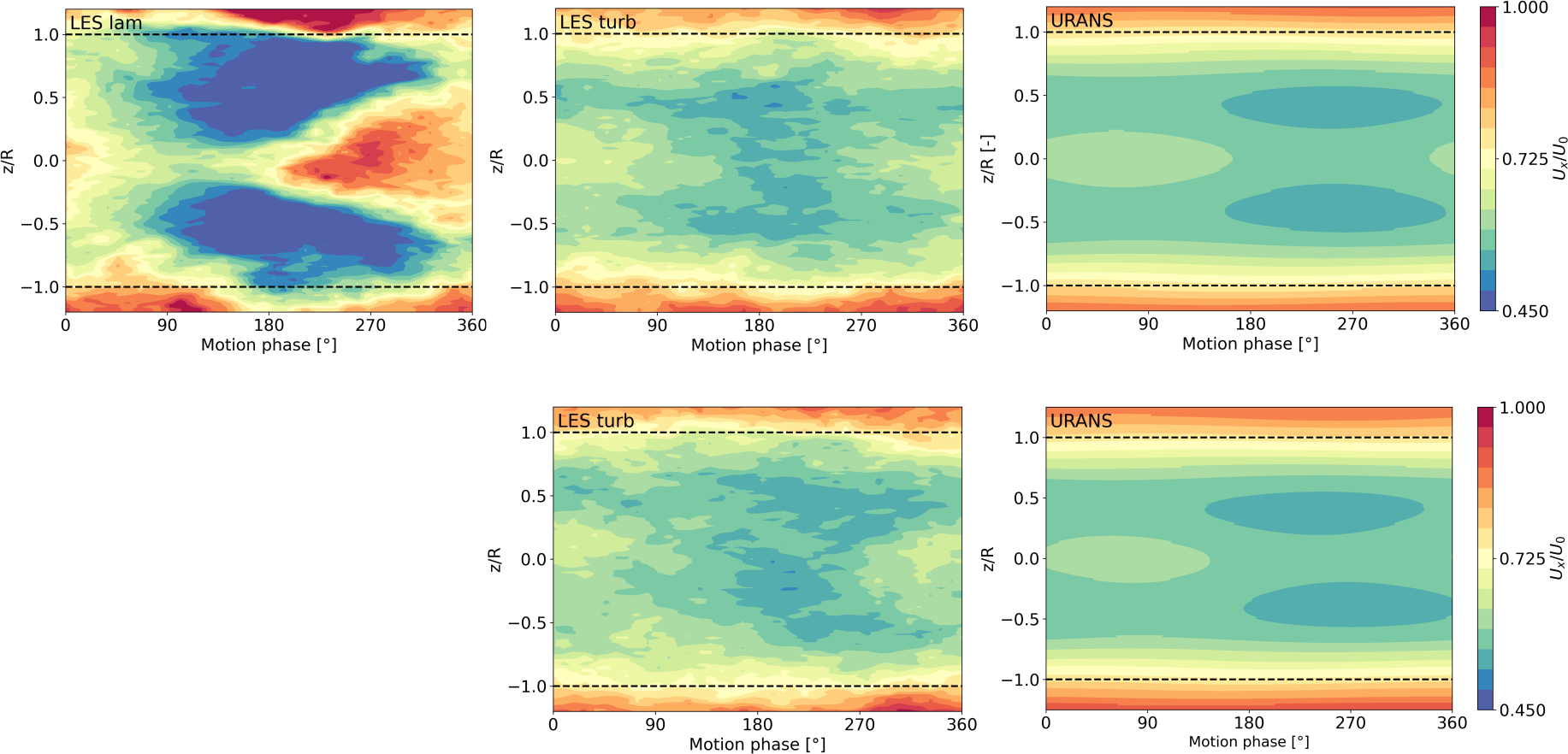

Figure 15 Phase-averaged streamwise velocity contours on a vertical line at $x/D=\mathrm{5}$. First row: surge case. Second row: pitch case.

Figure 15 presents the same velocity fields along a vertical line at $x/D=\mathrm{5}$, with the aim of further characterizing the flow incoming into the downstream turbine. Consistent with the results in Fig. 13, the central region exhibits the largest oscillation amplitude in both URANS and the turbulent LES. In contrast, the laminar LES shows wider oscillations and less mixing due to the absence of turbulent inflow. When comparing the two turbulent LES cases, a slight rightward shift of the minimum region in the pitch case is observed. Finally, the URANS simulations for both surge and pitch exhibit a slight phase shift in the oscillations compared to the turbulent LES results. In summary, the wake oscillations at 3 D and 5 D downstream are comparable between the surge and pitch cases, and the numerical simulations generally exhibit a symmetric wake behaviour. Minor differences between turbulent LES and URANS are mainly observed in terms of amplitude at 3 D and phase shift at 5 D.

5.3 Wake meandering

The last phenomenon analysed in the evolution of the wake of a single floating wind turbine is wake meandering, a process that can significantly affect the downstream turbine loads at low frequencies, thus being relevant for structural integrity. The availability of numerical simulations with varying levels of fidelity and different turbulence modelling approaches, for both fixed-bottom and floating configurations, allows obtaining meaningful insights into the character of wake meandering under the considered operating conditions. The full analysis focuses on comparing the fixed-bottom case with the surge floating case, leveraging the availability of the laminar LES. However, given the similar nature of surge and pitch motions, it is assumed that similar considerations will apply to the pitch case as well. The comparison between laminar LES calculations for the fixed-bottom and surge cases will help to isolate the effect of platform motion on wake meandering, independent of turbulent inflow conditions. The comparison between laminar and turbulent LES for the fixed-bottom configuration will quantify the impact of turbulent inflow on the development of wake meandering. The comparison between turbulent LES calculations for the fixed-bottom and surge cases enables an assessment of the relative contributions of platform motion and turbulent inflow, as well as their combined effect on wake meandering under realistic turbulent inflow conditions. Finally, wake meandering is also quantified for the URANS simulations in order to evaluate the capability of such a model to capture and reproduce the phenomenon.

In this section, the analysis initially focuses on the laminar and turbulent LES of the fixed-bottom and surge cases in order to understand the fundamental characteristics of the phenomenon. Subsequently, the URANS simulations are examined to complement the analysis and assess their predictive capabilities.

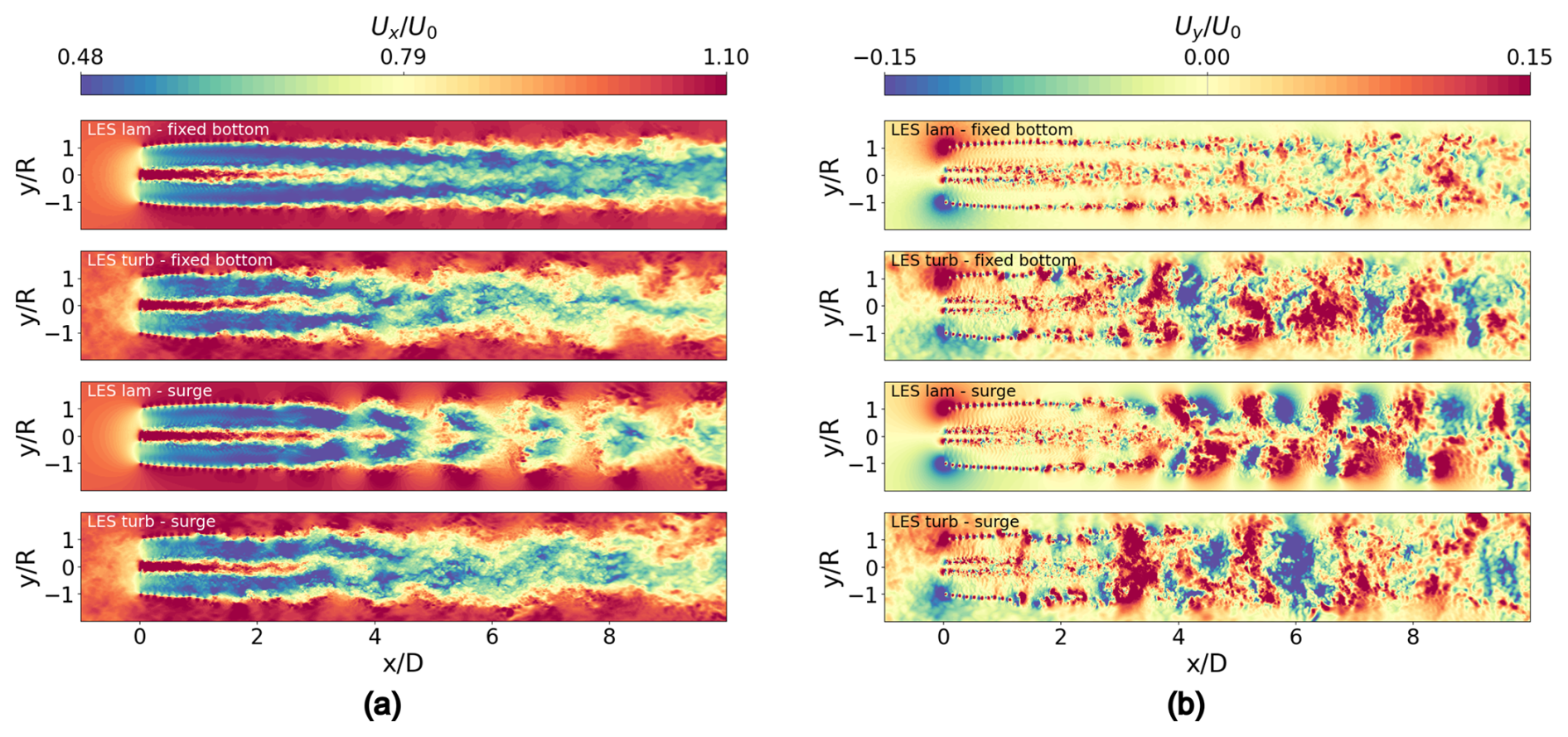

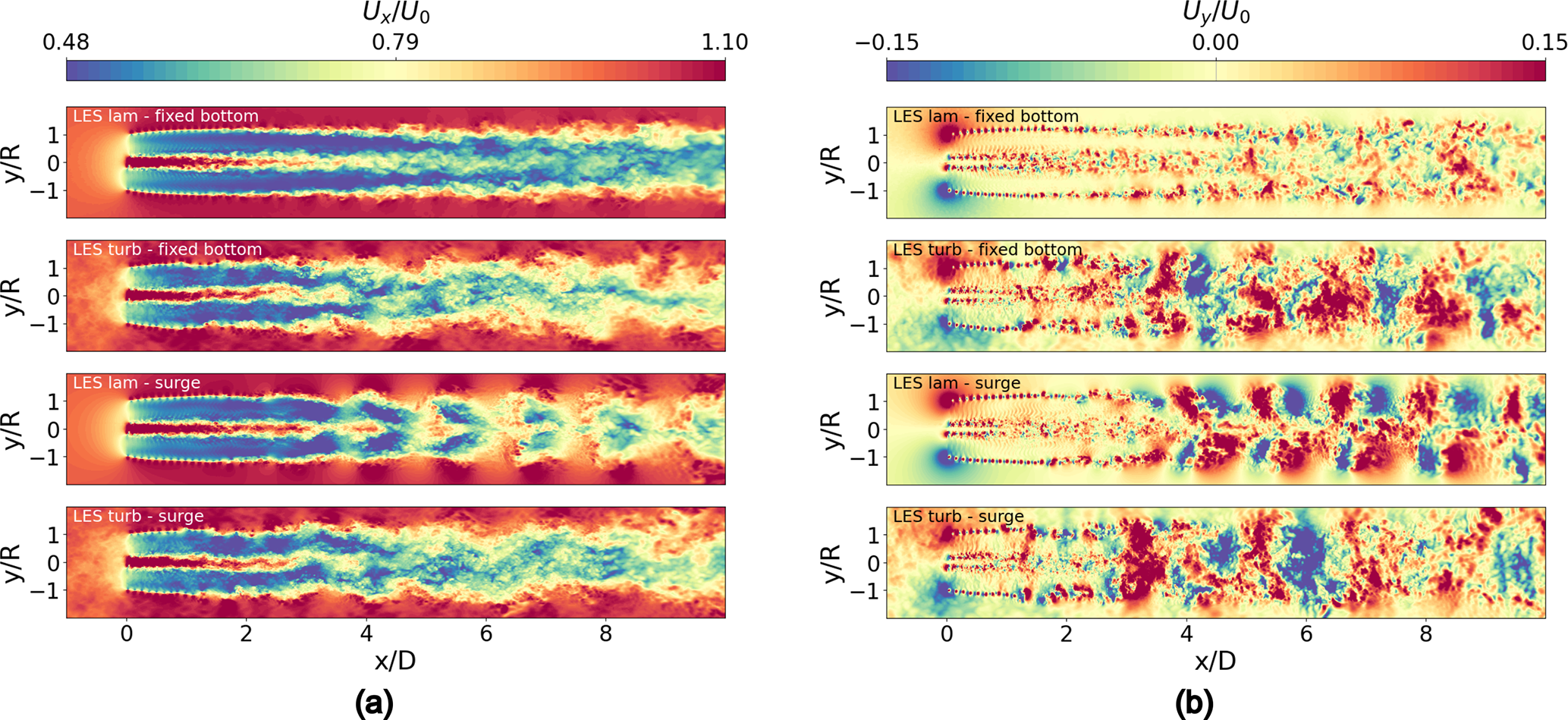

Figure 16 Instantaneous streamwise and transverse velocity contours on a horizontal plane from various LES calculations. (a) Streamwise velocity. (b) Transverse velocity.

The analysis focuses on the horizontal plane at hub height, where the larger domain extent minimizes the confinement effects that take place in the vertical direction due to the wind tunnel's limited height. Figure 16 presents the instantaneous streamwise and transverse velocity fields on a horizontal plane for both laminar and turbulent LES calculations in the fixed-bottom and surge configurations. Figure 16a shows that cases with turbulent inflow, regardless of platform motion, exhibit pronounced wake meandering, which is not observed in the laminar cases, with or without platform motion. To better characterize this behaviour, Fig. 16b shows the transverse velocity field (component U_y), which is a useful indicator of wake orientation. In the cases with evident wake meandering (turbulent fixed bottom and turbulent surge), the U_y field displays a distinct alternating pattern of positive and negative values from approximately 3 D downstream, indicative of wake meandering. In contrast, the laminar fixed-bottom case does not display any distinct pattern. The laminar surge case, instead, exhibits a structured but qualitatively different pattern: an opposite sign of U_y across the traverse ($x/D$ = const) with symmetry axis $y/R=\mathrm{0}$ suggests a pulsating pattern of the wake velocity rather than a periodic lateral displacement typical of meandering.

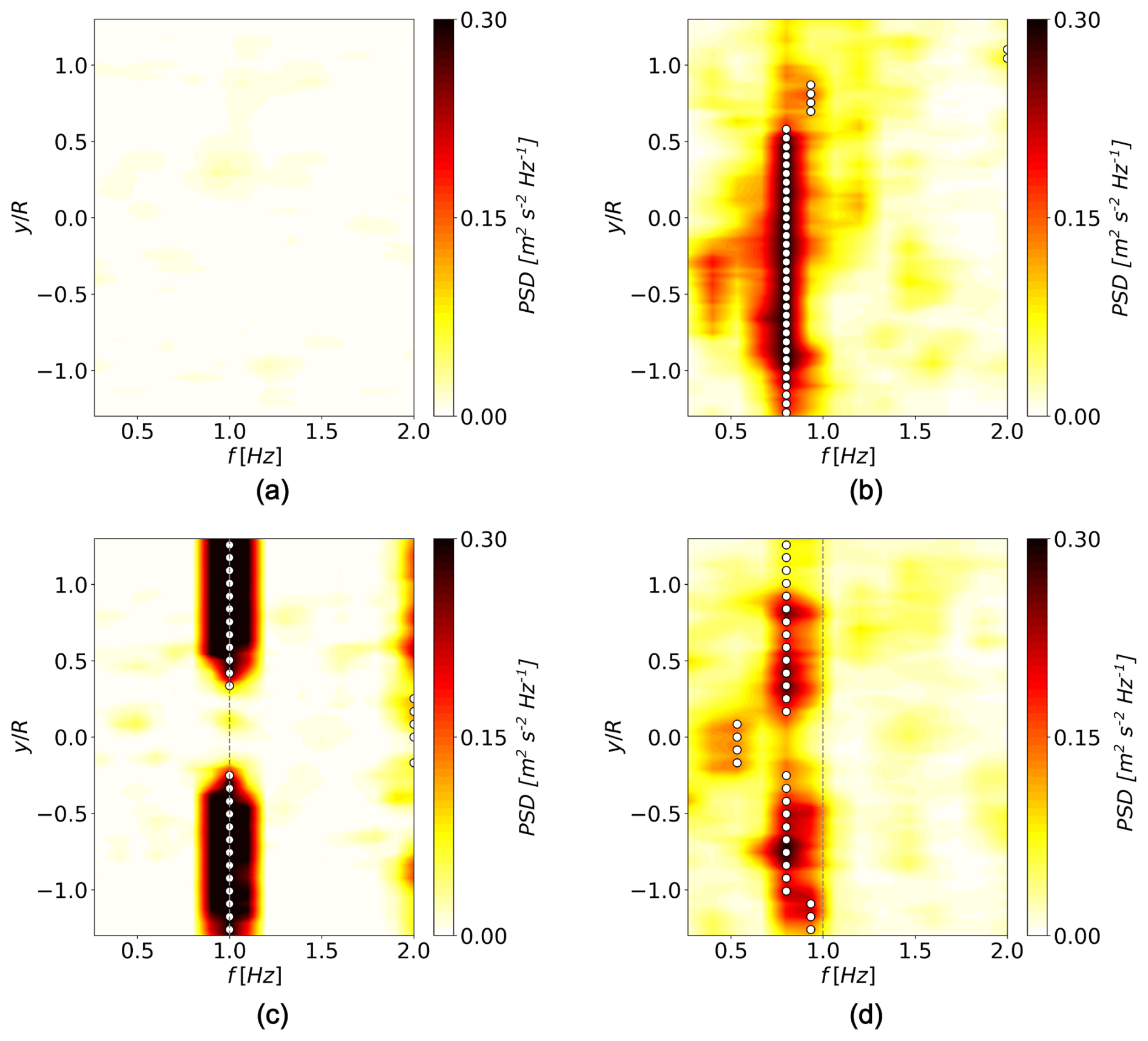

Figure 17 PSD spectra for the transverse velocity along a horizontal line at $x/D=\mathrm{5}$. (a) Fixed bottom – LES laminar. (b) Fixed bottom – LES turbulent. (c) Surge – LES laminar. (d) Surge – LES turbulent.

To further quantify the phenomenon and assess the influence of both surge motion and turbulent inflow, a spectral analysis is carried out to identify the characteristic frequency of the flow pattern caused by meandering. Figure 17 shows the power spectral density (PSD) of the transverse velocity for points along a horizontal line located 5 D downstream of the rotor, for both laminar and turbulent simulations in the fixed-bottom and surge cases. The objective is to analyse the low-frequency spectrum to identify any dominant frequency contributions, starting from a sufficiently downstream position to consider the meandering phenomenon as predominant. In the laminar fixed-bottom case (Fig. 17a), no clear dominant frequency component is observed within the frequency range considered. In contrast, the turbulent fixed-bottom case (Fig. 17b) exhibits a dominant frequency in the range of 0.7–0.9 Hz at all points along the line, which is deemed to correspond to the characteristic wake pattern previously identified in Fig. 16b. In the laminar surge case (Fig. 17c), a dominant frequency again appears at all points along the line; however, the frequency matches the one of the platform motion itself (1 Hz). This indicates that in laminar conditions, the wake dynamics are primarily governed by the platform motion, and no low-frequency component is identified. This confirms that the U_y pattern observed in the laminar surge case has a different nature, being driven solely by the imposed platform motion. Interestingly, in the turbulent surge case, the dominant frequency observed at all points is no longer the one of the platform motion. Instead, a lower-frequency component emerges in the 0.7–0.9 Hz range, consistent with the turbulent fixed-bottom case. This indicates that the dominant wake dynamics in both turbulent scenarios arise from the same physical mechanism and are characterized by the same frequency. Therefore, under the operating conditions analysed, platform motion does not appear to play a significant role in enhancing wake meandering. Instead, the phenomenon is primarily driven by the turbulent inflow, which, despite its low turbulence intensity (TI=1.5 %), increases wake instability and promotes the onset of wake meandering. The range of dominant frequencies identified in the turbulent cases corresponds to Strouhal numbers $\mathit{St}=fD/U_{\mathrm{0}}$ between 0.42 and 0.53. These values are consistent with the typical range of [0.1–0.5] reported by Messmer et al. (2024a) as characteristic of wake meandering induced by wake instabilities, particularly under low-turbulence-intensity conditions (TI<5 %), and comparable values are also reported by Li et al. (2022).

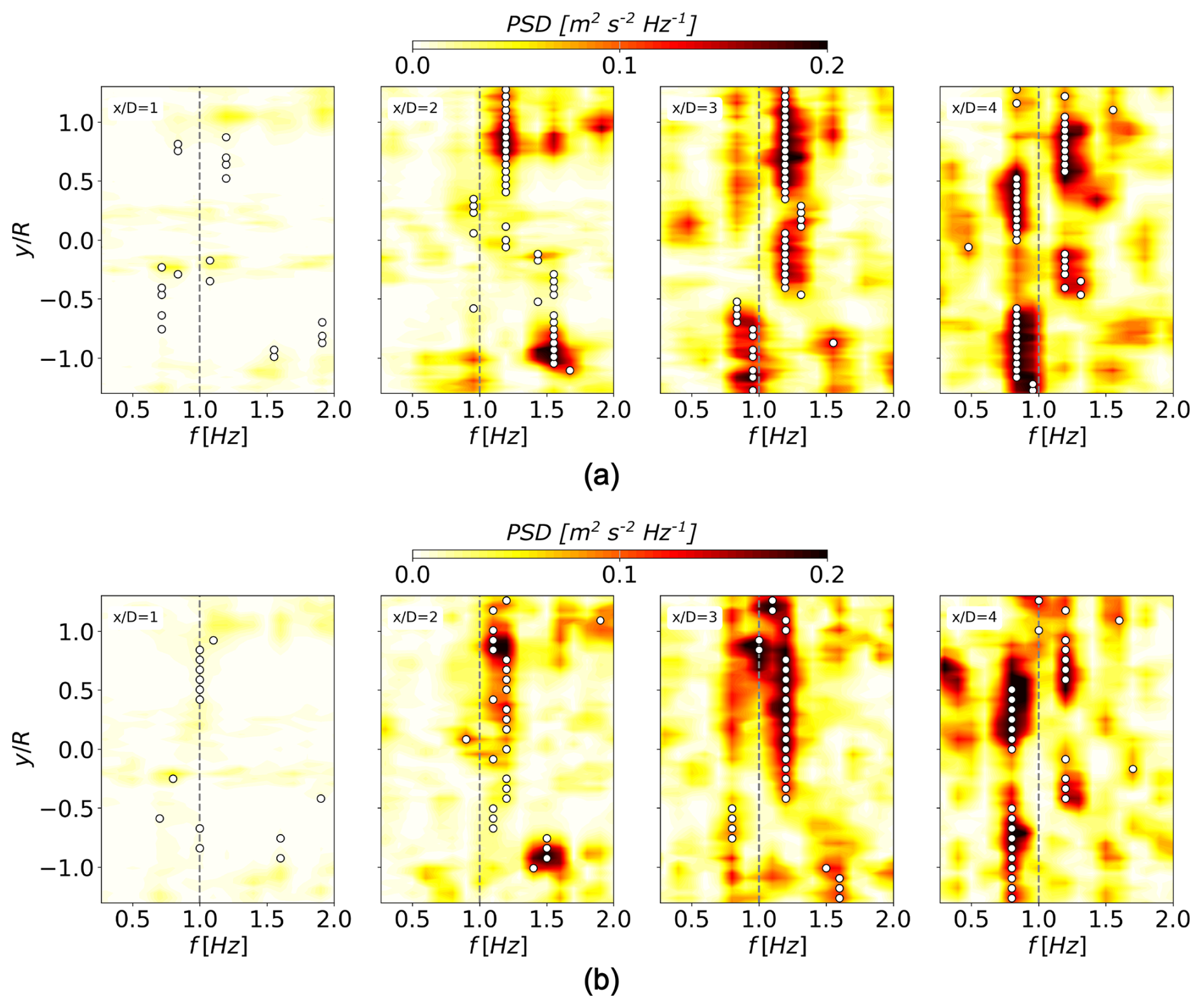

Figure 18 PSD spectra for the transverse velocity along horizontal lines from $x/D=\mathrm{1}$ to $x/D=\mathrm{4}$. (a) Fixed-bottom – LES turbulent. (b) Surge – LES turbulent.

Having shown that surge motion does not affect wake meandering in the far wake, it is interesting to investigate whether it influences the frequency spectrum in the near-wake region. The goal is to determine whether the evolution of the phenomenon differs between the fixed-bottom and surge cases at positions closer to the turbine, with a transition between the characteristic frequencies of surge motion and wake meandering identified at 5 D. Figure 18 shows the same PSD spectra as in Fig. 17 for lines at downstream positions between 1 D and 4 D for the turbulent LESs (fixed-bottom and surge). The surge motion contribution is most pronounced at 1 D. At 2 D the dominant frequency content is similar for both cases, primarily above 1 Hz. At 3 D, the frequency associated with wake meandering begins to emerge and becomes stable and dominant at 4 D. Therefore, even at positions closer to the turbine, the wake dynamics still appear to be dominated by inflow turbulence, resulting in minimal differences between the fixed-bottom and surge cases.

To quantify these contributions, the wake motion induced by meandering is estimated by tracking the instantaneous position of the wake centre over time. Considering the strong instabilities in the wake velocity field caused by the combined effects of turbulence and platform-induced oscillations, the estimation of the wake centre position is performed on different horizontal lines at hub height and is preceded by data processing aimed at improving robustness. The commonly used centre-of-mass approach (Hodgson et al., 2023) was found to be sensitive to instantaneous wake asymmetries induced by turbulent fluctuations and platform motion, which do not necessarily reflect the global displacement of the wake. Moreover, under the operating conditions analysed, the overall wake displacement is relatively small, prompting the adoption of a more robust method that is less affected by the instantaneous asymmetry of the velocity profile. First, the deterministic contribution due to platform motion is removed. This is achieved by subtracting the phase-averaged velocity signal at the platform motion frequency from the instantaneous signal, effectively filtering out the platform-induced oscillation and stabilizing the wake profile. To further suppress instantaneous wake instabilities caused by turbulence, each streamwise velocity profile is approximated at every time step using a Gaussian fitting procedure. As an illustrative example of the Gaussian fitting method, Fig. 19a shows the streamwise velocity profile at a generic time instant along with the corresponding fitted Gaussian curve for the turbulent surge case. The wake centre is therefore identified as the centre of the Gaussian curve at each instant. The resulting time series of the Gaussian centre position represents the temporal evolution of the wake centreline and is used to characterize wake meandering. This single-Gaussian approach is particularly well suited for the far-wake region, where wake meandering is most pronounced and where the analysis is primarily focused.

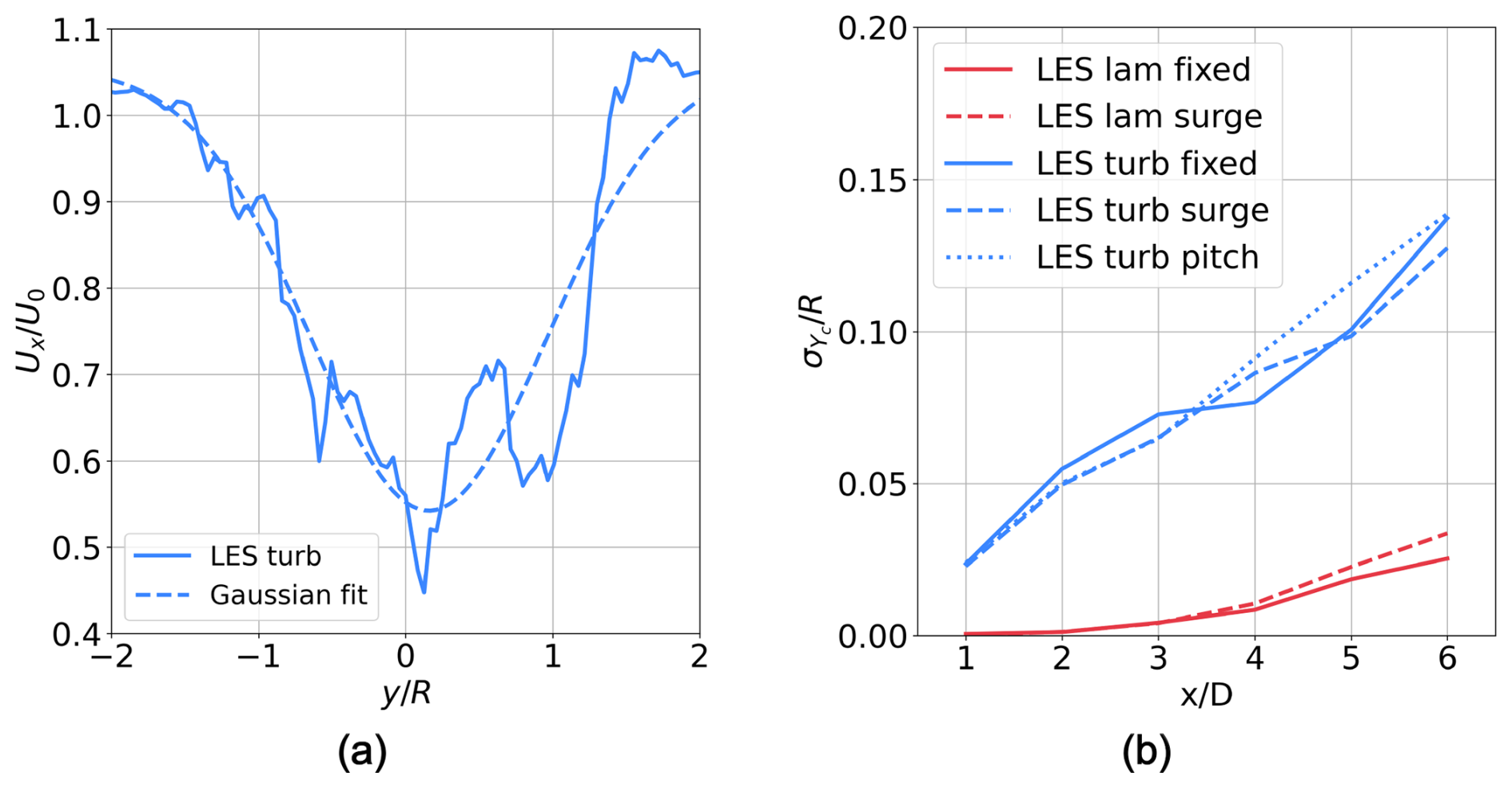

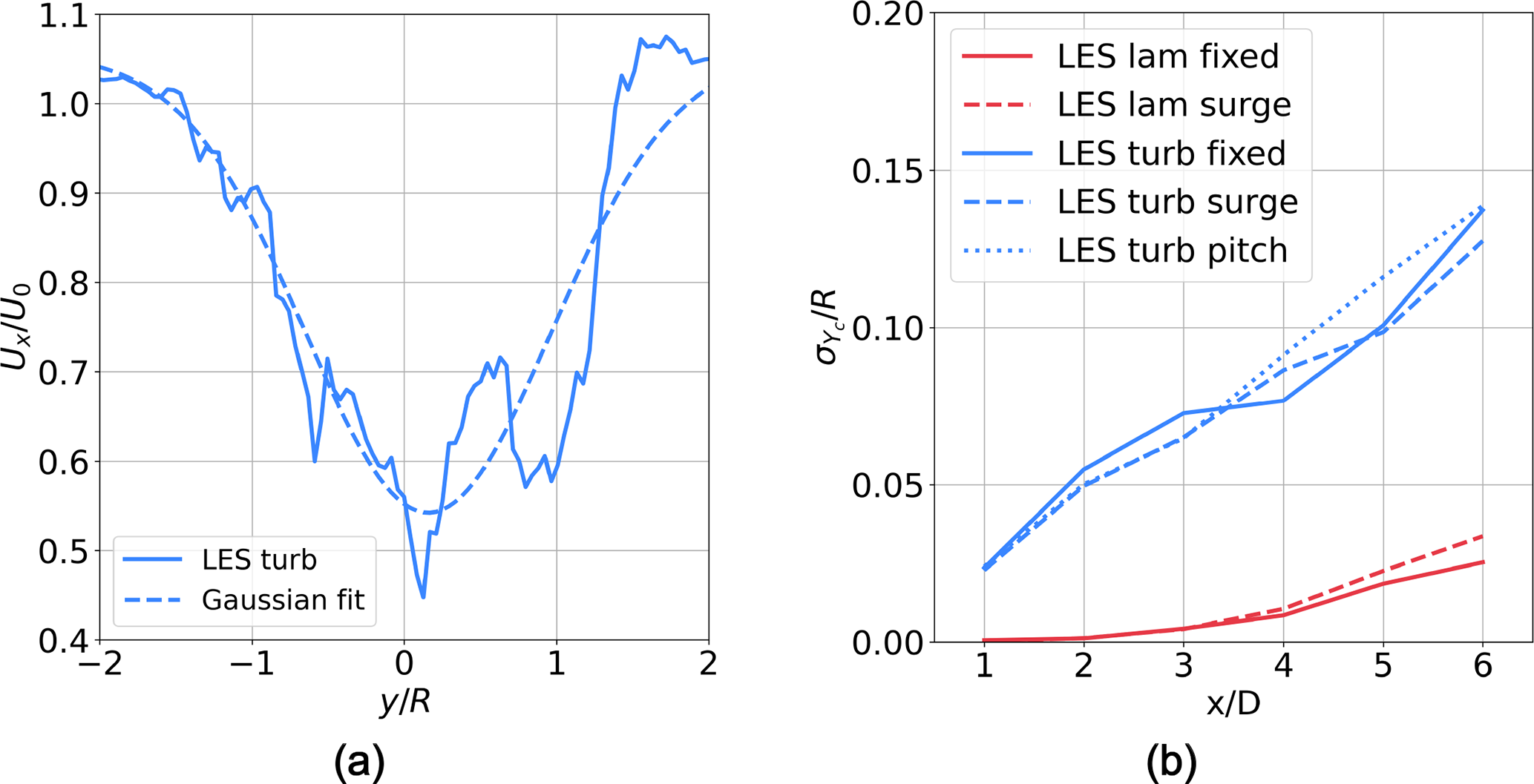

Figure 19 (a) Instantaneous axial velocity profile and corresponding Gaussian fit at $x/D=\mathrm{5}$ for the turbulent surge case. (b) Standard deviation of the wake centre position in LES calculations.

To quantify wake meandering, the standard deviation of the wake centre position (σ_Y) is computed and shown in Fig. 19b for all the LES cases analysed in this study. The laminar cases exhibit negligible meandering, confirming, as previously discussed, that surge motion does not trigger wake meandering in these working conditions. In contrast, the turbulent simulations display significantly higher meandering as a result of the inflow-turbulence-induced instabilities. The differences among the turbulent cases, fixed bottom, surge, and pitch, are minimal, further confirming that, under the conditions examined, the effect of platform motion on wake meandering is not pronounced, either in surge or in pitch.

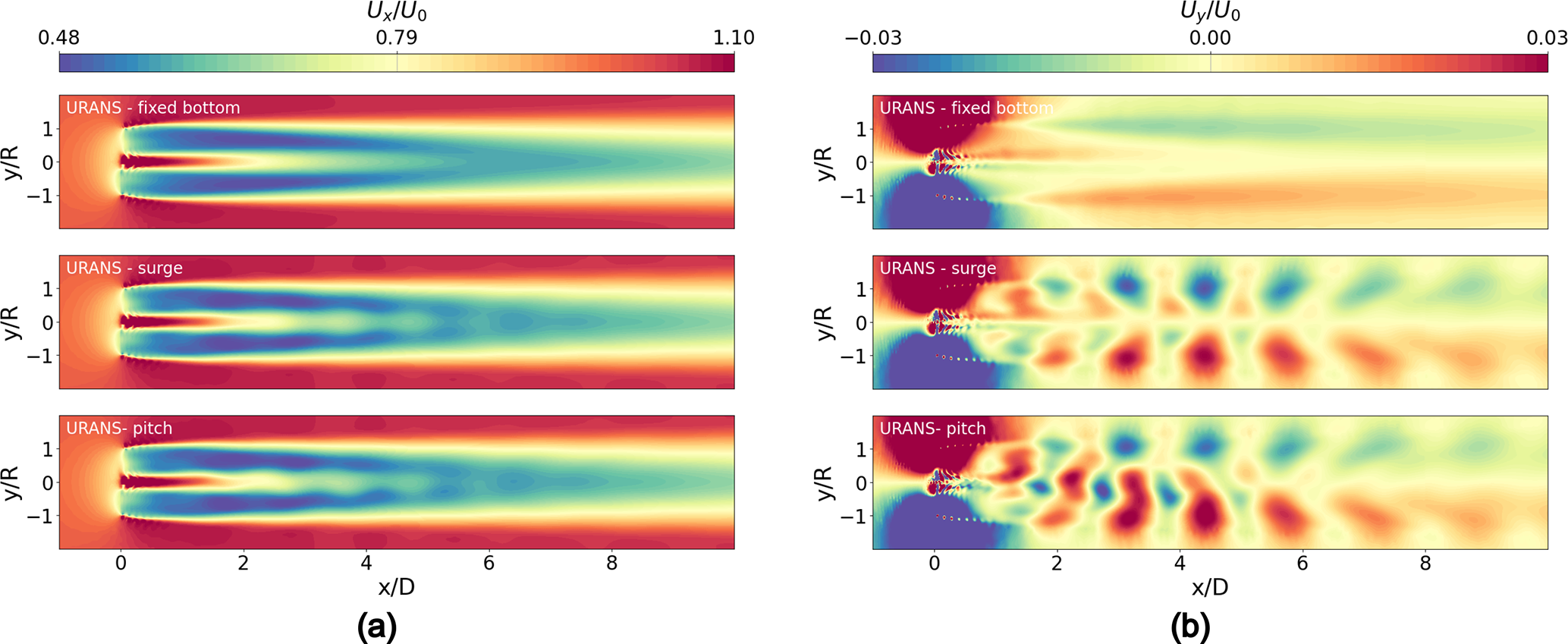

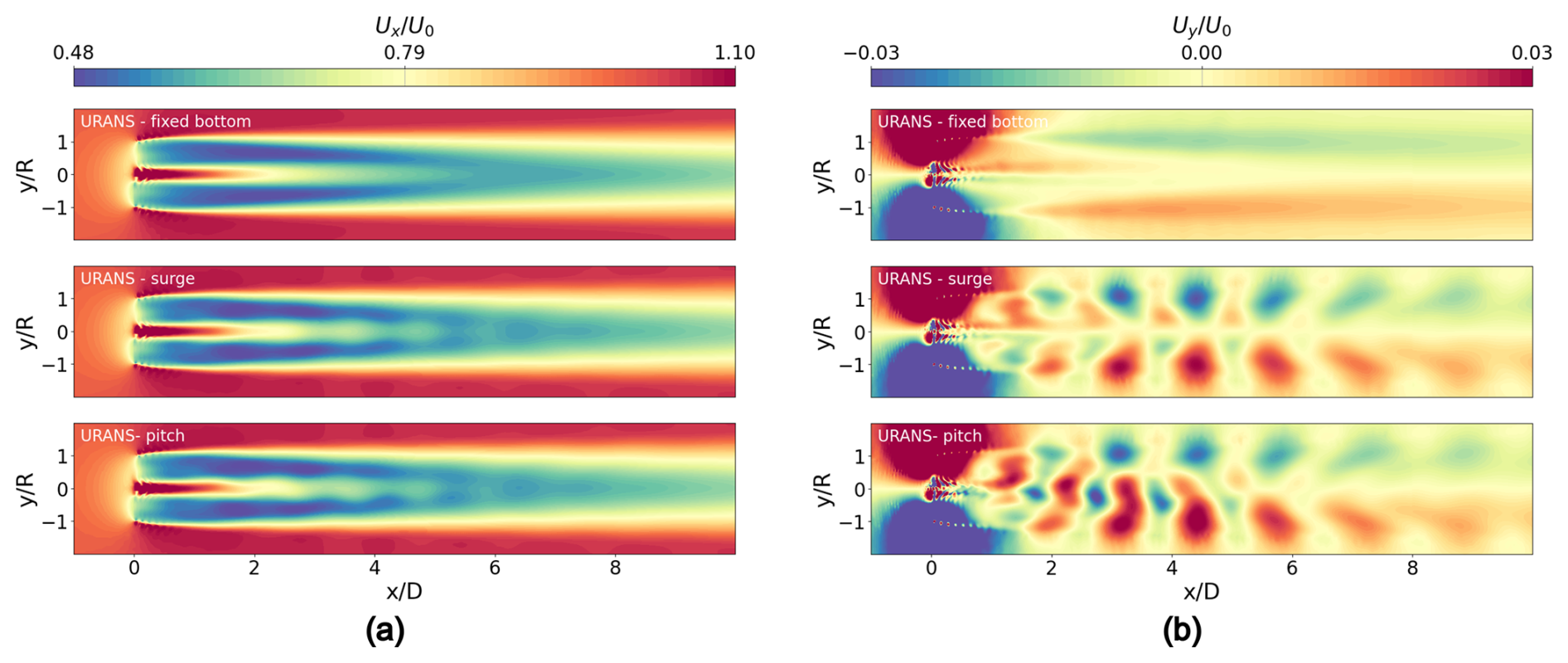

Figure 20 Instantaneous streamwise and transverse velocity contours on a horizontal plane from various URANS simulations. (a) Streamwise velocity. (b) Transverse velocity.

With the origin of wake meandering established through turbulent LES calculations, the question arises whether URANS models are capable of capturing this phenomenon, which is inherently linked to turbulent flow instabilities. Figure 20 presents the axial and transverse velocity fields from the URANS simulations for the fixed-bottom, surge, and pitch cases on a horizontal plane.

Figure 20a does not show any evident wake meandering. The transverse velocity pattern in the surge case of Fig. 20b consistently resembles what is observed in the laminar LES surge case, exhibiting a symmetric distribution of positive and negative velocity regions that contributes to wake stabilization. In contrast, the pitch case in Fig. 20b displays slight asymmetries up to 5 D, though these remain insufficient to trigger wake meandering. As a result, the URANS simulations reveal no displacement of the wake centre.

This section has therefore examined the origin of the wake meandering captured in LES calculations and provided a quantitative characterization of the phenomenon. Since the nature of wake meandering is strongly dependent on turbulent flow instabilities, only LES calculations are able to capture it accurately. This highlights the importance of using high-fidelity approaches when investigating wake dynamics that are tightly coupled with turbulence structures, as they are essential for accurately simulating and quantifying these phenomena and assessing their impact on downstream turbines in real atmospheric/turbulent inflows.

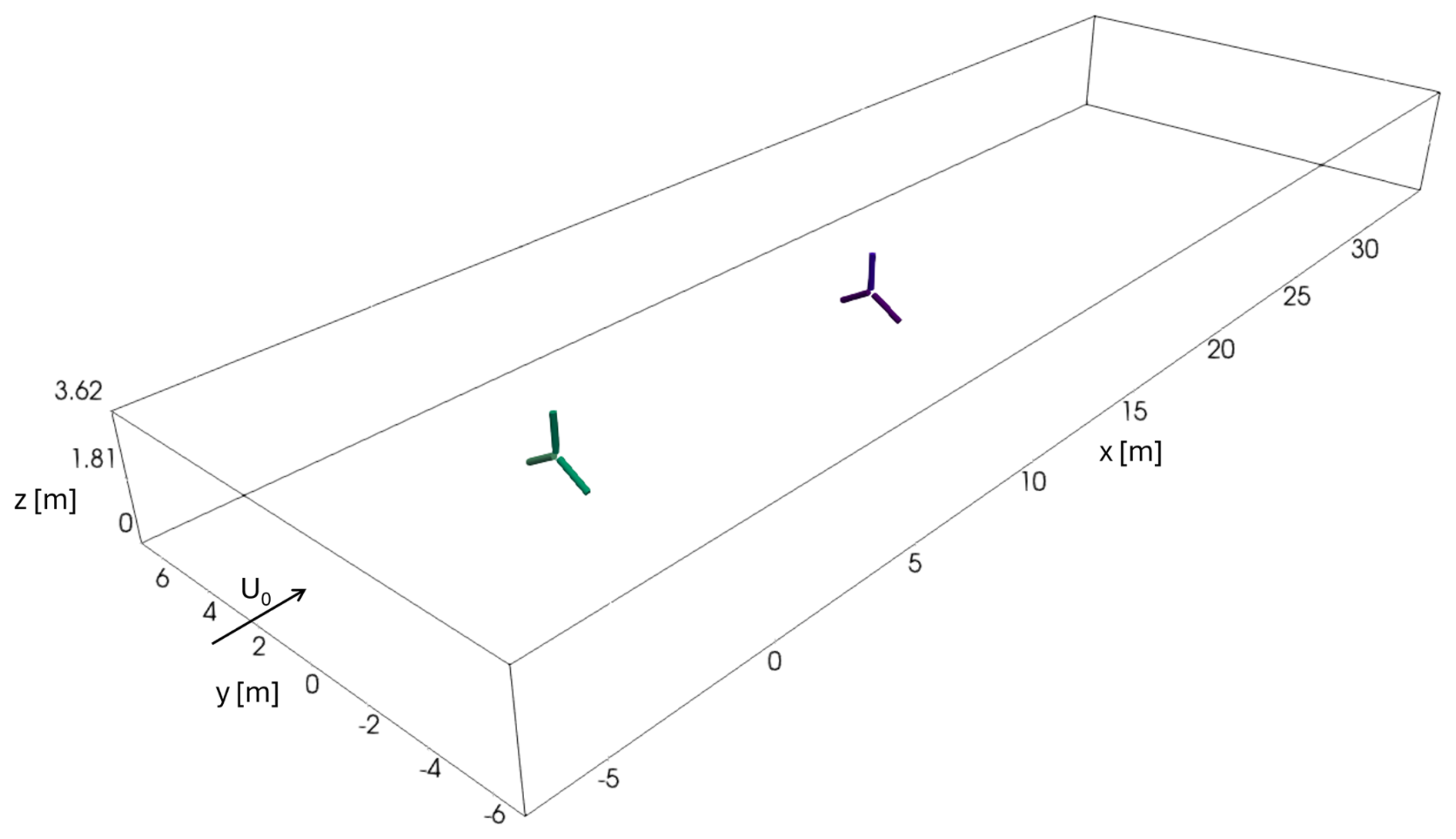

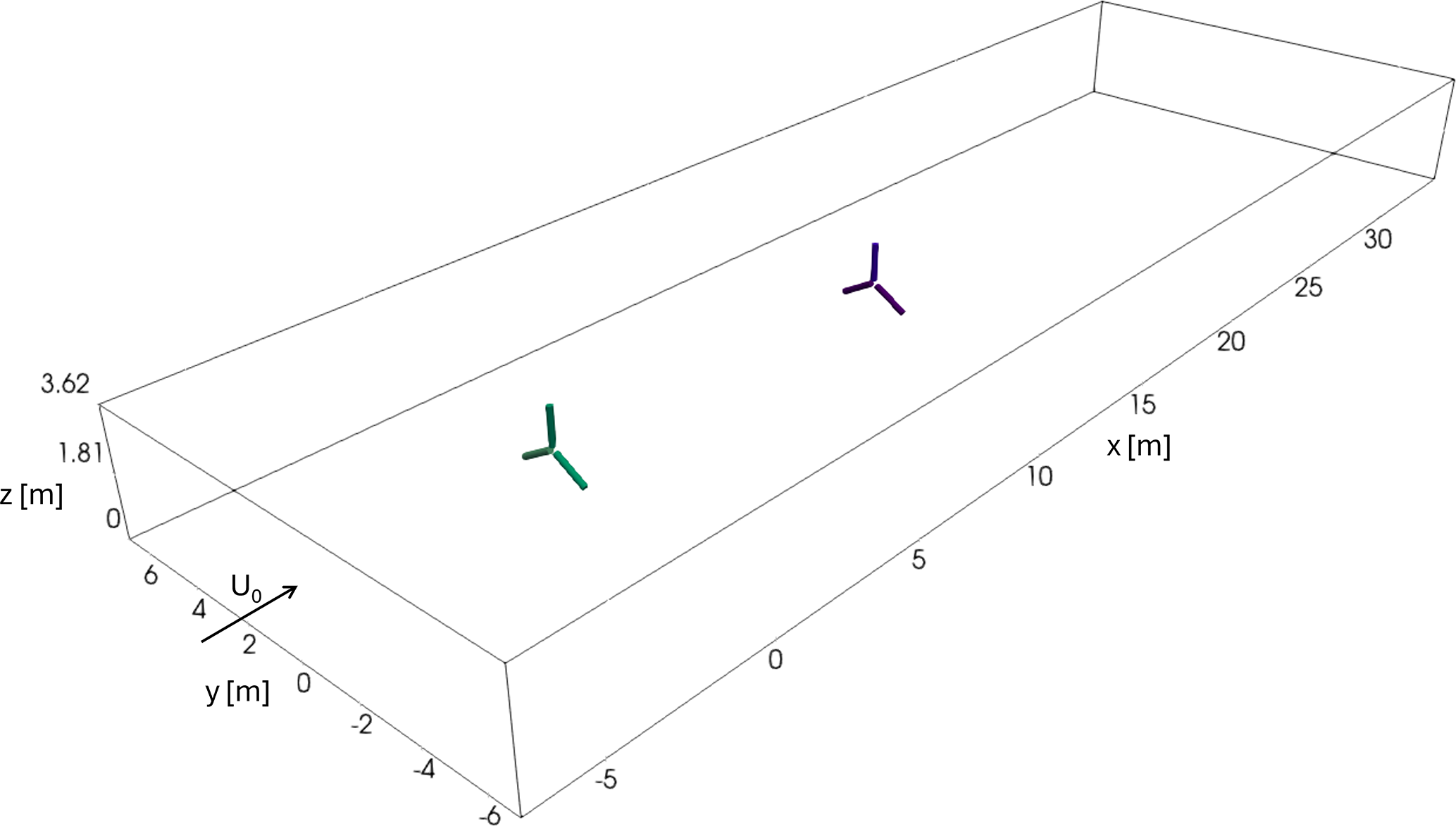

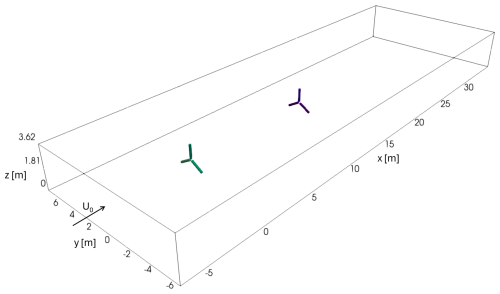

Figure 21 Numerical domain and turbine position in the multiple-turbine configuration.

6 Double-turbine rotor loads

In this section, the objective is to analyse the impact of the previously characterized wake on the loads experienced by a downstream wind turbine. To this end, a second turbine is introduced into the numerical domain, positioned 5 D downstream from the upstream turbine and aligned with it. The layout of the turbines within the computational domain is illustrated in Fig. 21. From this point onward, the term WT refers to wind turbine.

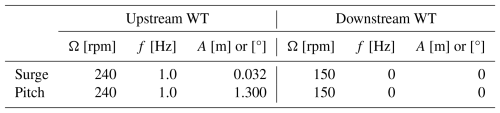

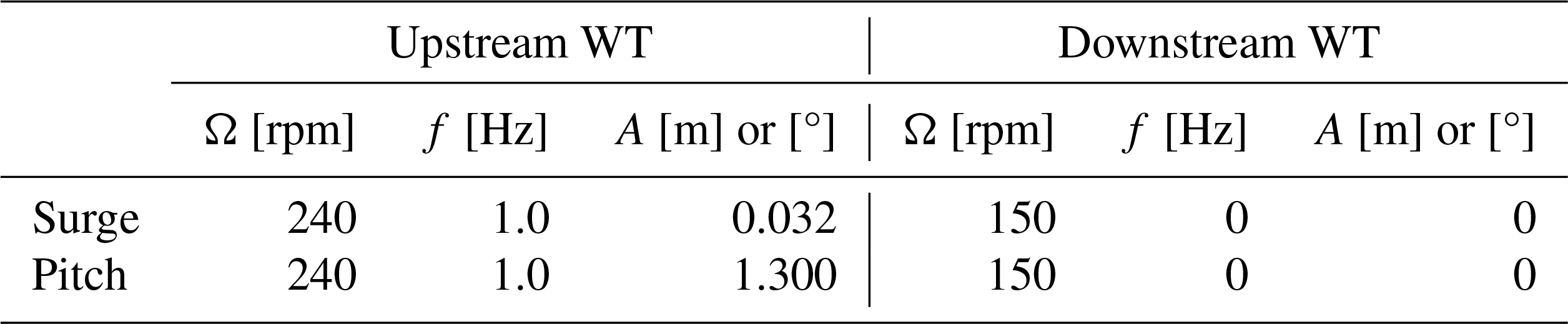

Table 5 Load cases in the double-turbine configuration.

The focus is specifically on two operating scenarios, summarized in Table 5. In both cases, the upstream turbine undergoes surge and pitch platform motion, with the same amplitude and frequency as the single-turbine configuration analysed in the previous sections. The downstream turbine is kept in a fixed-bottom position, allowing for the evaluation of load fluctuations induced solely by the oscillating wake of the upstream turbine. The rotational speed of the upstream turbine is kept the same as in the previous cases, corresponding to a TSR of 7.5. The rotational speed of the downstream turbine is set to 150 rpm, resulting in a TSR ranging between 7 and 8, depending on whether the inflow velocity is calculated as the mean velocity sampled between 4 D and 5 D downstream of the upstream turbine in the turbulent LES calculations with a single rotor.

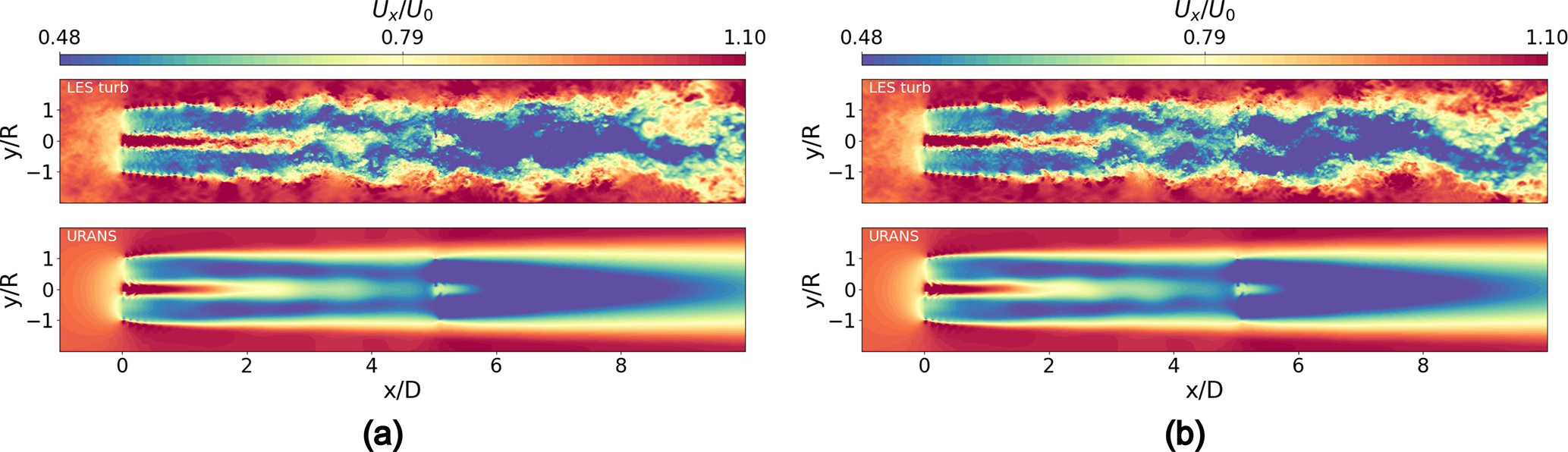

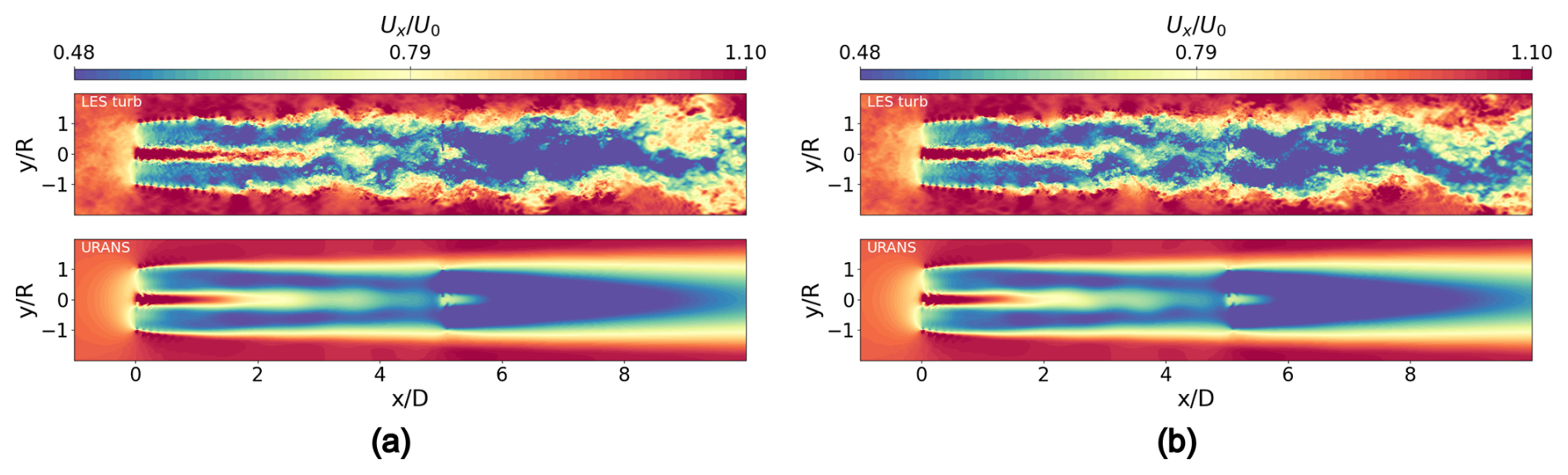

Figure 22 Instantaneous axial velocity field on a horizontal plane in the double-turbine configuration. (a) Surge case. (b) Pitch case.

Figure 22 shows the instantaneous streamwise velocity fields on a horizontal plane at hub height for the double-turbine configuration, for both surge (Fig. 22a) and pitch (Fig. 22b) cases. Once again, the comparison between the LES and the URANS calculations highlights their different accuracy in capturing the flow field, particularly regarding the instabilities in the wake of the downstream turbine.

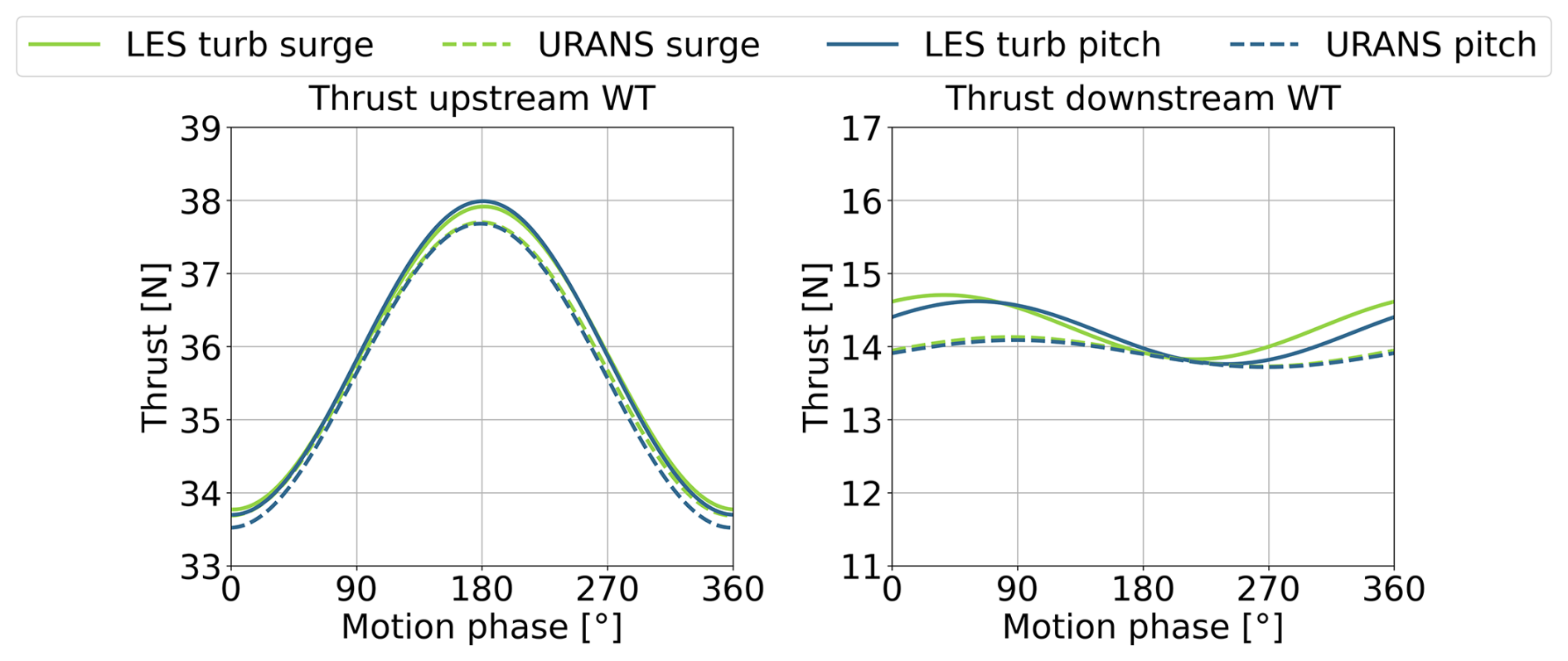

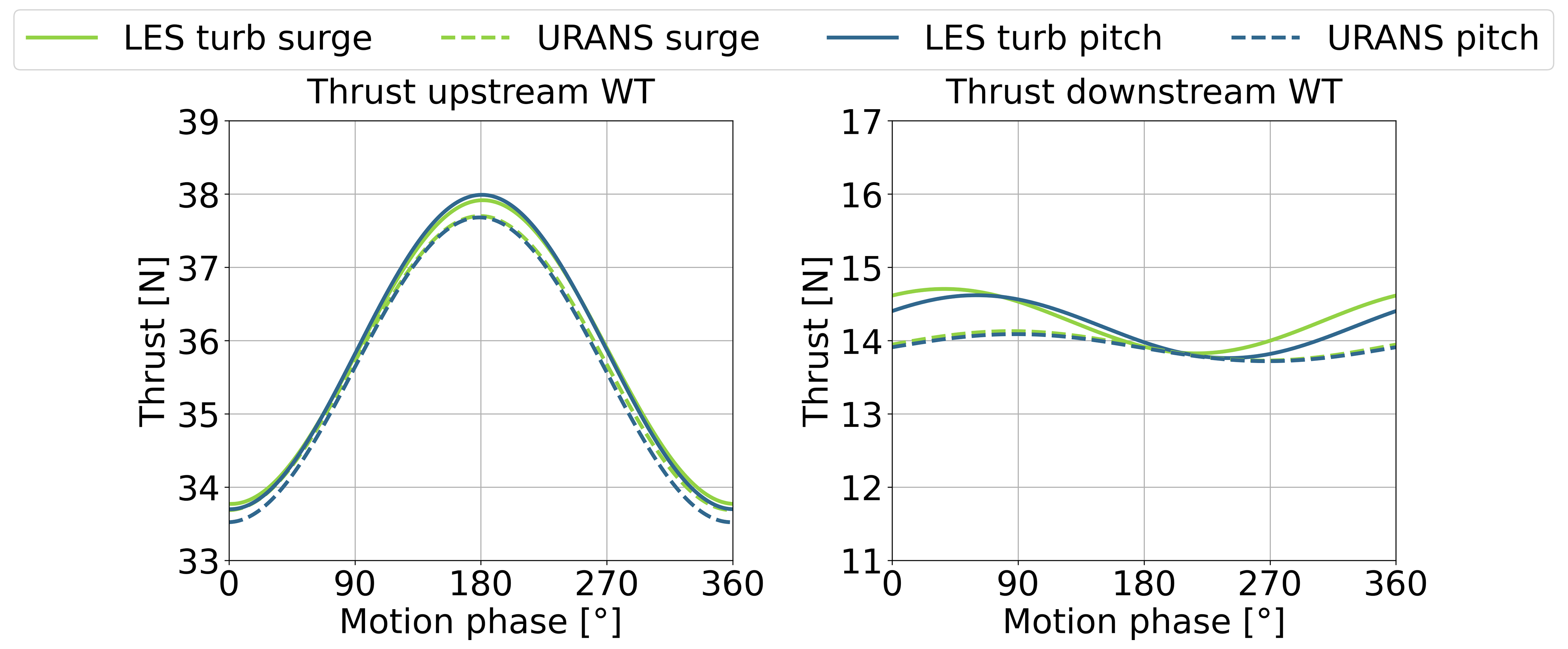

Figure 23 Thrust filtered at the platform motion frequency for the upstream and downstream turbines.

Figure 23 shows the thrust force filtered at the platform motion frequency over one motion period, for both the upstream and the downstream turbines. Specifically, it presents a comparison between the pitch and surge cases, as well as between turbulent LES and URANS simulations. For the upstream turbine, the thrust force exhibits a clear oscillatory behaviour dominated by the platform motion, consistent with the single-turbine configuration previously analysed (Fig. 4). The downstream turbine also exhibits an oscillatory thrust response, though with a markedly reduced amplitude. This behaviour aligns with the oscillations observed in the wake at a distance of 5 D. Indeed, Fig. 15 highlights a general phase shift: URANS tends to estimate the velocity trend with 90° phase shift after the LES prediction, and this phase lag is similarly reflected in the thrust signal. While URANS simulations predict nearly identical thrust responses for both surge and pitch motions, the LES results exhibit a slight phase difference between the two cases, which is also visible in Fig. 15. Consistent with the wake analysis, URANS generally underestimates the oscillation amplitude compared to LES.

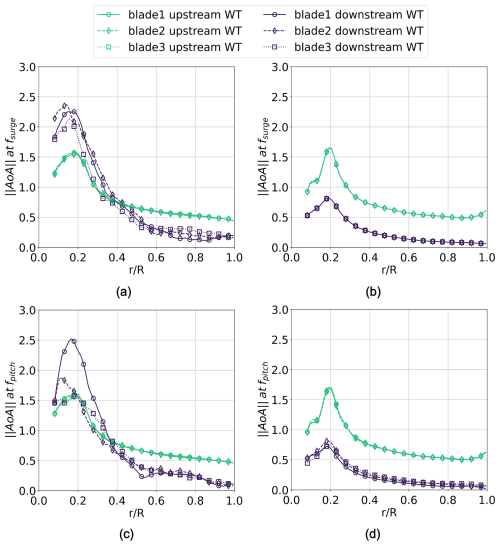

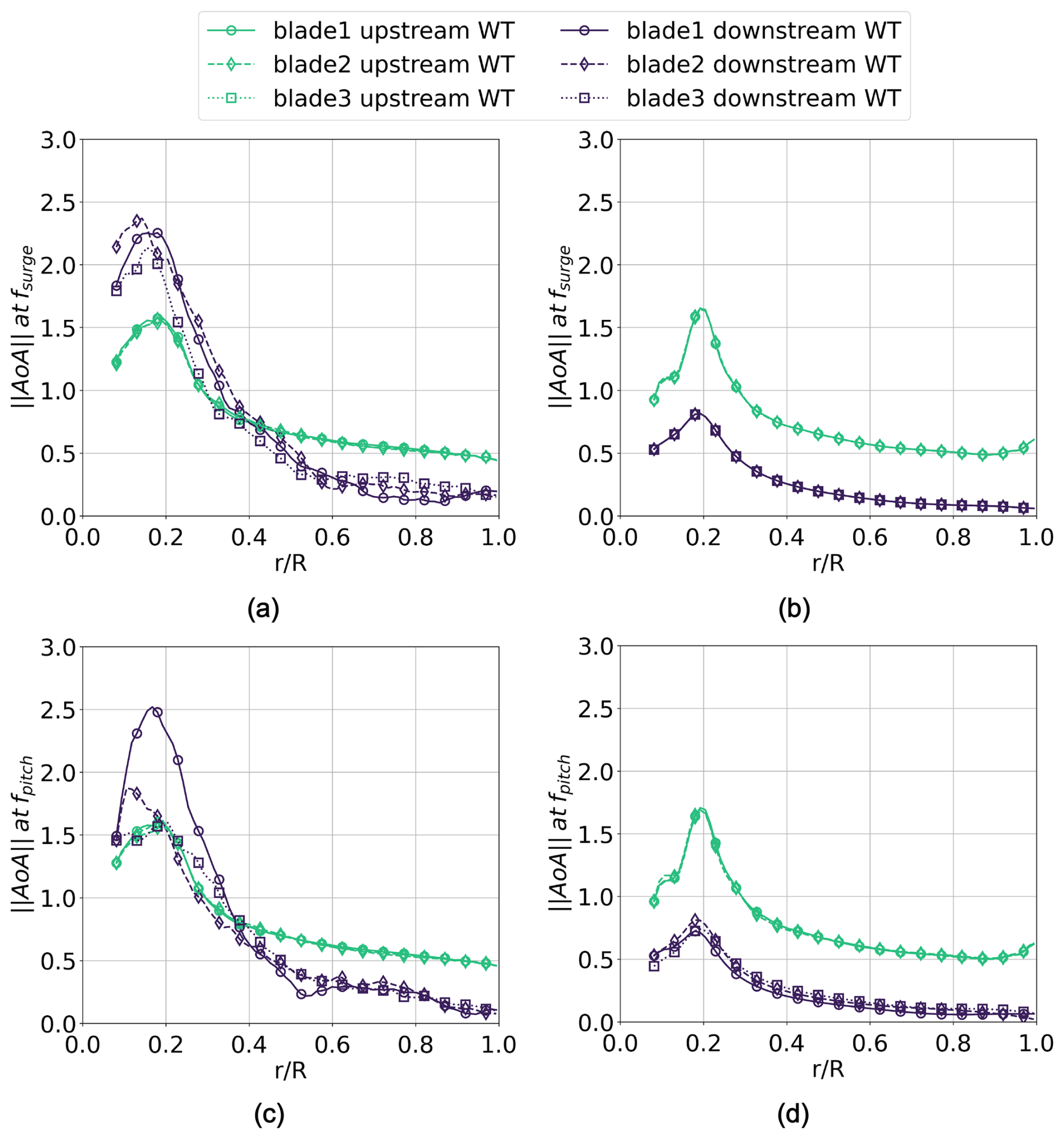

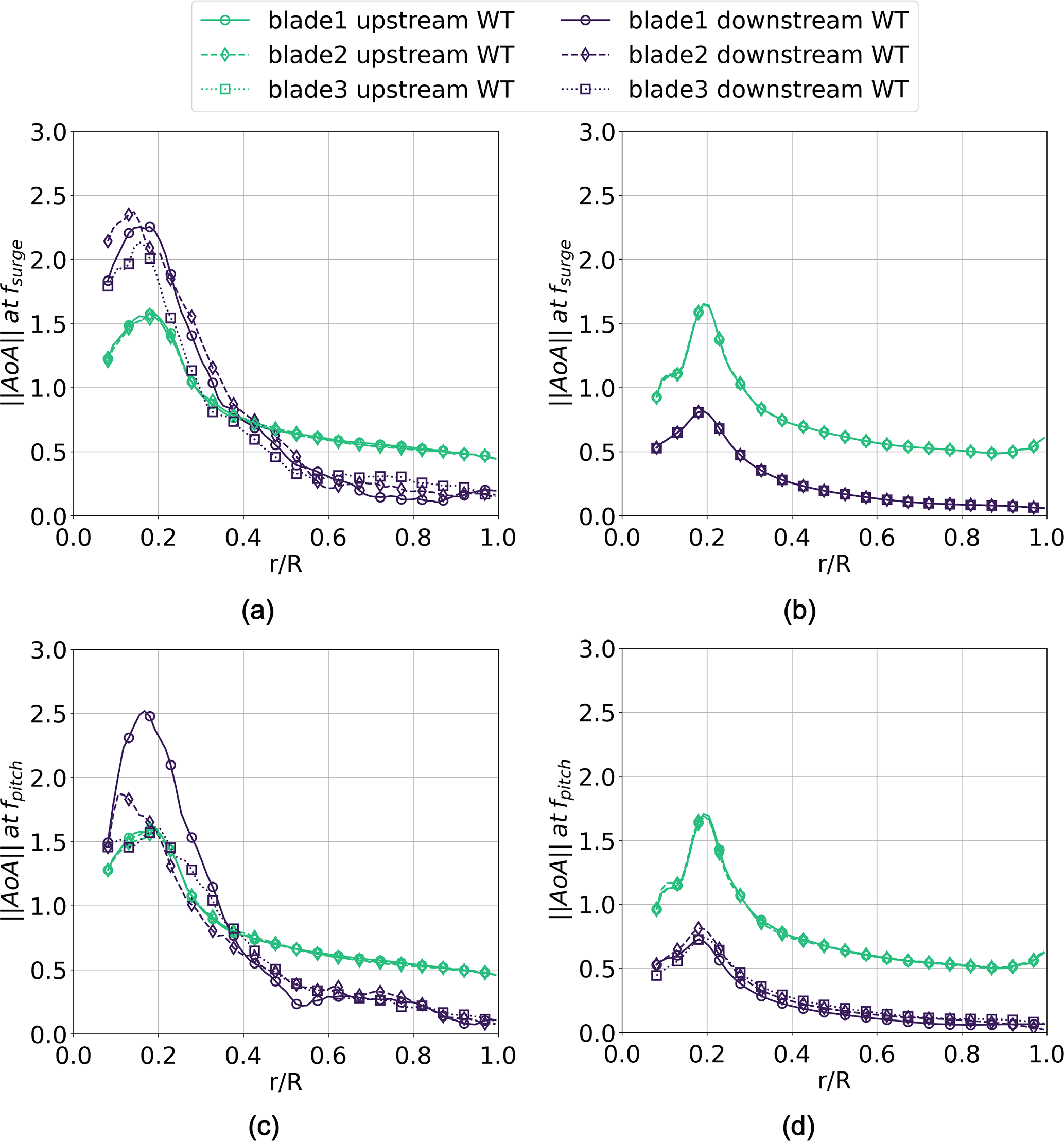

Figure 24 Spanwise attack angle amplitude at the motion frequency. (a) Surge case – LES turbulent. (b) Surge case – URANS. (c) Pitch case – LES turbulent. (d) Pitch case – URANS.

To further investigate the local effects of platform motion on turbine loads, an analysis of spanwise quantities is presented. In particular, Fig. 24 shows the radial distribution of the amplitude of the phase-averaged angle of attack at the frequency of the upstream turbine platform motion. To provide a comprehensive overview, the trend is reported for both the upstream and the downstream turbines, under surge and pitch motions, using both turbulent LES and URANS simulations. To identify potential asymmetries induced by pitch motion or inherent in the wake, the results are presented for all three blades. For the upstream turbine, this representation highlights the AoA variations directly caused by the platform motion itself, and the comparison between blades helps detect any asymmetries. For the downstream turbine, the analysis reveals which rotor regions experience the greatest AoA fluctuations due to wake velocity oscillations, and the blade-to-blade comparison helps assess any non-uniformities in the wake impacting the downstream rotor.

Starting with the upstream turbine, both LES and URANS predict comparable AoA amplitudes across all radial positions, with slight differences near the root sections, likely due to different representations of the hub vortices. In all plots, a larger AoA amplitude is observed in the root region, consistent with the fact that the lower peripheral speed makes the AoA more sensitive to variations in apparent wind speed induced by the platform motion. Furthermore, the comparison between the three blades reveals no significant asymmetries in the pitch motion case.

For the downstream turbine, larger AoA amplitudes are again observed in the root region, attributed to the same peripheral speed effect, in both LES and URANS calculations. However, in the LES results, these amplitudes are further amplified from the root up to about 50 % span due to stronger wake oscillations, as shown in Fig. 13. The blade-to-blade comparison in the LES cases indicates a greater inflow non-uniformity in the root region. In the URANS simulations, the comparison reveals a slightly more visible asymmetry in the pitch case.

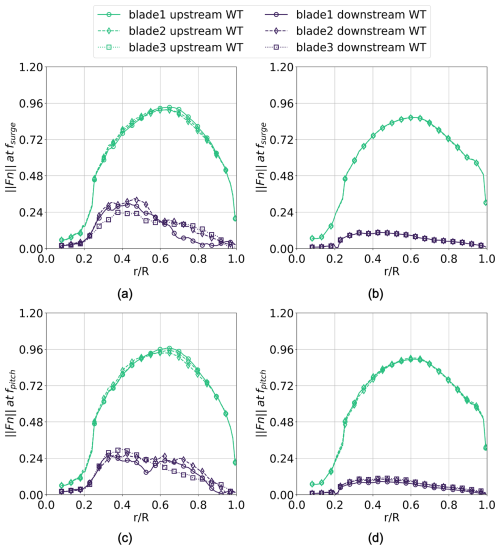

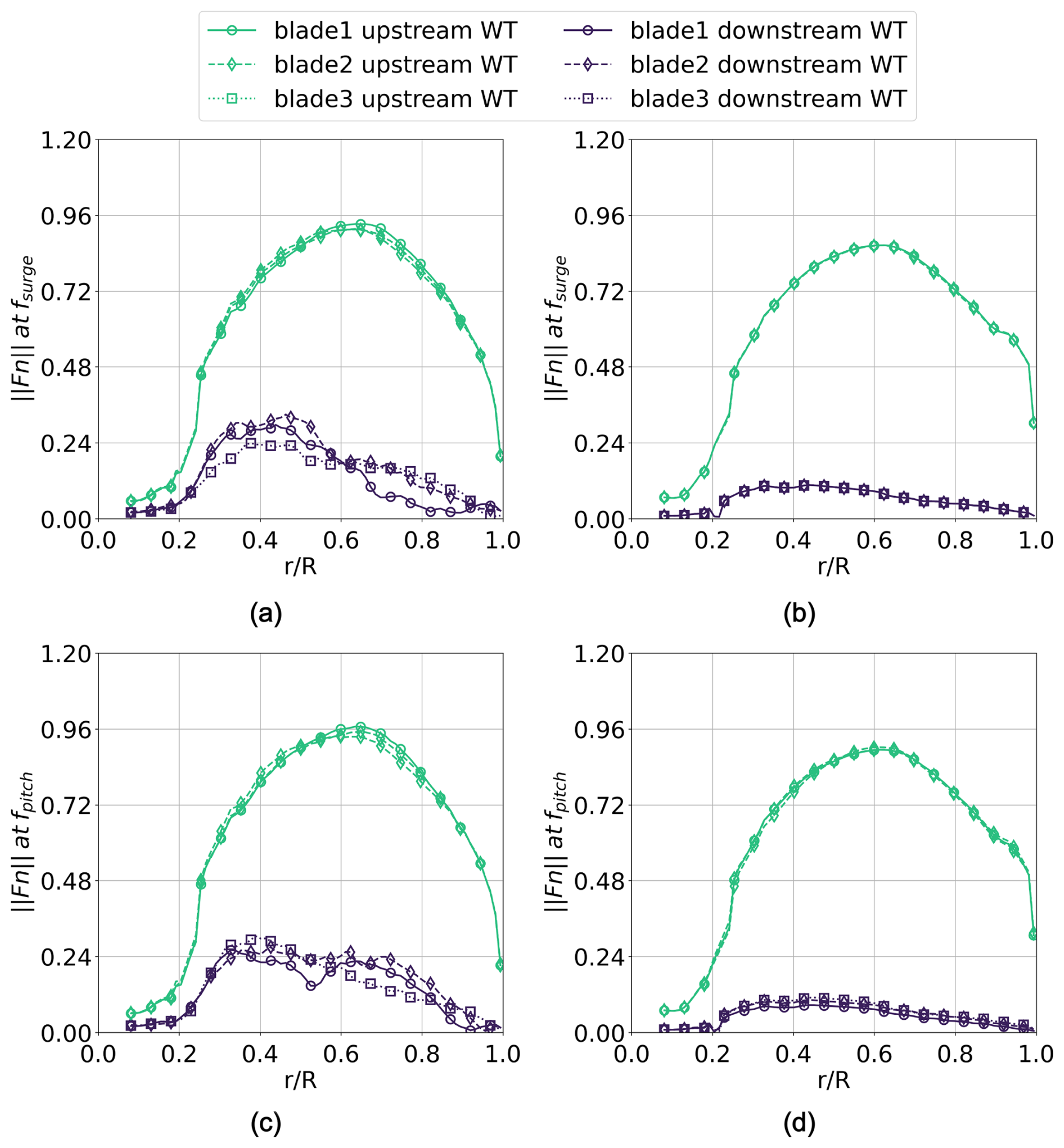

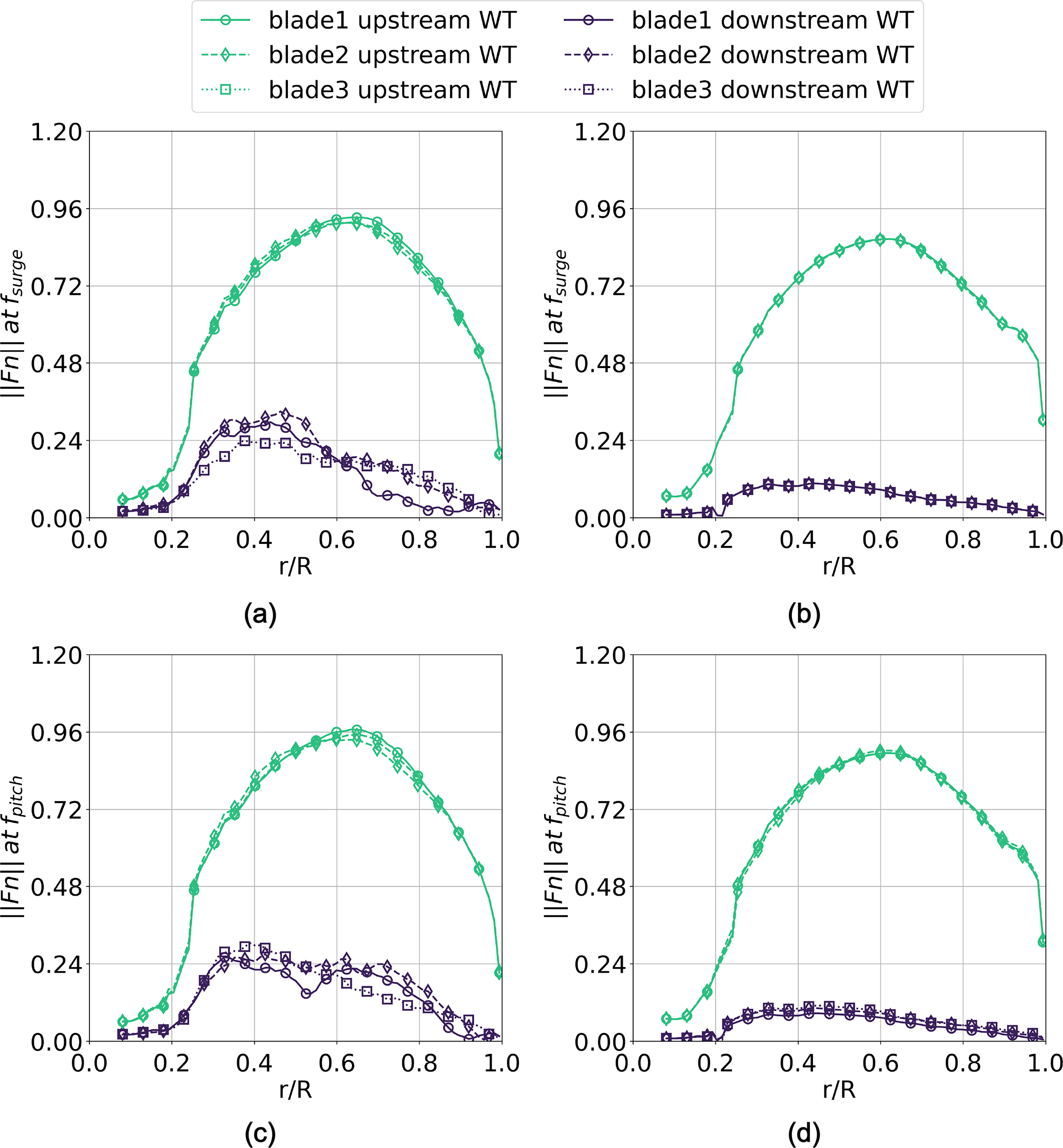

Figure 25 Spanwise normal-force amplitude at the motion frequency. (a) Surge case – LES turbulent. (b) Surge case – URANS. (c) Pitch case – LES turbulent. (d) Pitch case – URANS.

The analysis of the angle of attack is insightful, as this quantity is directly linked to wake velocity and allows for a verification of consistency with the findings discussed in the previous sections. However, the primary focus is the effect of platform motion on turbine loads. Accordingly, Fig. 25 presents the amplitude of the normal force for the same cases shown in Fig. 24. For the upstream turbine, no significant differences are observed between the surge and pitch cases when comparing the same numerical approach. The maximum amplitude predicted by URANS is slightly lower than that of LES, with the peak occurring at 65 % of the blade span in the LES results and at 60 % in the URANS results. For the downstream turbine, overall amplitudes are lower along the entire span compared to the upstream turbine. In particular, URANS simulations show more limited amplitudes, while LES results exhibit more pronounced blade-to-blade non-uniformities. Due to the spatial distribution of the wake-induced oscillations impacting the downstream turbine, the maximum amplitude of the normal force occurs around 40 % of the blade span in both LES and URANS calculations.

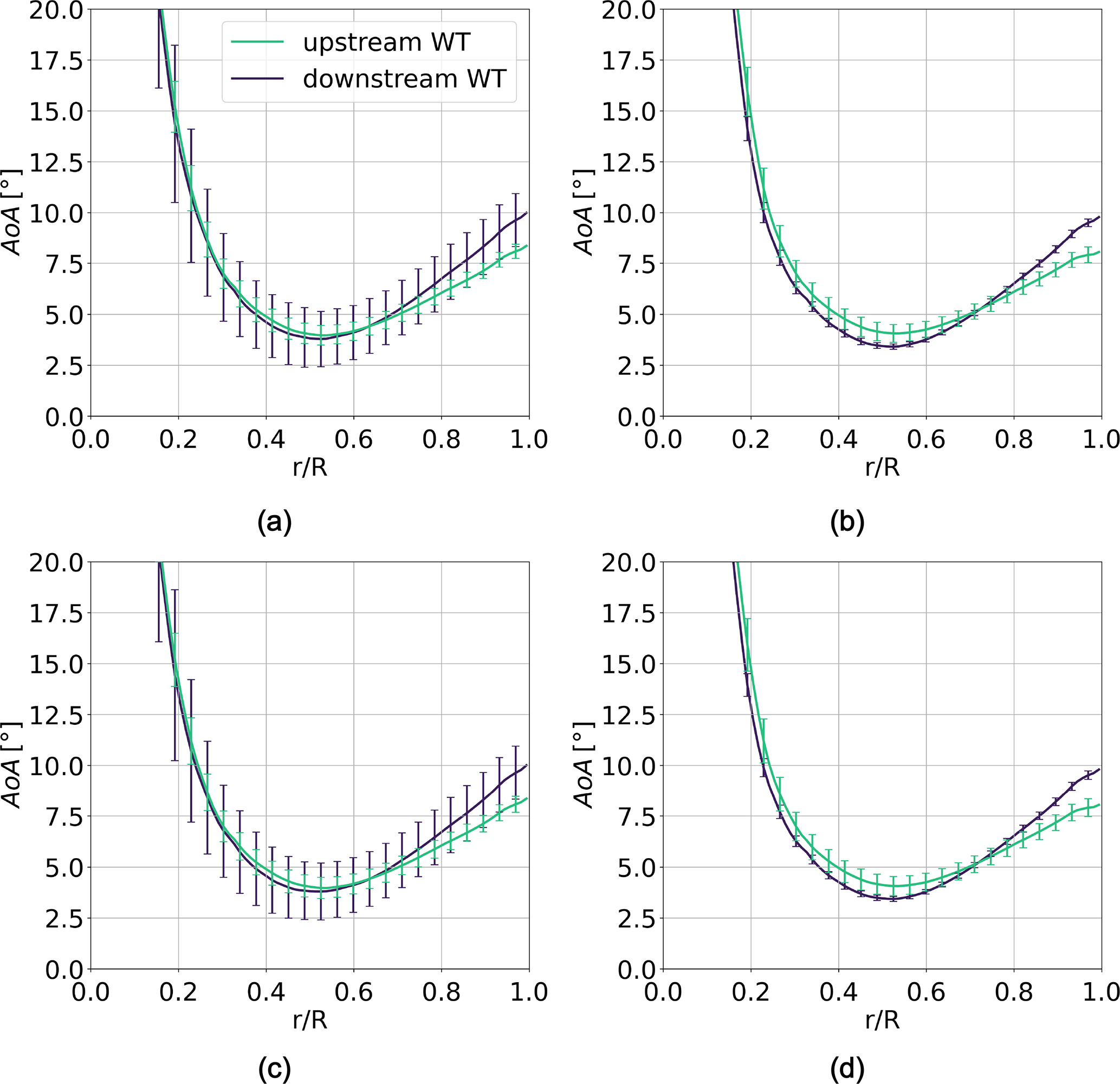

Figure 26 Spanwise mean and standard deviation of the attack angle. (a) Surge case – LES turbulent. (b) Surge case – URANS. (c) Pitch case – LES turbulent. (d) Pitch case – URANS.

The previous analysis has highlighted the extent of the variations in angle of attack and normal force primarily driven by velocity fluctuations induced by platform motion. The focus now shifts to evaluating the combined effect of platform motion and turbulence on these quantities. Figure 26 presents the mean value and standard deviation of the angle of attack for both upstream and downstream turbines, under surge and pitch conditions, using LES and URANS calculations. In terms of mean values, LES and URANS show good agreement for both operating conditions. For the upstream turbine, angle of attack variations are predominantly driven by platform motion due to the low turbulence intensity of the inflow. As a result, URANS and LES predict similar overall variability. In contrast, for the downstream turbine, LES results show significantly higher variability, dominated by velocity fluctuations caused by the highly turbulent wake. URANS simulations, on the other hand, only capture the deterministic contribution from the upstream platform motion and therefore predict much lower variability. Once again, no notable differences are observed between surge and pitch cases when considering the same numerical approach.

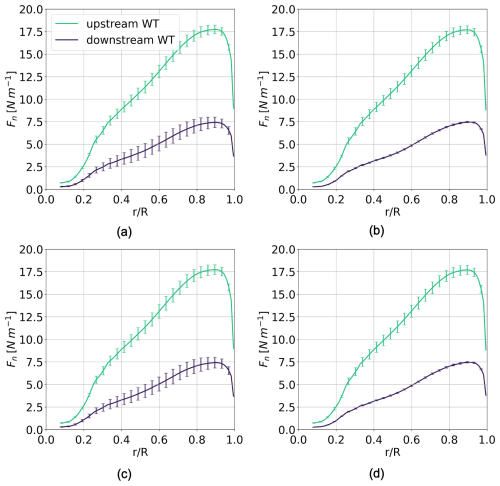

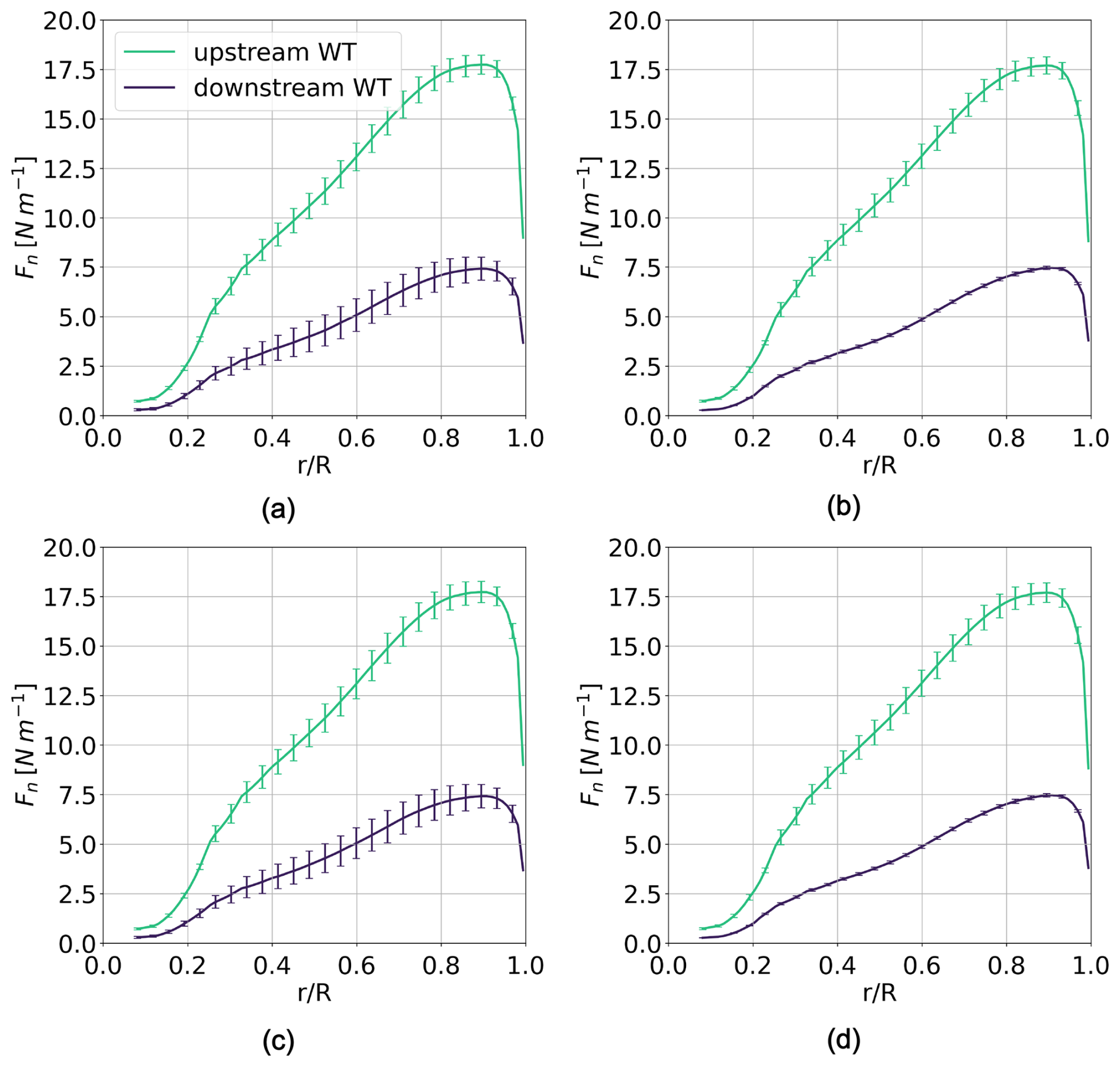

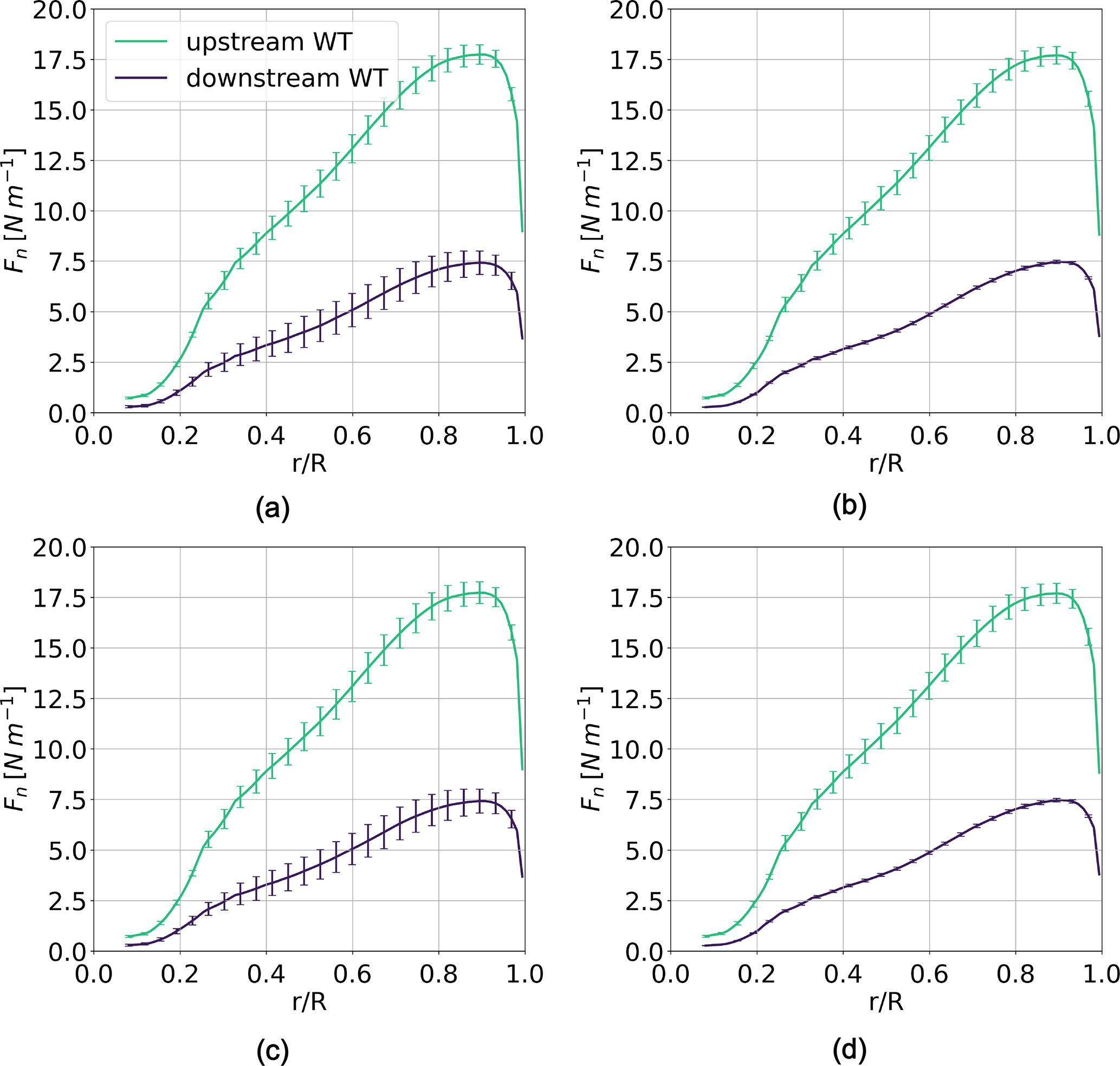

Figure 27 Spanwise mean and standard deviation of the normal force. (a) Surge case – LES turbulent. (b) Surge case – URANS. (c) Pitch case – LES turbulent. (d) Pitch case – URANS.

A similar analysis is provided in Fig. 27 for the normal force to assess the variability of aerodynamic loads. Consistent with previous observations, where variability is dominated by platform motion (upstream turbine), URANS captures similar variations to LES. Where turbulence dominates (downstream turbine), URANS continues to exhibit only the deterministic effect of the upstream platform motion. Therefore, this analysis has enabled a comprehensive characterization of the loads acting on both turbines, in both global and local terms. URANS simulations clearly demonstrate a systematic underestimation of load amplitudes on the downstream turbine due to wake-induced oscillations, as well as a significant under-prediction of the overall load variability. Such an underestimation could severely compromise the accuracy of structural assessments, potentially leading to reduced reliability in predicting turbines' long-term performance and fatigue life.

7 Conclusions

This work aims to provide insights into the wake dynamics of floating wind turbines and their impact on the loads experienced by a downstream turbine. Specifically, the study has two complementary objectives. First, it performs a methodological comparison between URANS and LES with laminar and turbulent inflow to isolate the effects of platform motion and inflow turbulence on wake dynamics and to evaluate whether a standard URANS setup is capable of accurately capturing floating turbine wakes. Second, it validates numerical results against experimental measurements of loads and wake characteristics for a single floating turbine, thereby ensuring the credibility of the simulations and enhancing the value of the methodological analysis.

A numerical actuator line model was employed to reduce the computational cost of rotor modelling while maintaining the accuracy of CFD predictions for the wake. The simulations were specifically designed to replicate selected experimental cases by prescribing sinusoidal surge and pitch motions. Only a limited set of platform motion scenarios was considered, so the analysis of the effects of platform motion and inflow turbulence on key wake phenomena, such as wake recovery, dynamic structures, and wake meandering, is specific to the operating conditions investigated in this study.

Validation of the upstream turbine loads under floating conditions showed good consistency across the different numerical approaches for both surge and pitch platform motions. In general, the simulations tended to slightly underpredict thrust and overpredict torque compared to experiments, even though absolute deviations remained limited. Good agreement with experimental data was achieved in terms of load amplitudes, particularly for thrust and torque in surge motion and for thrust in pitch motion. Wake validation, based on mean velocity profiles and turbulence intensity distributions, highlighted the essentiality of turbulent inflow in LES calculations and confirmed the superior ability of LES to reproduce the local distribution of turbulence intensity. Nevertheless, URANS proved to be capable of capturing mean velocity profiles consistent with both experiments and turbulent LES results, especially in the near wake. In terms of wake recovery, the numerical simulations showed good consistency between wake turbulence levels and the corresponding recovery rate. As already reported in the literature, the wake recovery benefit induced by platform motion is evident only under ideal laminar inflow conditions. Under turbulent inflow, the wake recovers more rapidly, and the beneficial effect of platform motion is significantly diminished. The comparison between turbulent LES and URANS highlighted a slower wake recovery in URANS, primarily in the far wake.

The analysis of wake oscillation propagation further highlighted the inadequacy of laminar inflow LES and revealed a slight phase-shift discrepancy between experimental data and both URANS and turbulent LES results. However, in terms of oscillation amplitudes, turbulent LES provided estimates in good agreement with experiments, while URANS, with the setup adopted in this study, underestimated the effect of platform motion. No relevant differences were observed between surge and pitch cases, in terms of either phase shift or amplitude. The spatial distribution of wake oscillations indicated that both turbulent LES and URANS captured more pronounced oscillations at 5 D downstream within the wake core ($y/R=\mathrm{-}\mathrm{0.5}$ to $y/R=\mathrm{0.5}$). Overall, the simulations exhibited fairly symmetric oscillations in the vertical plane, consistent with the perfectly symmetric inflow and turbine geometry. Once again, the URANS setup adopted in this study invariably underestimated oscillation amplitudes.

To complete the wake analysis, the phenomenon of wake meandering was examined both qualitatively and quantitatively to identify its origin. The availability of numerical simulations with varying fidelity levels and turbulence models, for both fixed-bottom and floating configurations, provided valuable insights into wake meandering under the studied conditions. The analysis compared laminar fixed-bottom and laminar surge floating cases to isolate the effect of platform motion from turbulent inflow. The comparison between laminar and turbulent fixed-bottom configurations highlighted the influence of turbulent inflow on wake meandering, while turbulent LES comparisons between fixed-bottom and surge cases assessed the relative and combined effects of platform motion and turbulence. Specifically, turbulent LES calculations (with and without platform motion) revealed a wake meandering mechanism characterized by a distinct transverse velocity pattern and a characteristic frequency ($\mathit{St}\in [\mathrm{0.42},\mathrm{0.53}]$). Quantitative analysis of the wake centre displacement showed negligible wake meandering in laminar simulations, demonstrating that under the examined operating conditions, platform motion alone did not trigger the effect. Conversely, in turbulent simulations, the wake centre displacement was comparable across fixed-bottom, surge, and pitch cases, confirming that wake meandering is primarily driven by turbulent inflow, which enhances wake instability and promotes its onset, while platform motion plays only a minor role. Given the turbulence-driven nature of the phenomenon, URANS simulations failed to capture wake meandering, resulting in negligible wake transversal displacement.

Finally, the impact of the characterized wake on the loads experienced by a downstream wind turbine was investigated. A second fixed-bottom turbine was placed 5 D downstream in the wake of the upstream floating turbine. Loads on both turbines were first analysed in terms of overall thrust force. The propagation of wake oscillations influenced the downstream turbine loads, causing slight oscillations of thrust. Consistent with the previous wake analysis, URANS simulations underestimated the mean value and oscillation amplitudes and exhibited a slight phase shift compared to turbulent LES results.

For a more detailed perspective, the radial distribution of angle of attack amplitude due to platform motion was examined. For the upstream turbine, AoA amplitude was dominated by the platform motion affecting the turbine itself; consequently, URANS and LES showed comparable amplitudes with no significant blade asymmetries. For the downstream turbine, both LES and URANS indicated increased AoA amplitude near the hub, partly due to lower peripheral velocity and partly due to larger oscillation amplitudes within the wake core. Regarding load amplitude, negligible differences were detected on the upstream turbine, whereas on the downstream turbine, URANS predicted smaller amplitudes and greater symmetry between blades. In terms of global variability of AoA and normal force, it was demonstrated that where variability is dominated by platform motion (upstream turbine), URANS captures variations similarly to LES. However, where turbulence dominates (downstream turbine), URANS only reflects the deterministic effects of upstream platform motion, missing the contribution of high turbulence intensity.

A detailed investigation on the impact of wake meandering on downstream turbine loads represents a natural extension of this study and will therefore be addressed in a future dedicated study.

In conclusion, this work provides a detailed methodological comparison between URANS and LES calculations of floating turbine wake dynamics, enriched by the availability of experimental data. The diverse set of numerical simulations allowed us to distinguish platform motion effects from turbulent inflow influence on wake features, specifically for the operating conditions considered in this study. The comparison between turbulent LES and URANS showed LES's ability to reproduce local turbulence intensity distributions and to capture oscillation amplitudes induced by platform motion. The URANS setup adopted in this study was found to be adequate in reproducing the mean wake velocity distribution in the near wake, but it underestimates far-wake recovery, oscillations, and downstream turbine load variability. URANS also failed to capture wake meandering ascribed to turbulent inflow instabilities, which is a prerogative of LES and high-fidelity models. The findings demonstrate that employing LES enhances the accuracy in estimating loads on downstream turbines, which is essential for their structural assessment within wind farms.

Appendix A: Validation of the numerical synthetic turbulent inflow

Synthetic turbulent inflow is generated using the SynInflow tool (SynInflow, 2022), ensuring precise control over turbulence intensity and integral length scales. This approach enables an accurate replication of the experimental inflow characteristics while minimizing spurious pressure fluctuations. To compensate for the numerical decay of turbulence along the domain, the input parameters for SynInflow are carefully calibrated so that both the turbulence intensity and the energy spectrum closely match experimental measurements immediately upstream of the turbine location.

Figure A1a presents the vertical profile of turbulence intensity for the streamwise velocity component, obtained from the numerical simulation at a distance of 2 D upstream of the turbine. The numerical turbulence intensity distribution lies within the experimental range, highlighted in grey, across the entire rotor area. Additionally, Fig. A1b compares the power spectral density of the streamwise velocity component from both numerical and experimental data in a point at the hub height and 2 D upstream of the turbine location. The two spectra exhibit good agreement up to the point where numerical LES filtering becomes noticeable.

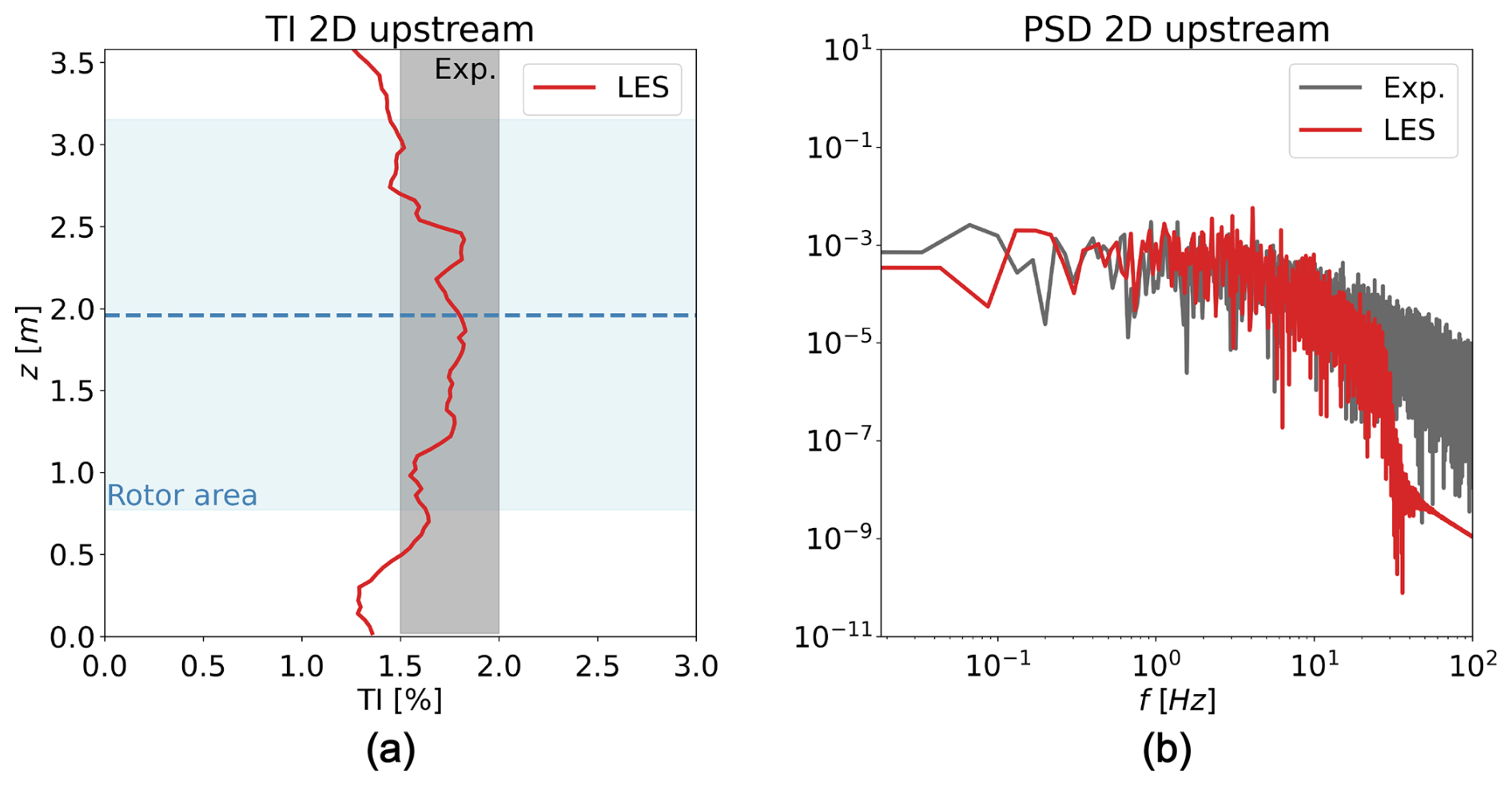

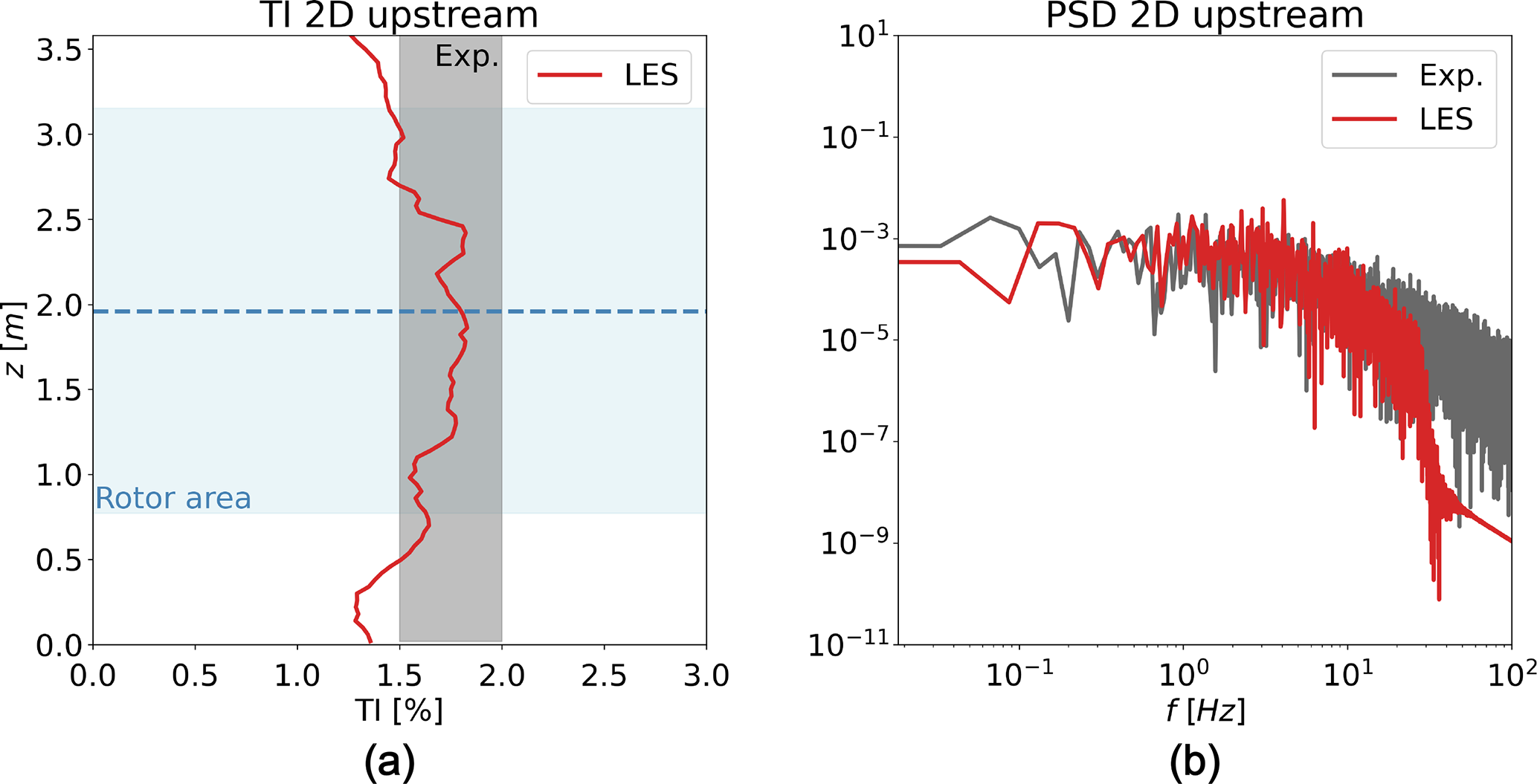

Figure A1 Turbulent inflow validation through numerical and experimental data comparison. (a) Vertical distribution of streamwise turbulence intensity. (b) Power spectrum density of streamwise velocity.

Appendix B: Wake experimental validation in surge and pitch cases.

Figure B1 shows the dimensionless instantaneous axial velocity fields on a horizontal plane for the surge and pitch cases. Overall, no significant qualitative differences are observed in the flow fields between the two conditions.

Figure B2 also presents the experimental validation of the surge and pitch cases in terms of mean velocity profiles and turbulence intensity along horizontal lines. In general, the laminar LES underestimates the turbulence intensity in the wake, which limits wake recovery and leads to larger discrepancies in the mean velocity profile. In contrast, both the URANS and the turbulent LES show better agreement with each other and with the experimental data in terms of mean velocity profiles. As for turbulence intensity, while URANS provides reasonably accurate averaged values, the turbulent LES captures the local distribution more accurately, particularly further downstream of the turbine.

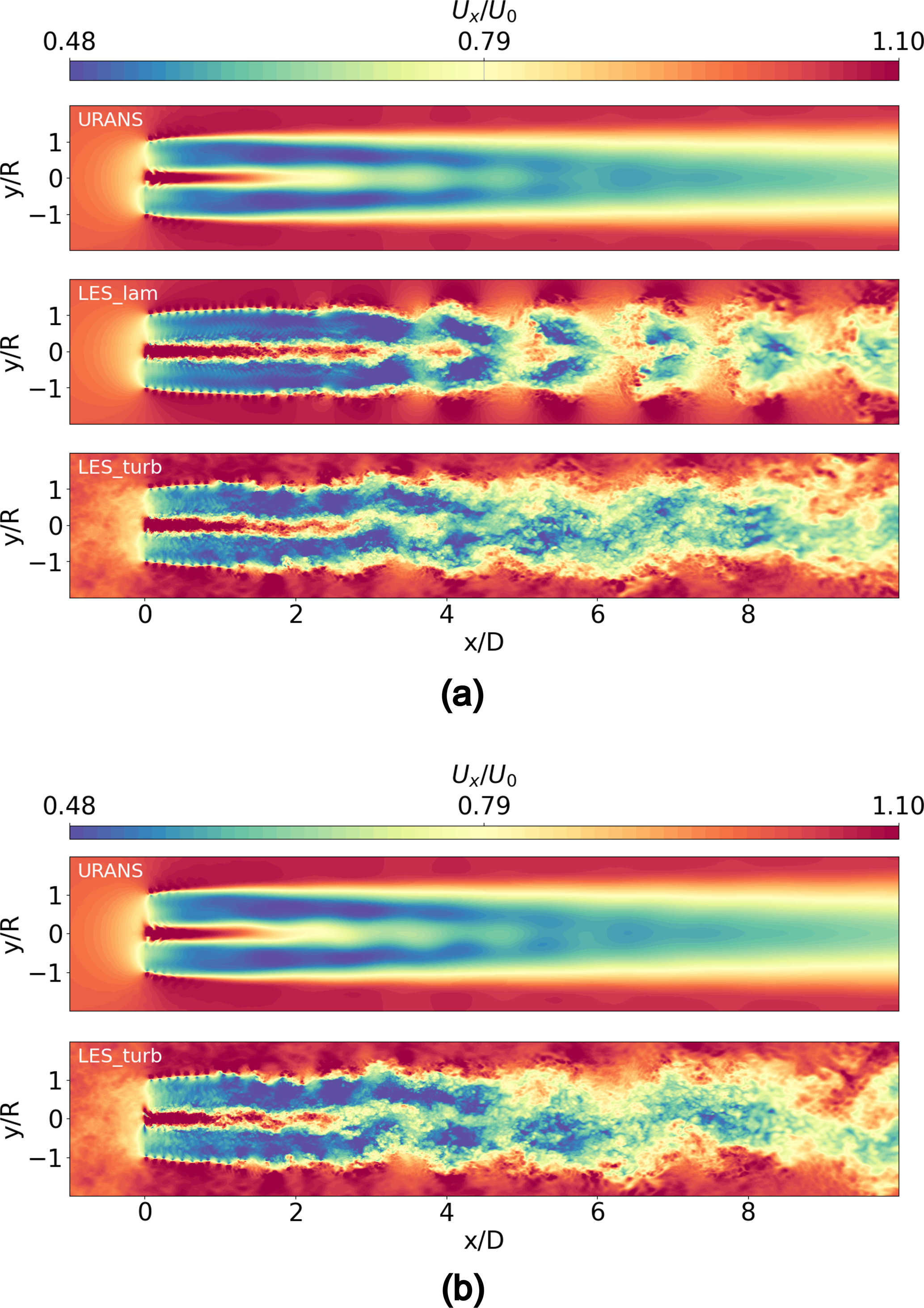

Figure B1 Instantaneous axial velocity field on a horizontal plane. (a) Surge case. (b) Pitch case.

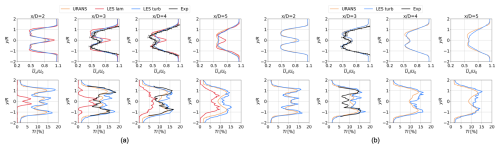

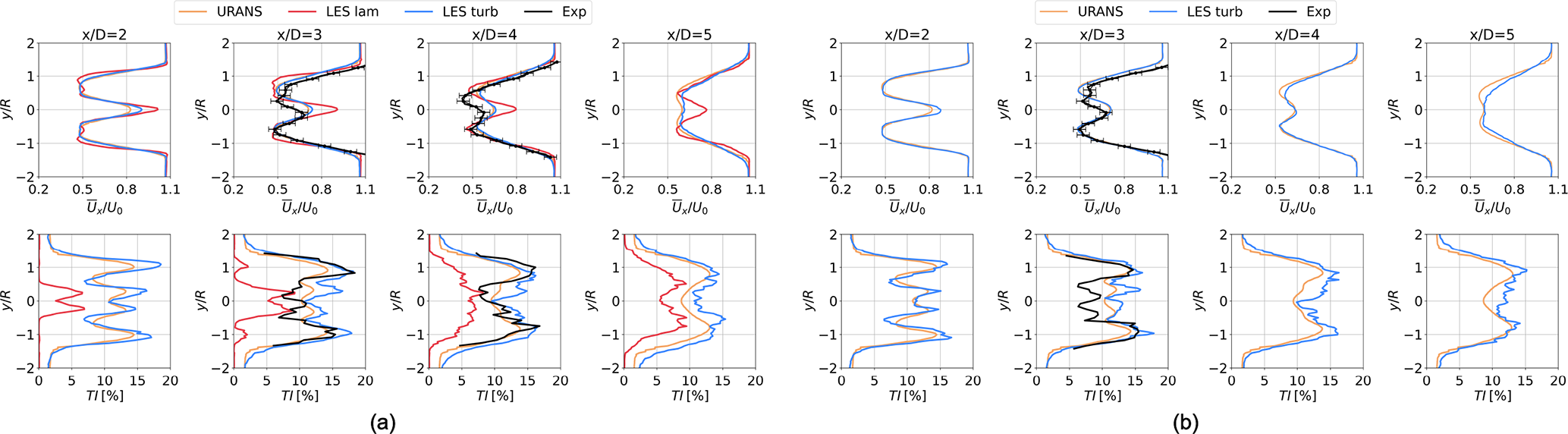

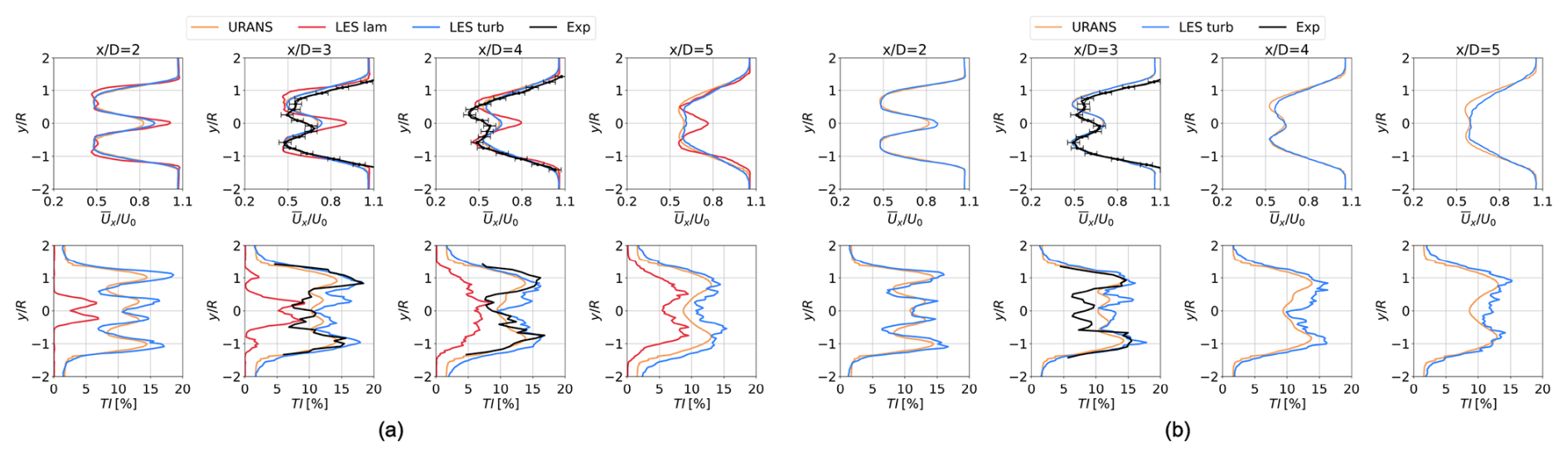

Figure B2 Mean axial velocity and turbulence intensity over four horizontal lines. (a) Surge case. (b) Pitch case.
